6B-24 90-13645--2 495POWER TRIM
IMPORTANT: Note Design 1 and 2 previous.
Design 1 tilt rod assembly
replaces either tilt rod
assembly Either design will fit as a (replace)
cylinder assembly complete.
Design 2 will NOT fit a cylinder originally using a
Design 1 tilt rod assembly.
Memory Pistons for Design 1 and 2 differ also and
must be used only on the cylinder the piston was
removed from.

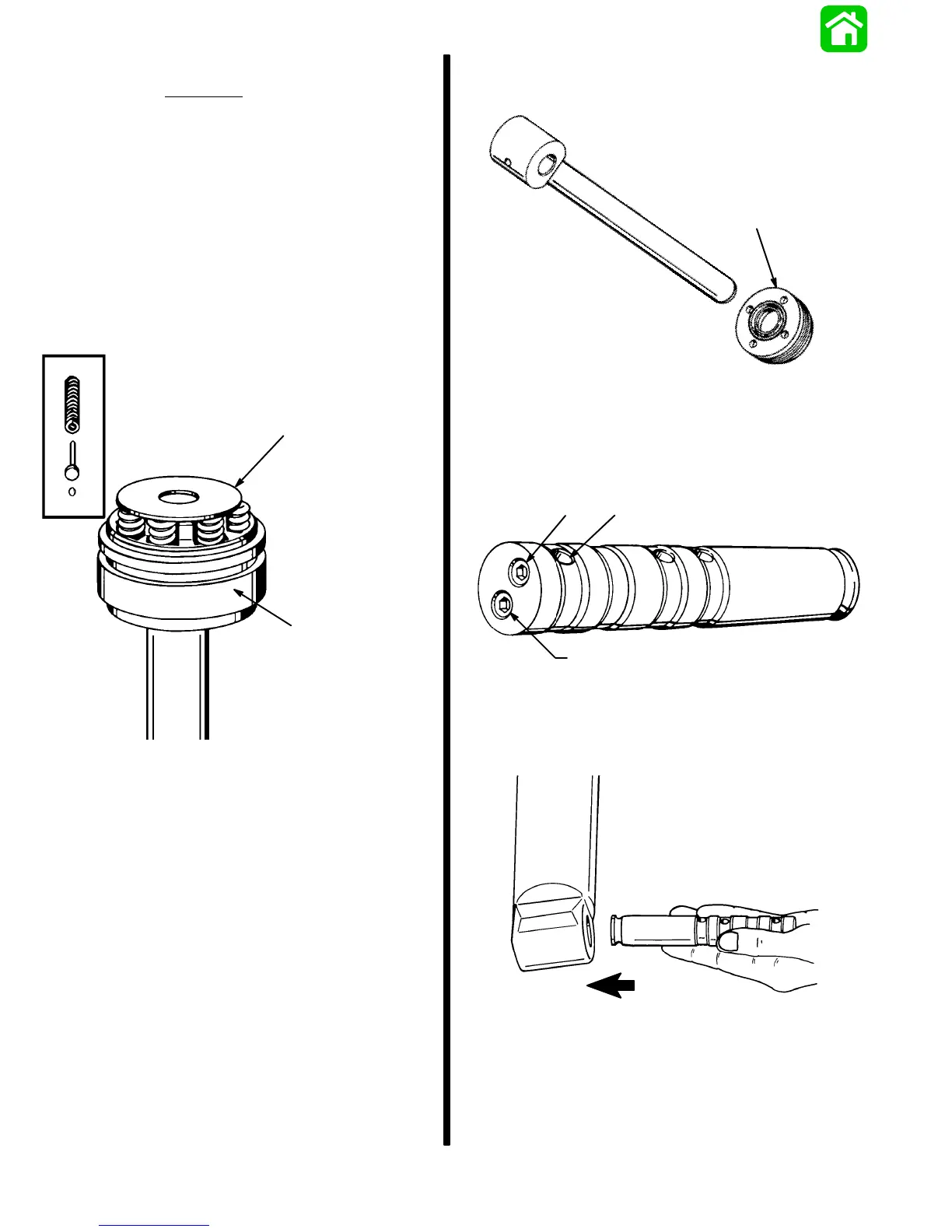

3. Remove washer, check valve assemblies, and
piston.
NOTE
: Check valve held in by roll pin can be cleaned
but not removed.
51363
a
b
c
a - Washer
b - Check Valve Assembly (7)
c - Piston
4. Remove end cap from tilt rod.
51376
a
a - End Cap
5. Remove allen plug.
IMPORTANT: Remove plug from same side as
holes in shaft.
51361
DO NOT REMOVE
a
b
a - Allen Plug
b - Hole in Shaft
6. Lubricate shaft with Quicksilver Power Trim and
Steering Fluid. Insert shaft into cylinder.
51342
