4A-12 90-13645--2 495POWERHEAD

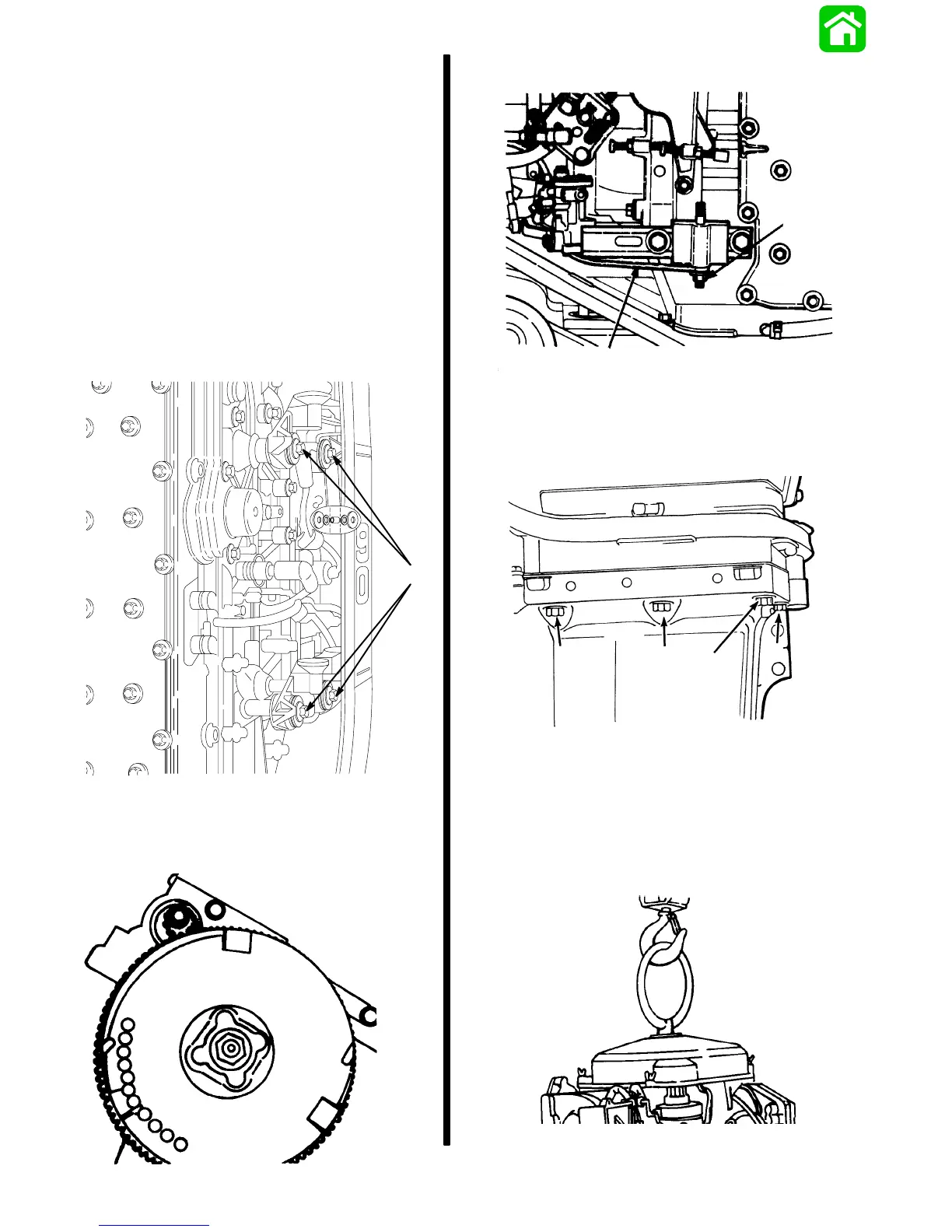

6. Remove Rear Cowl Mounting Bracket from pow-
erhead by removing 4 bolts.
7. Remove Ignition Components, from powerhead,
including starter motor
S Stator Plate and Trigger
S Starter Motor
S Electrical Components Mounting Plate
S Plug Wires
S Temperature Sensor
S Solenoid
NOTE:
Removal of wiring harness and components,
as a unit, is advisable to simplify reassembly.
20368
a
a - Bolts
(Disconnect cable to Power Trim [3 wires])
Temporarily install flywheel with nut as shown.
20346
8. Remove shift arm linkage at stud.
19060
a
b
a - Shift Arm Linkage
b - Stud
9. Remove 8 bolts (3 each side, 2 backside) which
secure powerhead to driveshaft housing.
19070
10. nstall Lifting Eye (91-90455) onto flywheel.
Thread on at least 5 full turns.
11. Twist powerhead or move back and forth to break
gasket between powerhead and exhaust plate.
12. Using a hoist, lift powerhead assembly from drive-
shaft housing.
20031
13. Place powerhead on bench.
