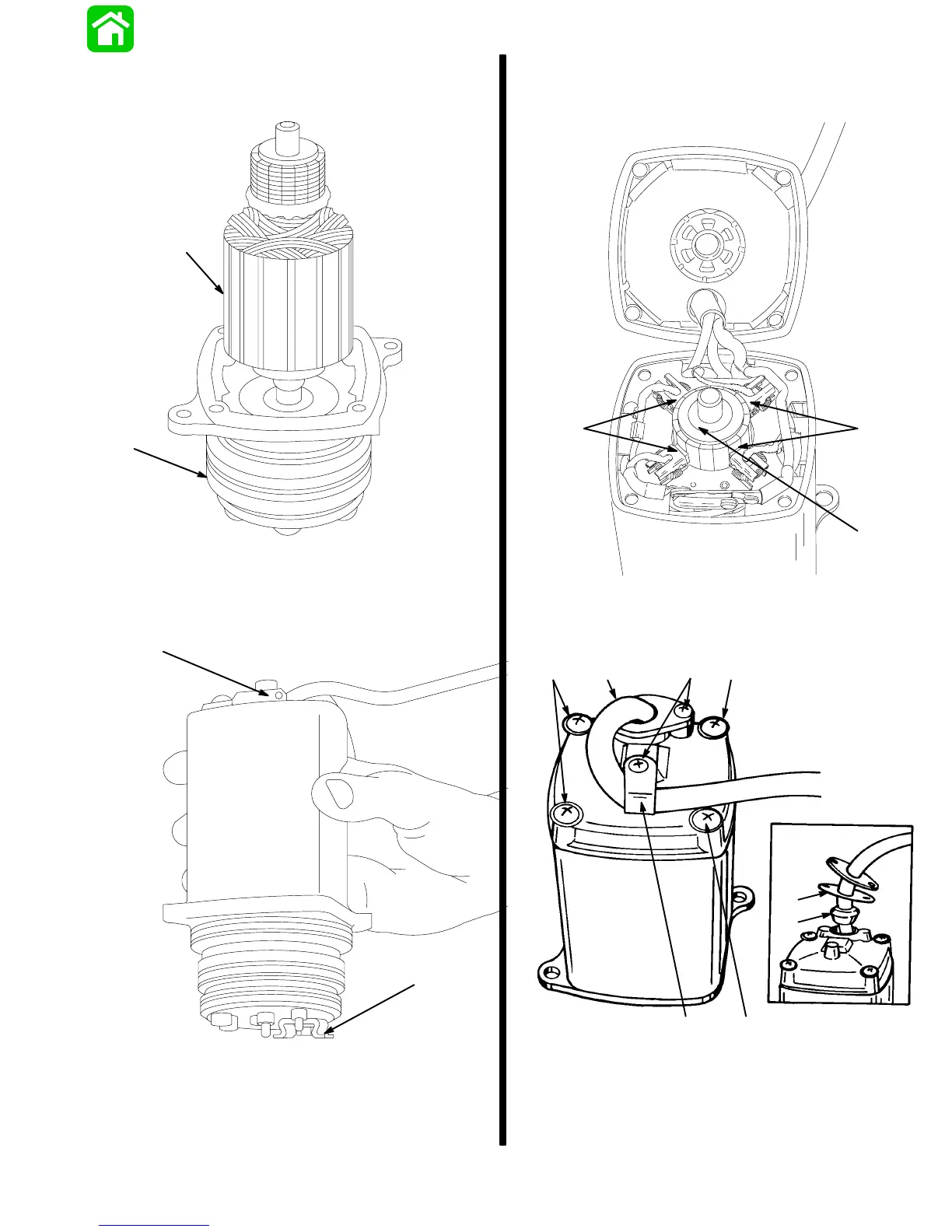

4. Install armature into pump.
Rotate armature to align hex shaft with pump.
18464
a
b
a - Armature
b - Pump
5. Install field and frame assembly onto pump as
shown.
18454
a
b
a - Thermal Overload Switch
b - Rocker Arm
6. Spread brushes; position brushes as shown.
Install thrust washer (if equipped).
18457
a
b
a
a - Brushes
b - Thrust Washer
7. Install end cap and screws.
e
d
c
b
a
51345
aa
b
a - Screw (4)
b - Screw (3)
c - Clamp
d - Gasket
e - Grommet
