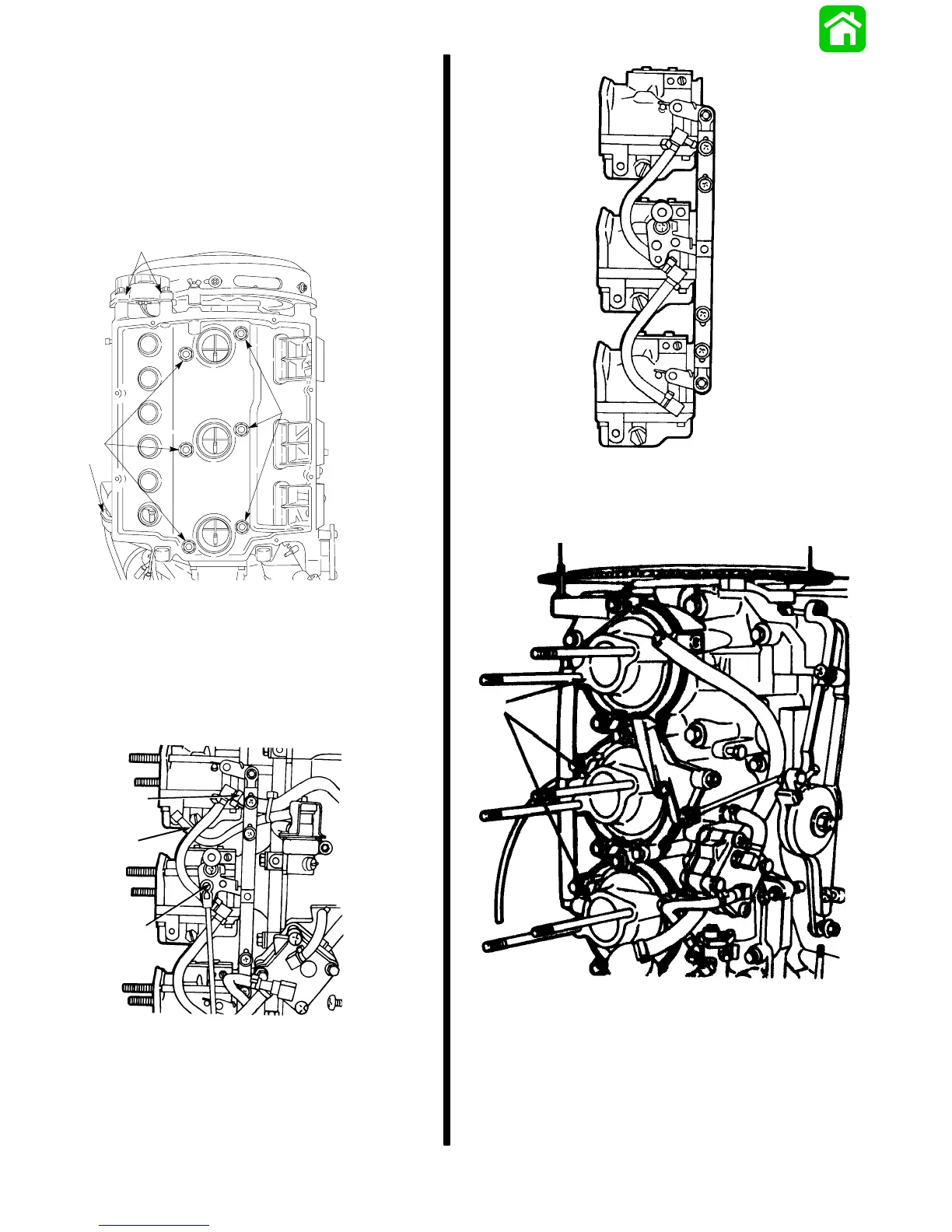

4A-10 90-13645--2 495POWERHEAD
3. Remove 10mm bolt from lower oil tank support
(starboard side of engine, base).
4. Remove 2 (8mm) Bolts from upper oil tank neck
brace.
5. Remove Air Box by removing 6 nuts and pulling
off of carburetor studs.
6. Disconnect Oil Lines - Remove Oil Reservoir.
19097
a
b
c
c
a - Oil Tank Support
b - Bolts (8mm)
c - Nuts (6)
7. Disconnect Throttle Linkage (c).
8. Remove main fuel hose (a), and fuel hose (b). Lift
carburetors off as 1-unit assembly (see next col-
umn).
19093
a
b
c
a - Main Fuel Hose
b - Fuel Enrichment Hose
c - Throttle Linkage
9. Remove Flywheel Cover by removing 3 wing
nuts.
19546
1-unit Removal Of Carburetor Assembly.
10. Remove Intake Manifolds - see below.
19547
a
a - Intake Manifolds
To Next Page
