LOWER UNIT

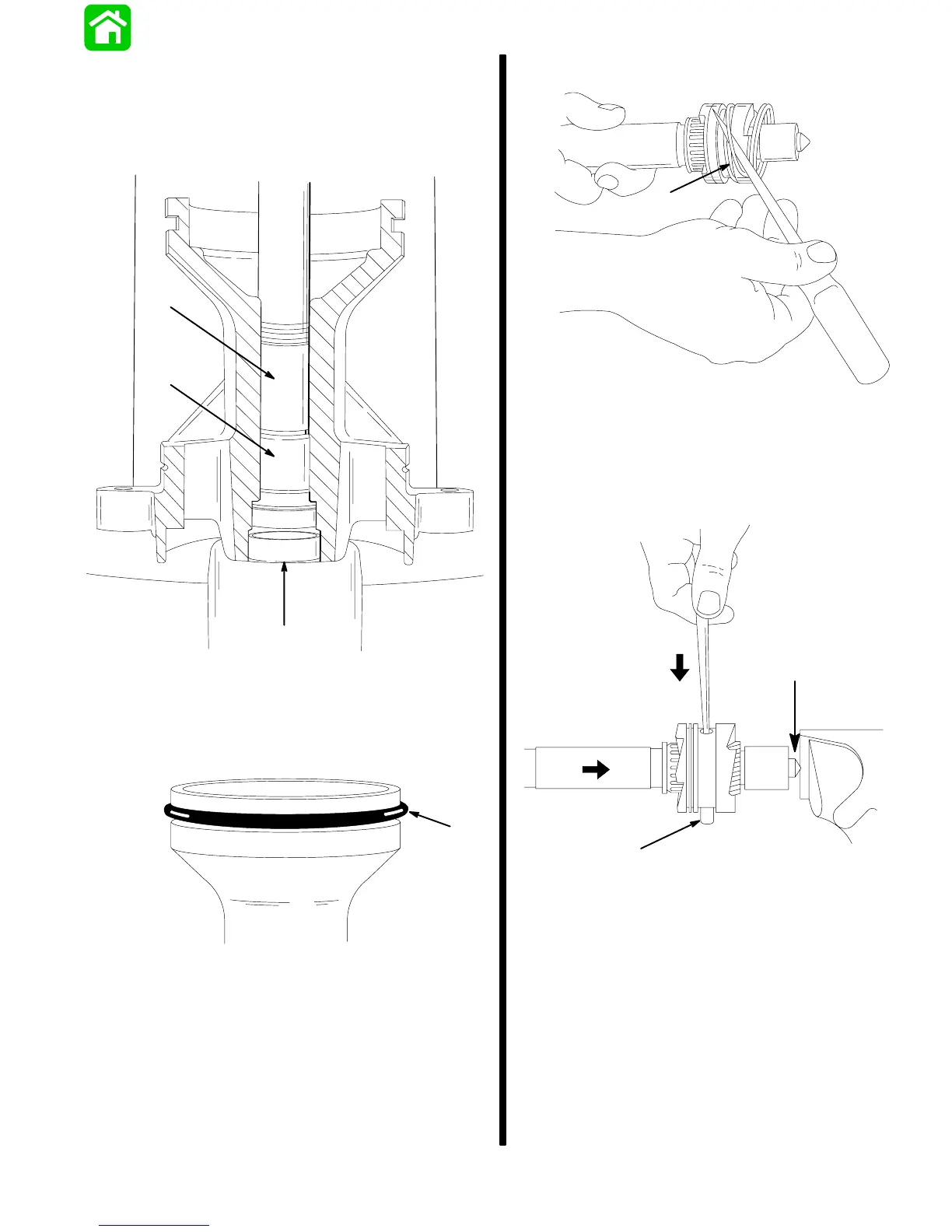

9. If bearing is rusted or does not roll freely, replace
bearing. Remove bearing and oil seals using
Mandrel* (91-36569) and Driver Rod* (91-37323).
Discard oil seals.
* From Bearing Removal and Installation Kit (91-31229A5).
51264
a
b
c
a - Bearing
b - Mandrel (91-26569)
c - Driver Rod (91-37323)
10. Remove (if not removed with bearing in Step 9)
propeller shaft seals and O-ring.
51263
a
a - O-ring
11. Remove spring.
51876
a
a - Spring
12. Apply constant pressure to cam follower to pre-
vent cam follower assembly from ejecting from
propeller shaft while pushing cross pin out of
clutch dog.
51800
a
b
a - Cross Pin
b - Cam Follower
