90-13645--2 1095
5A-21
LOWER UNIT

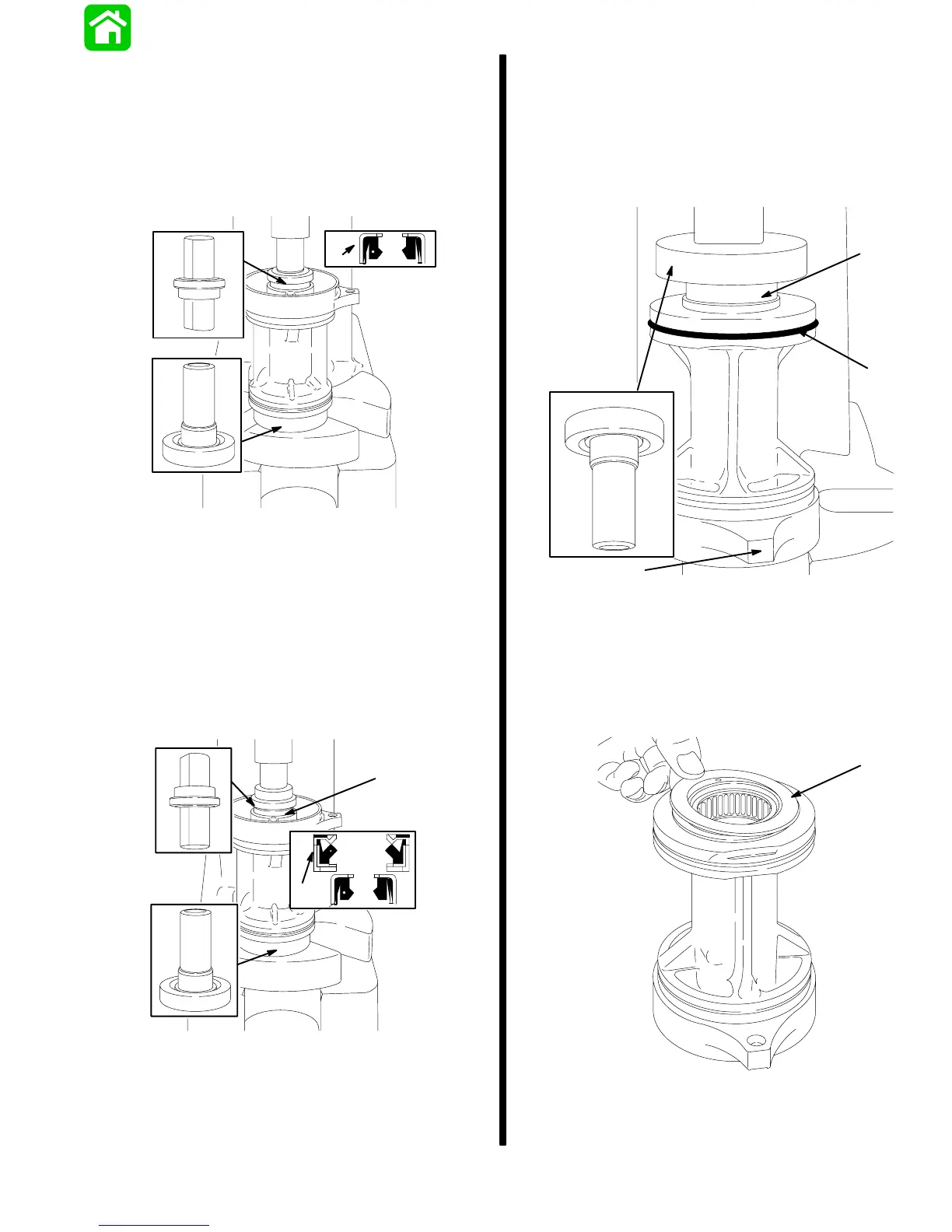

4. Place smaller diameter seal on longer shoulder
of Oil Seal Driver (91-31108) with seal lip away
from shoulder.
5. Protect lip on front side of bearing carrier using
Bearing Installation Tool (91-13945). Apply
Loctite 271 on O.D. of seal. Press seal into carrier
until tool bottoms.
21040
a
b
c
a - Seal
b - Oil Seal Driver (91-31108)
c - Bearing Installation Tool (91-13945)
6. Place larger diameter seal on shorter shoulder of
Oil Seal Driver (91-31108) with seal lip
toward shoulder.
7. Protect lip on front side of bearing carrier using
Bearing Installation Tool (91-13945). Apply
Loctite 271 on O.D. of new seal. Press seal into
carrier until tool bottoms.
21041
a
b
c
a
a - Seal
b - Oil Seal Driver (91-31108)
c - Bearing Installation Tool (91-13945)
8. Install O-ring.
9. Lubricate O-ring with 2-4-C w/Teflon. Lubricate
seal lips with 2-4-C w/Teflon (92-825407A12). Lu-
bricate outside diameter of bearing with a light
coating of 2-4-C w/Teflon.
10. Press bearing into carrier until tool bottoms.
19163
a
b
c
d
a - O-ring
b - Bearing, Numbered Side
Toward Tool
c - Seal Lips
d - Bearing Installation Tool
(91-13945)
11. Install thrust washer. Coat thrust washer with
Quicksilver Gear Lubricant (92-13783A24).
19167
a
a - Thrust Washer
To Next Page
