Moog Animatics SmartMotor™ Developer's Guide,Rev. L
Page 206 of 909
Monitoring the SmartMotor Status
NOTE: In addition to the software information in this section, there is context-
sensitive help available within the SMI software interface, which is accessed by
pressing the F1 key or selecting Help from the SMI software main menu.
The Motor View tool is used to monitor the status of the SmartMotor. To see the status of the
connected motor, select:
Tools > Motor View > double-click the desired motor

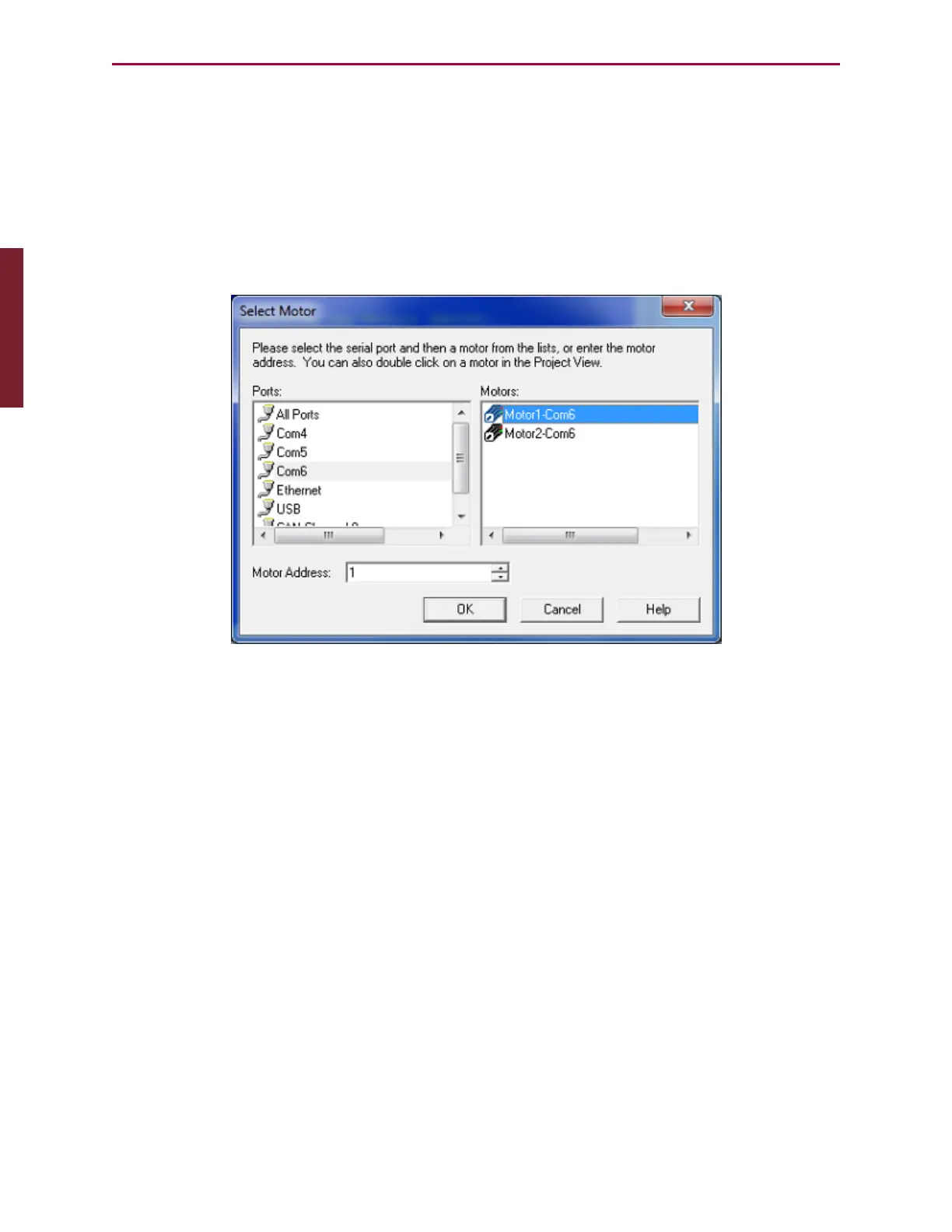

Selecting a Motor
After the Motor View window appears, click Poll. The status of the selected motor is updated in
the window, as shown in the following figure.
NOTE: The Motor View window provides a view into the status of a SmartMotor.
Part 1: Programming: Monitoring the SmartMotor Status
