Moog Animatics SmartMotor™ Developer's Guide,Rev. L
Page 86 of 909
SMIOptions
NOTE: In addition to the software information in this section, there is context-
sensitive help available within the SMI software interface, which is accessed by
pressing the F1 key or selecting Help from the SMI software main menu.
The SMI software has a variety of options that can be customized through the Options window.
It contains tabs and selections for customizing the Scanner, Editor, Terminal and more.
To open the Options window, select:
Tools > Options

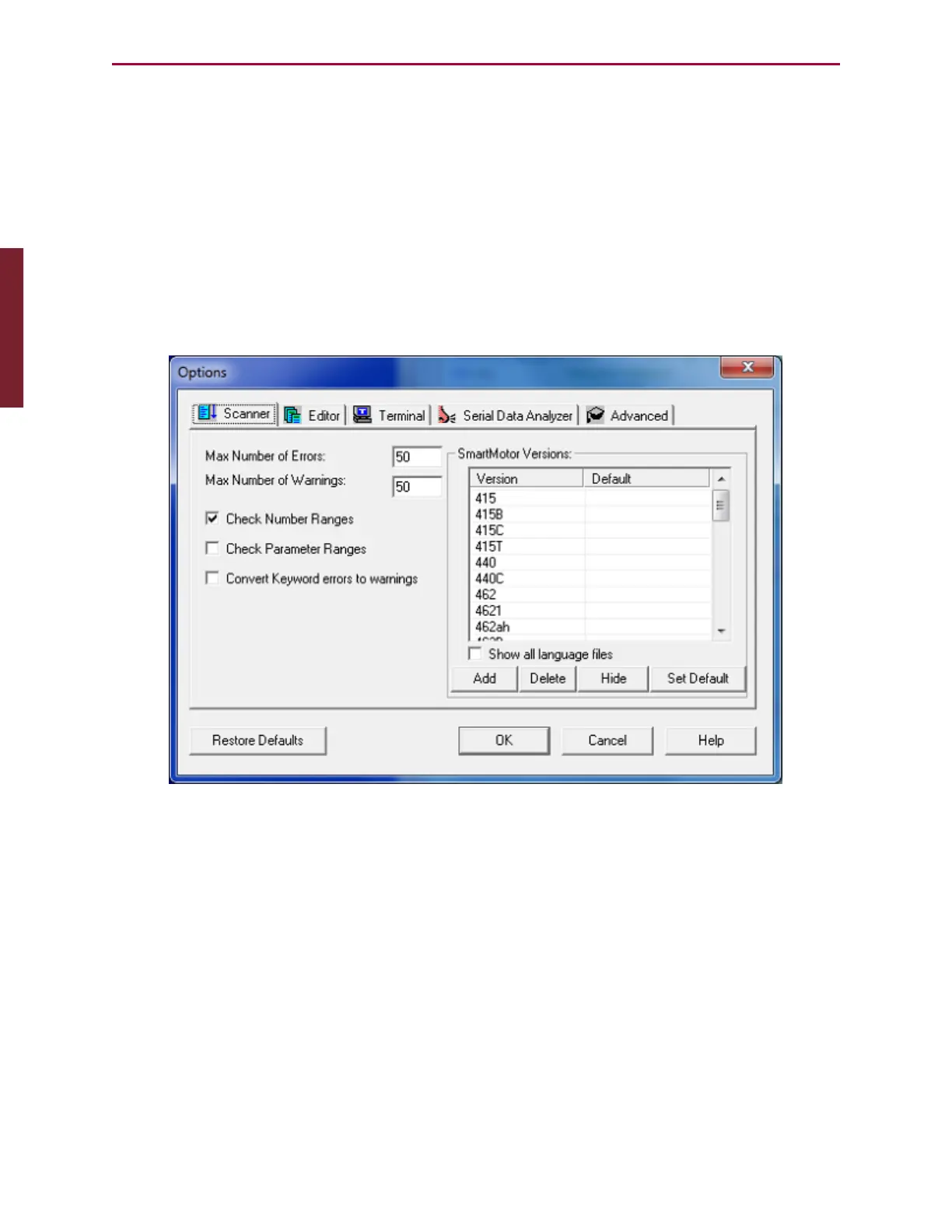

The Options window opens, as shown in the following figure.
Options Window
To use the Options window:
l Click a tab to select the options you wish to edit.
l
Consider the default firmware version. Because different SmartMotor firmware versions
have subtle differences, the program scanner needs to know which firmware is being
used to distinguish between supported and unsupported commands.
l
Other options, such as Editor syntax colors, deal with user preferences.
l After you have finished editing options, click OK to close the window and save your
changes.
Part 1: Programming: SMIOptions
