Moog SmartMotor User Manual

Part 1: Programming
Moog Animatics SmartMotor™ Developer's Guide,Rev. L
Page 59 of 909

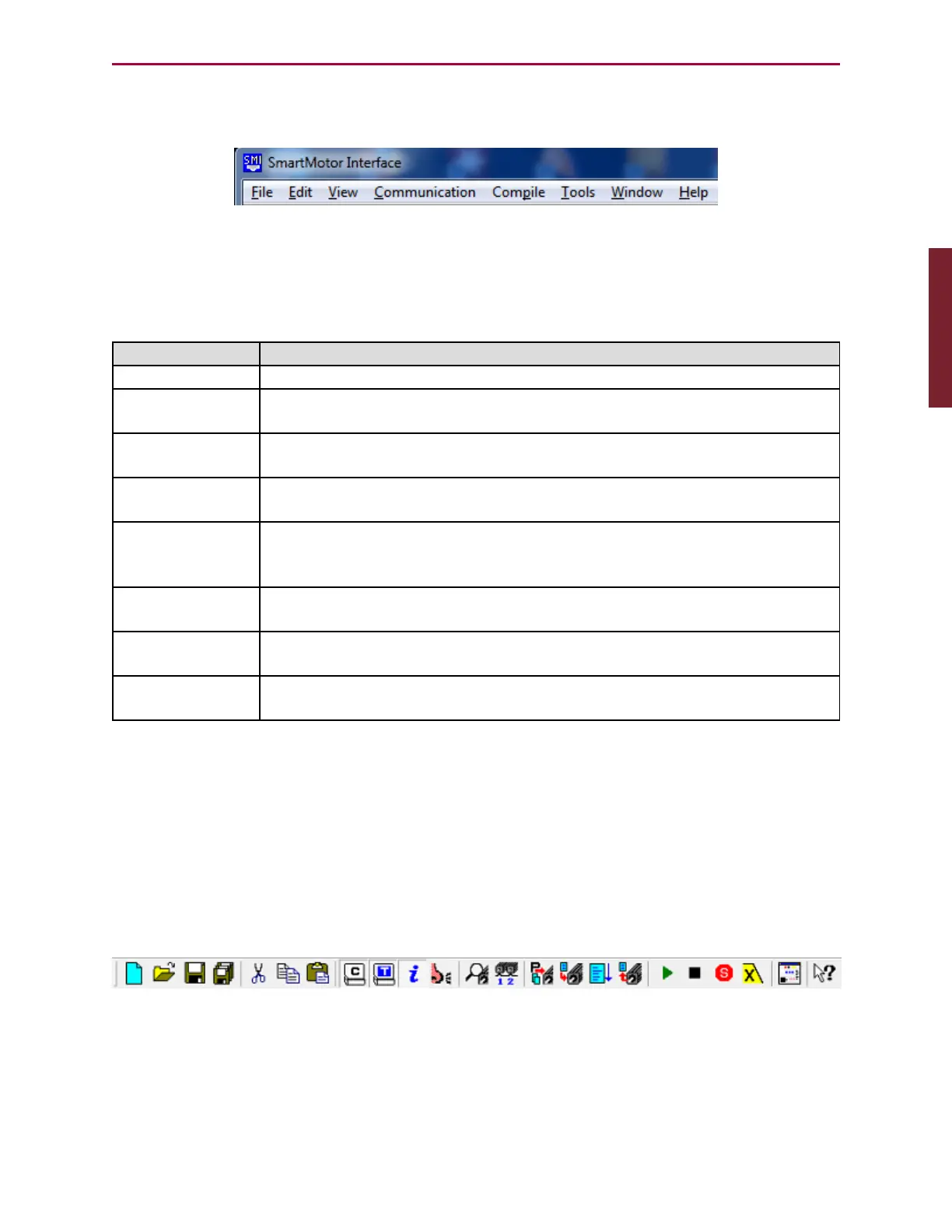

The SMI software menu bar provides access to all SMI software features, which are grouped
by functional area.
The Menu Bar
NOTE: Frequently-used features are also available from the SMI software's
Toolbar. For details, see Toolbar on page 59.
Each functional area is described in the following table.
Menu Description
File Access standard file commands (New, Open, Close, etc.).
Edit
Edit an SMI program (Cut, Copy, Paste, etc.). Note that an SMI Program
Editor window must be open to use these features.
View
Show or hide windows or items in the SMI software interface (Toolbar,
Status bar, Terminal window, etc.).
Communication
Control communications with motors (Settings, Detect Motors, Upload
Program, Communication Setup Wizard, etc.).
Compile
Scan a program for errors and compile SMX or project files (Scan for
errors, Compile Downloadable SMX file, Compile and Transmit SMXfile,
Compile Project, etc.).
Tools
Access SmartMotor tools, monitoring features and options (Macro,
Tuner, Motor View, Monitor View, Options, etc.)
Window
Control the appearance of the SMI software windows (Cascade, Tile Hori-
zontally/Vertically, Arrange Icons, etc.).
Help
Access online help features of the SMI software (Contents, Index,
SmartMotor Programmer's Guide, etc.).
Each menu item is described in detail in the SMI software's online help file, which can be
accessed from the Help menu or by pressing the F1 key.
Toolbar
NOTE: In addition to the software information in this section, there is context-
sensitive help available within the SMI software interface, which is accessed by
pressing the F1 key or selecting Help from the SMI software main menu.
The SMI software toolbar provides quick access to the SMI software's frequently-used
features. Each item is represented by an icon, as shown in the following figure.
The Toolbar
NOTE: The entire set of SMI software features can be accessed from the menu bar.
For details, see Menu Bar on page 58.
Part 1: Programming: Toolbar
