Each item is described in detail in the SMI software's online help file, which can be accessed
from the Help menu or by pressing the F1 key.
Configuration Window
NOTE: In addition to the software information in this section, there is context-
sensitive help available within the SMI software interface, which is accessed by
pressing the F1 key or selecting Help from the SMI software main menu.
The Configuration window shows the current configuration and allows access to specific ports
and motors. The Configuration window is essential to keeping multiple SmartMotor systems
organized, especially in the context of developing multiple programs and debugging their
operation.
The Configuration window is typically visible when the SMI software opens. If the window has
been closed, you can open it from the SMI software main menu by selecting:
View > Configuration
NOTE: When the window is visible, the menu item will have a check mark next to
it.

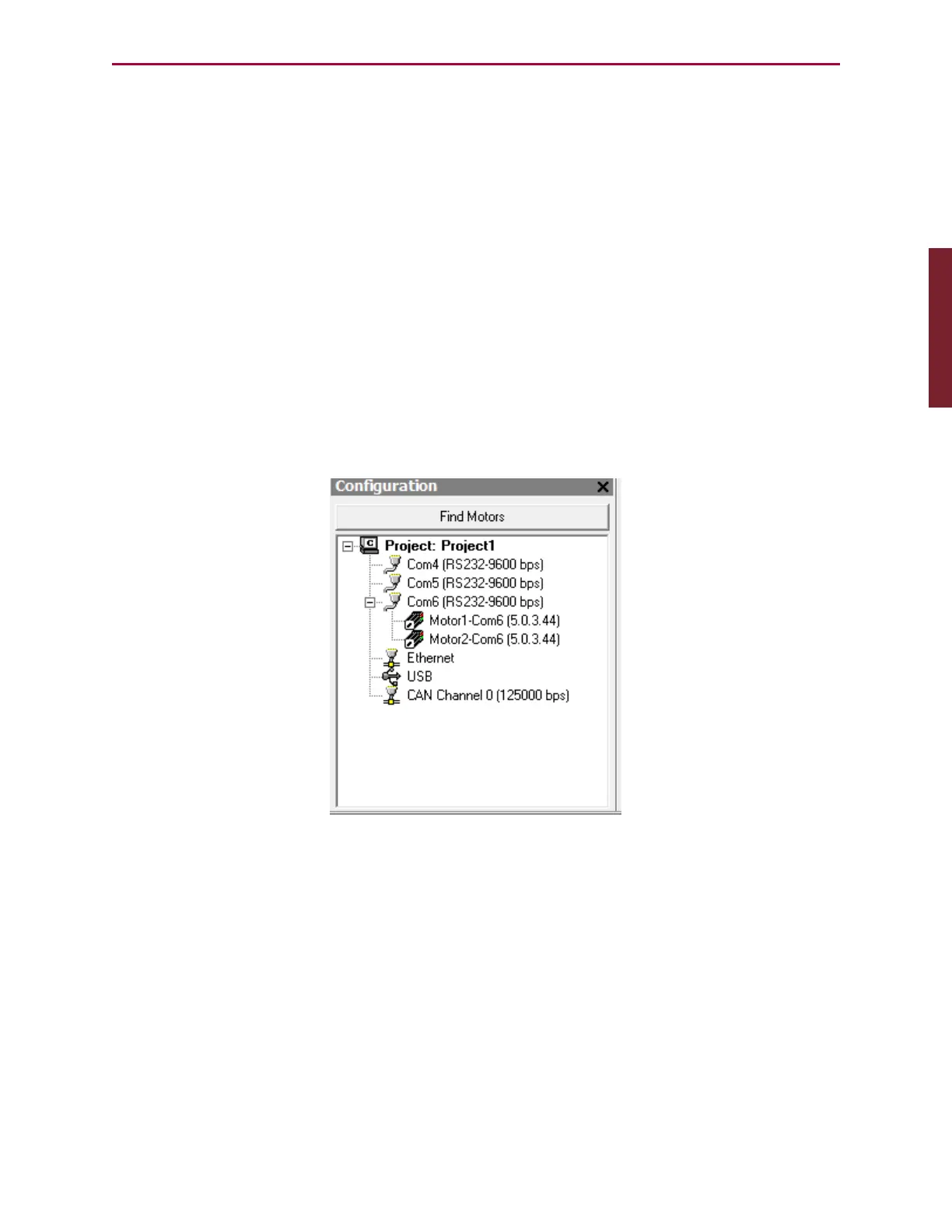

Configuration Window
The Configuration window is essential to keeping multiple SmartMotor systems organized.
To use the Configuration window:
l
Click Find Motors to analyze your system, or
Right-click on an available port to display a menu, and select either "detect motors" or
"address motors" to find motors attached to that port.
