5 - 22 WiNG 5.6 Access Point System Reference Guide
5.2.5.1 Ethernet Port Configuration
 Profile Interface Configuration
Displays the physical port reporting runtime data and statistics. The following ports are available depending on model:
• AP6511 - fe1, fe2, fe3, fe4, up1
• AP6521 - GE1/POE (LAN)
• AP6522/AP6522M - GE1/POE (LAN)
• AP6532 - GE1/POE (LAN)
• AP6562 - GE1/POE (LAN)
• AP7131 - GE1/POE (LAN), GE2 (WAN)
• AP7161 - GE1/POE (LAN), GE2 (WAN)
• AP7181 - GE1/POE (LAN), GE2 (WAN)
• AP8122/AP8132/AP8232 - GE1/POE (LAN), GE2 (WAN)
To define a profile’s Ethernet port configuration:
1. Select the Configuration tab from the Web UI.
2. Select Devices.
3. Select System Profile from the options on left-hand side of the UI.
4. Expand the Interface menu and select Ethernet Ports.

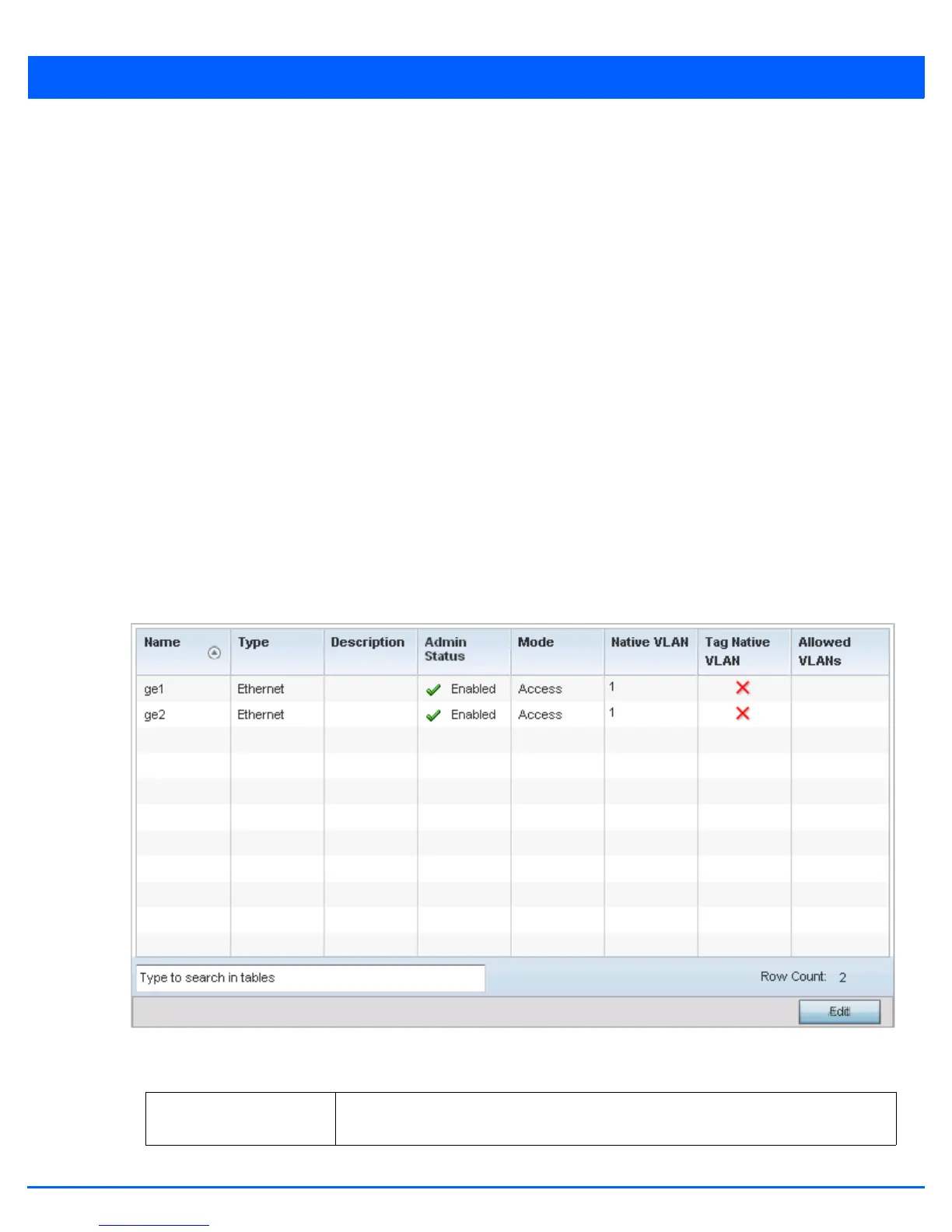

Figure 5-13 Profile Interfaces - Ethernet Ports screen
5. Refer to the following to assess port status, mode and VLAN configuration:
Name Displays the physical port name reporting runtime data and statistics. Supported ports
vary depending on model.
