4 - 10 WiNG 5.6 Access Point System Reference Guide
4.2 Network View
Dashboard
The Network View displays device topology association between a selected access point, its RF Domain and its connected
clients.
Access points and clients can be selected and viewed using various color schemes in respect to neighboring access points,
connected devices and performance criteria. Display options can be utilized to review device performance and utilization, as
well as the RF band, channel and vendor. For more information, see Network View Display Options on page 4-11.
To review a device’s Network Topology, select Dashboard > Network View.

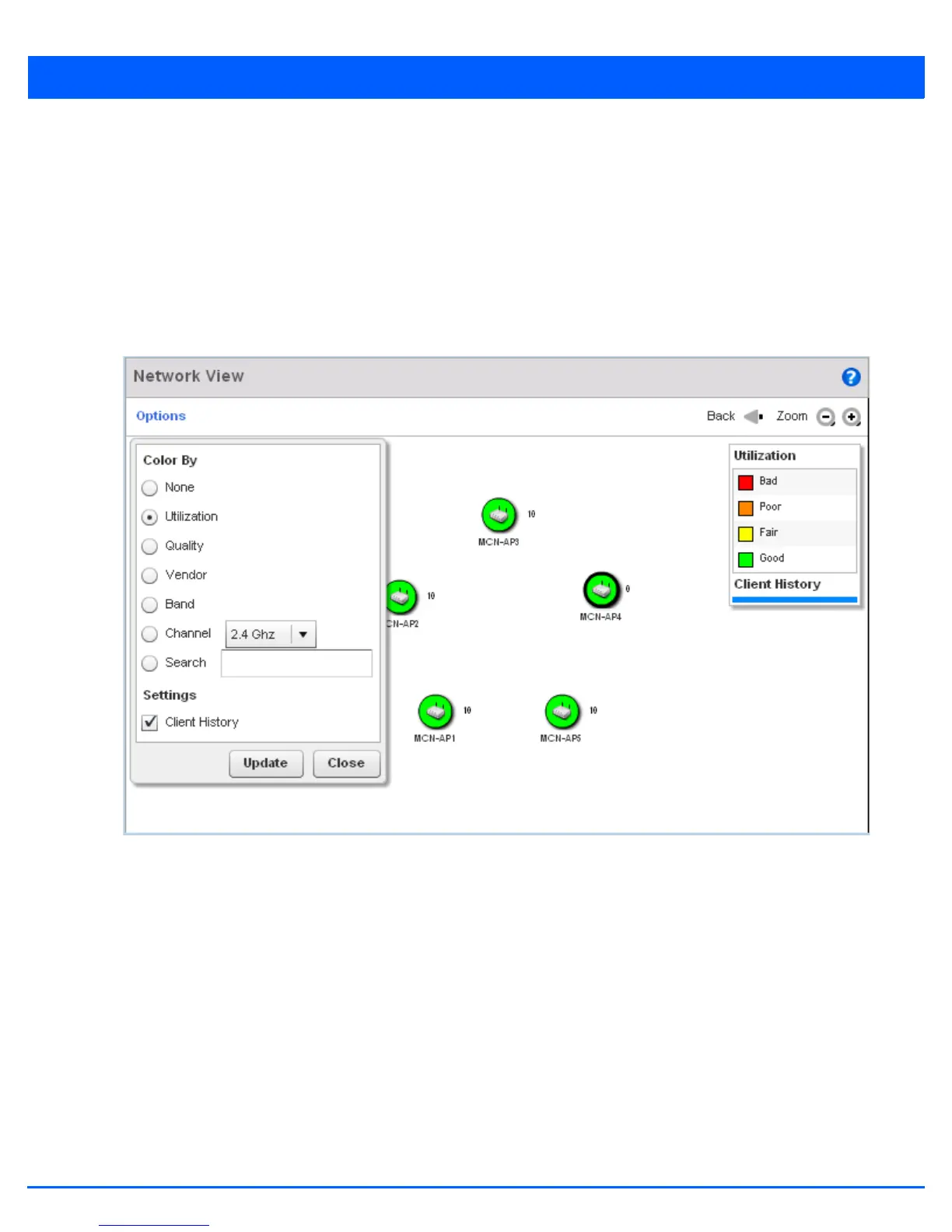

Figure 4-12 Network View Topology
The left-hand side of the Network View screen contains an expandable System Browser where access points can be selected
and expanded to display connected clients. Navigate the System Browser to review device connections within the access point
managed network. Many of these peer access points are available for connection to access points in Virtual Controller AP
mode.
