2.2.10 Device Icons

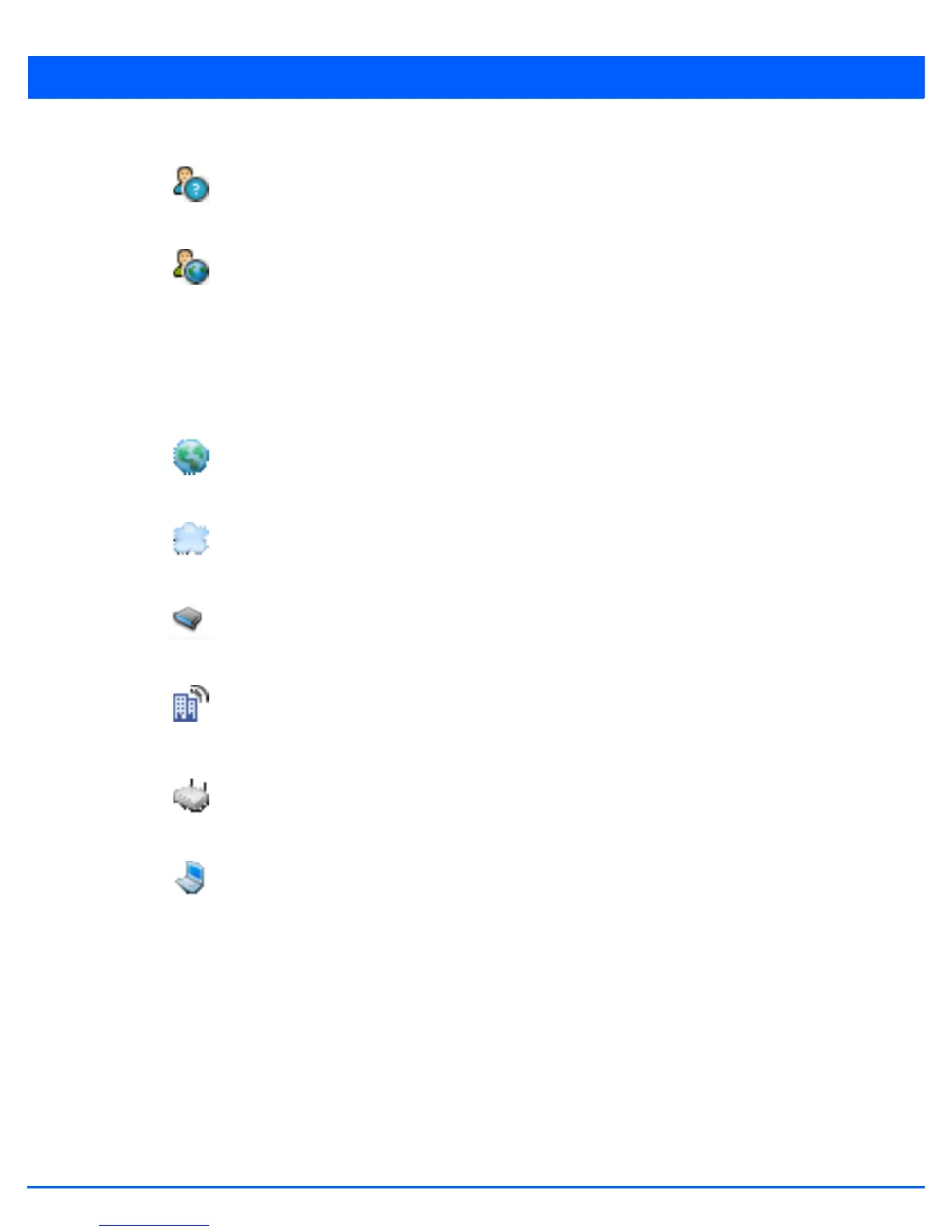

Glossary of Icons Used
The following icons indicate the different device types managed by the system:
Help Desk – Indicates help desk privileges. A help desk user is allowed to use
troubleshooting tools like sniffers, execute service commands, view or
retrieve logs and reboot an access point.
Web User – Indicates a Web user privilege. A Web user is allowed accessing
the access point’s Web user interface.
System – This icon indicates the entire WiNG supported system and all of its
members including wireless controller, service platforms, and access points
that may be interacting at any one time.
Cluster – This icon indicates a cluster. A cluster is a set of access points that
work collectively to provide redundancy and load sharing amongst its
members.
Service Platform – This icon indicates an NX45xx, NX65xx or NX9000 series
service platform that’s part of the managed network
RF Domain - This icon indicates a RF Domain. RF Domains allow
administrators to assign configuration data to multiple devices deployed in a
common coverage area, such as in a floor, a building or a site. Each RF Domain
also contains policies that can determine a Smart RF or WIPS configuration.
Access Point – This icon indicates any access point that is a part of the
network.
Wireless Client – This icon indicates any wireless client connected within the
access point managed network.
