13.3.9.1 Status
Radios
Use the Status screen to review access point radio stats in detail. Use the screen to assess radio type, operational state,
operating channel and current power to assess whether the radio is optimally configured.
To view access point radio statistics:
1. Select the Statistics menu from the Web UI.
2. Select System from the navigation pane (on the left-hand side of the screen). Expand a RF Domain and select one of its
connected access points.
3. Expand the Radios menu item.
4. Select Status.

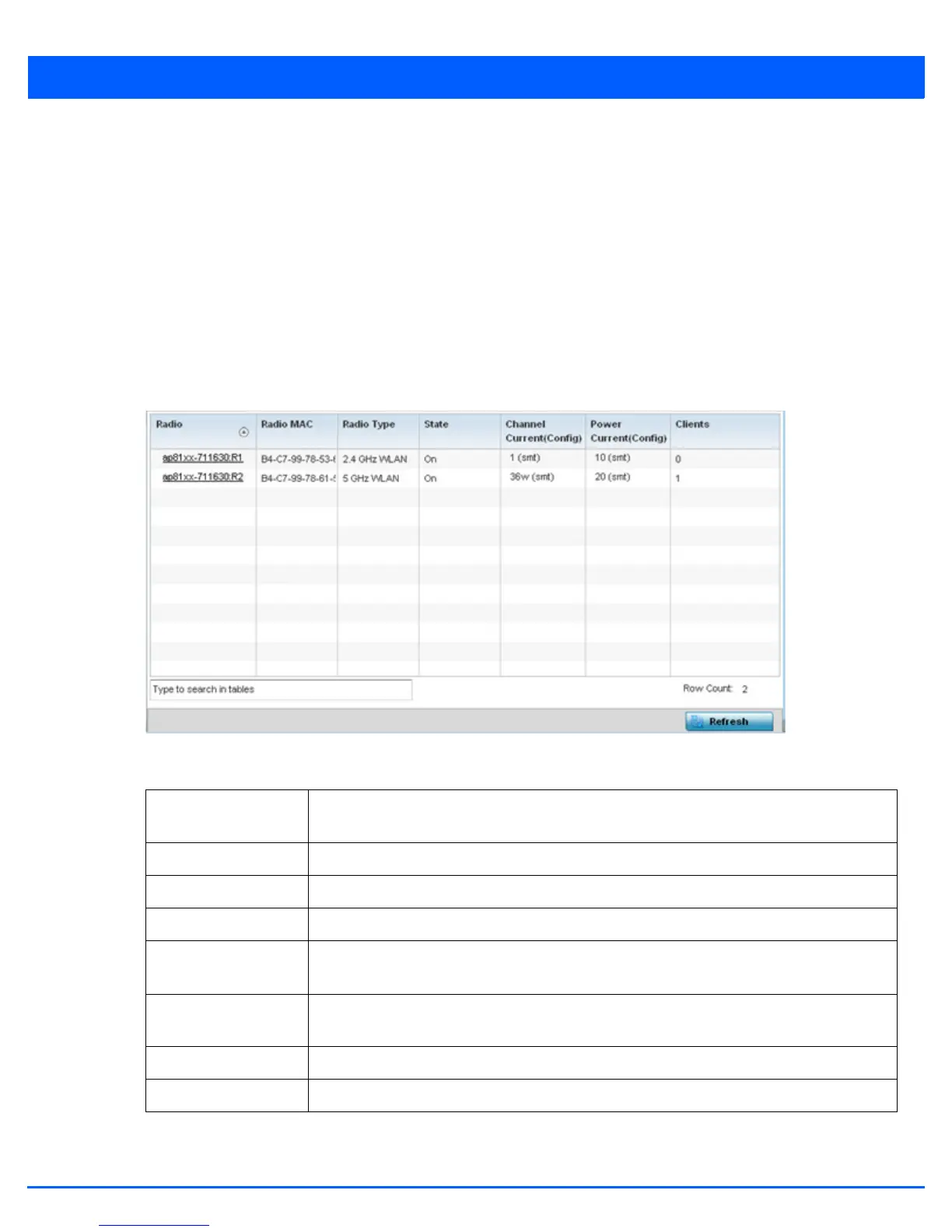

Figure 13-44 Access Point - Radio Status screen
The radio Status screen provides the following information:
Radio Displays the name assigned to the radio as its unique identifier. The name displays in the form
of a link that can be selected to launch a detailed screen containing radio throughout data.
Radio MAC Displays the factory encoded hardware MAC address assigned to the radio.
Radio Type Displays the radio as either supporting the 2.4 or 5 GHZ radio band.
State Lists a radio’s On/Off operational designation.
Channel Current
(Config)
Displays the configured channel each listed radio is set to transmit and receive on.
Power Current
(Config)
Displays the configured power each listed radio is using to transmit and receive.
Clients Displays the number of connected clients currently utilizing the listed access point radio.
Refresh Select the Refresh button to update the screen’s statistics counters to their latest values.
