2.2.8 Access Type Icons
 Glossary of Icons Used

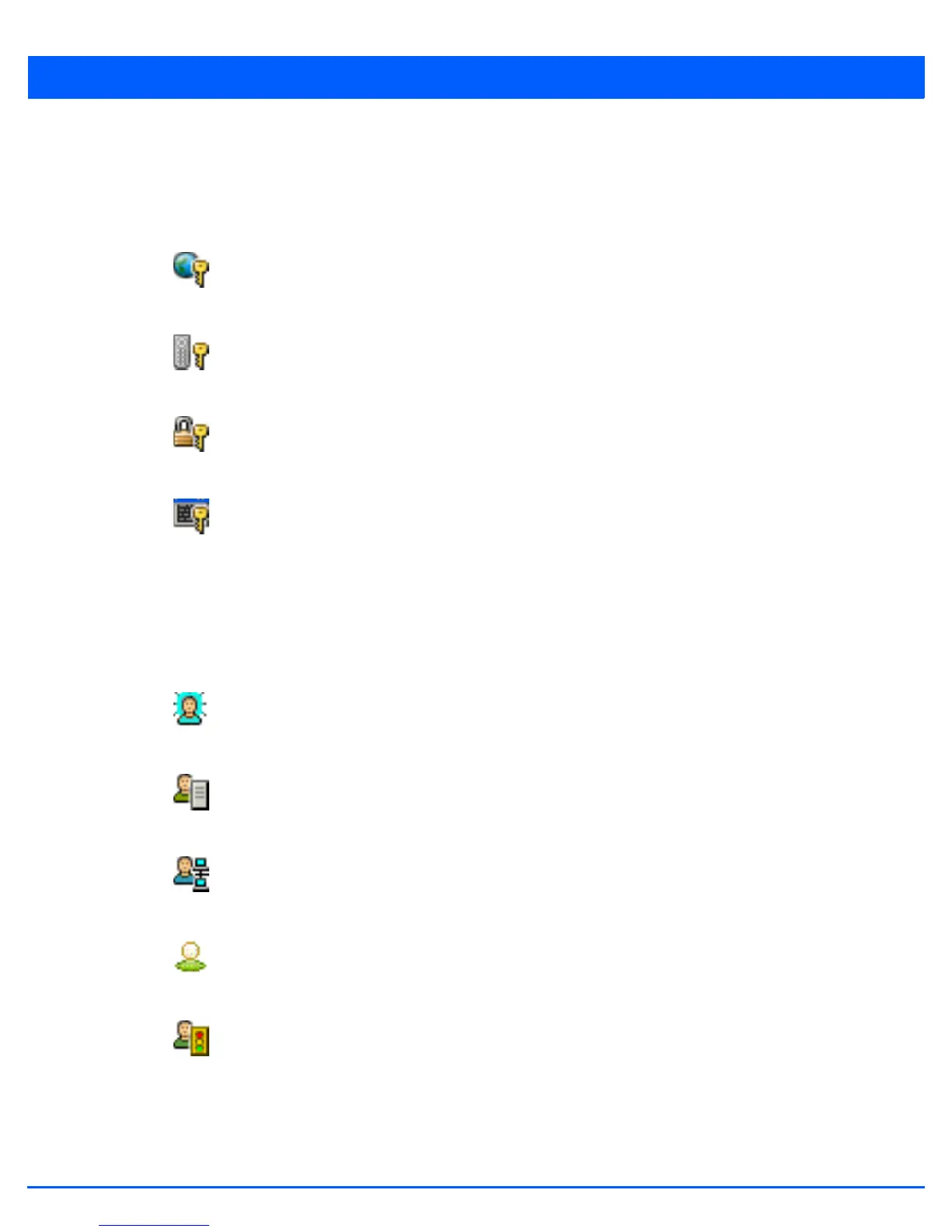

The following icons display a user access type:
2.2.9 Administrative Role Icons
 Glossary of Icons Used
The following icons identify the different administrative roles allowed on the system:
Web UI – Defines a Web UI access permission. A user with this permission
is permitted to access an associated device’s Web UI.
Telnet – Defines a TELNET access permission. A user with this permission is
permitted to access an access point using TELNET.
SSH – Indicates a SSH access permission. A user with this permission is
permitted to access an access point using SSH.
Console – Indicates a console access permission. A user with this permission
is permitted to access the access point using the device’s serial console.
Superuser – Indicates superuser privileges. A superuser has complete access
to all configuration aspects of the access point to which they are connected.
System – Indicates system user privileges. A system user is allowed to
configure some general settings like boot parameters, licenses, auto install,
image upgrades etc.
Network – Indicates network user privileges. A network user is allowed to
configure all wired and wireless parameters, like IP configuration, VLANs,
L2/L3 security, WLANs, radios etc.
Security – Indicates security user privileges. A security level user is allowed
to configure all security related parameters.
Monitor – Indicates a monitor role. This role provides no configuration
privileges. A user with this role can view all system configuration but cannot
modify them.
