13.2.8.3 Traffic Statistics
The Traffic Statistics screen displays transmit and receive data as well as data rate and packet drop and error information
for RF Domain member radios. Individual RF Domain member radios can be selected and to information specific to that radio
as troubleshoot requirements dictate.
1. Select the Statistics menu from the Web UI.
2. Select a RF Domain from under the System node on the top, left-hand side, of the screen.
3. Expand Radios from the RF Domain menu and select Traffic Statistics.

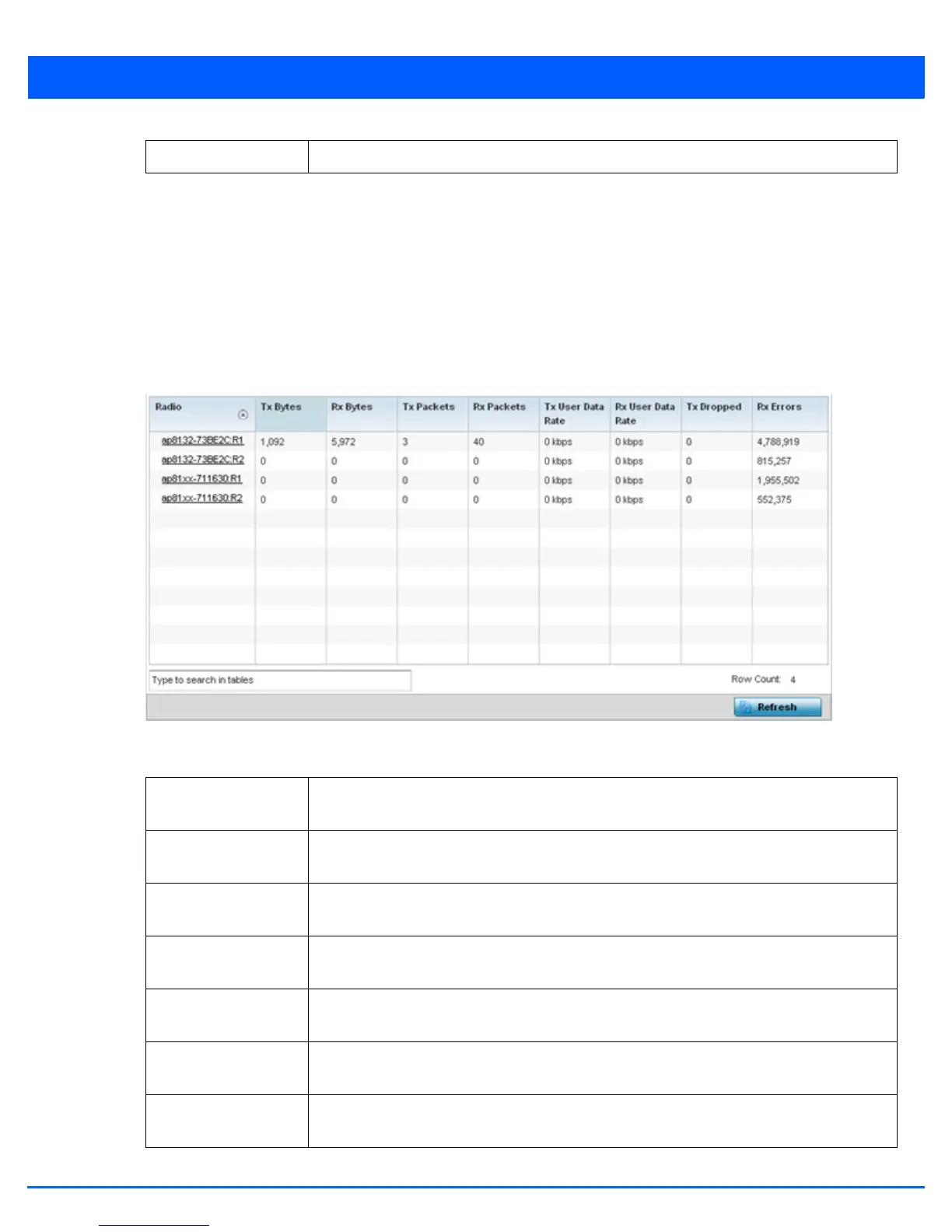

Figure 13-19 RF Domain - Radio Traffic Statistics screen
The Radio Traffic screen displays the following:
Refresh Select the Refresh button to update the statistics counters to their latest values.
Radio Displays the name assigned to each listed RF Domain member access point radio. Each name
displays as a link that can be selected to display radio information in greater detail.
Tx Bytes Displays the total number of bytes transmitted by each RF Domain member access point radio.
This includes all user data as well as any management overhead data.
Rx Bytes Displays the total number of bytes received by each RF Domain member access point radio.
This includes all user data as well as any management overhead data.
Tx Packets Displays the total number of packets transmitted by each RF Domain member access point
radio. This includes all user data as well as any management overhead packets.
Rx Packets Displays the total number of packets received by each RF Domain member access point radio.
This includes all user data as well as any management overhead packets.
Tx User Data Rate Displays the rate (in kbps) user data is transmitted by each RF Domain member access point
radio. This rate only applies to user data and does not include any management overhead.
Rx User Data Rate Displays the rate (in kbps) user data is received by each RF Domain member access point radio.
This rate only applies to user data and does not include any management overhead.
