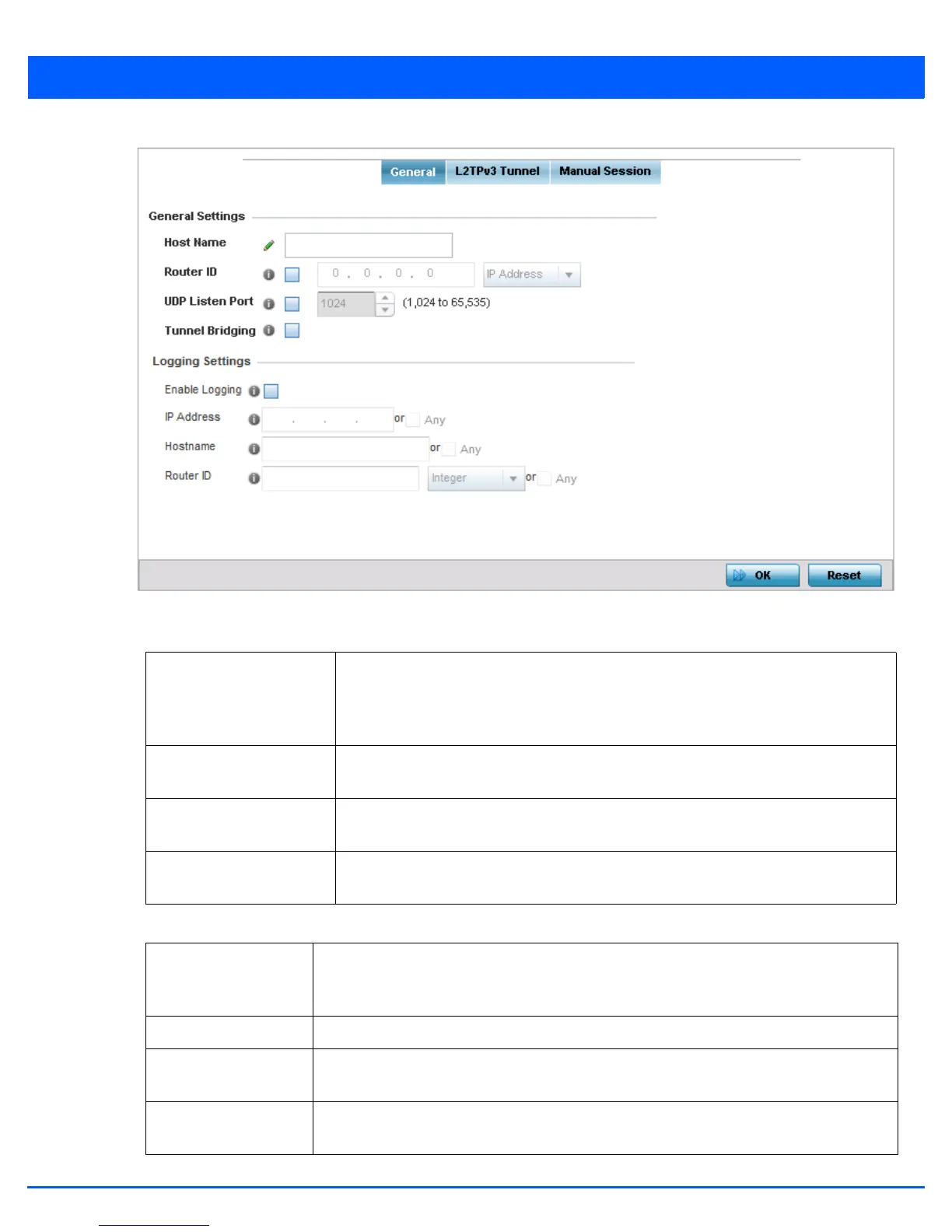

Figure 5-40 Network - L2TPv3 screen - General tab
5. Set the following General Settings for an L2TPv3 profile configuration:
6. Set the following Logging Settings for a L2TPv3 profile configuration:
Host Name Define a 64 character maximum hostname to specify the name of the host that’s sent
tunnel messages. Tunnel establishment involves exchanging 3 message types (SCCRQ,
SCCRP and SCCN) with the peer. Tunnel IDs and capabilities are exchanged during the
tunnel establishment with the host.
Router ID Set either the numeric IP address or the integer used as an identifier for tunnel AVP
messages. AVP messages assist in the identification of a tunnelled peer.
UDP Listen Port Select this option to set the port used for listening to incoming traffic. Select a port from
1,024 - 65,353.
Tunnel Bridging Select this option to enable or disable bridge packets between two tunnel end points. This
setting is disabled by default.
Enable Logging Select this option to enable the logging of Ethernet frame events to and from bridge VLANs
and physical ports on a defined IP address, host or router ID. This setting is disabled by
default.
IP Address Optionally use a peer tunnel ID address to capture and log L2TPv3 events.
Hostname If not using an IP address for event logging, optionally use a peer tunnel hostname to capture
and log L2TPv3 events.
Router ID If not using an IP address or a hostname for event logging, use a router ID to capture and log
L2TPv3 events.
