5 - 72 WiNG 5.6 Access Point System Reference Guide

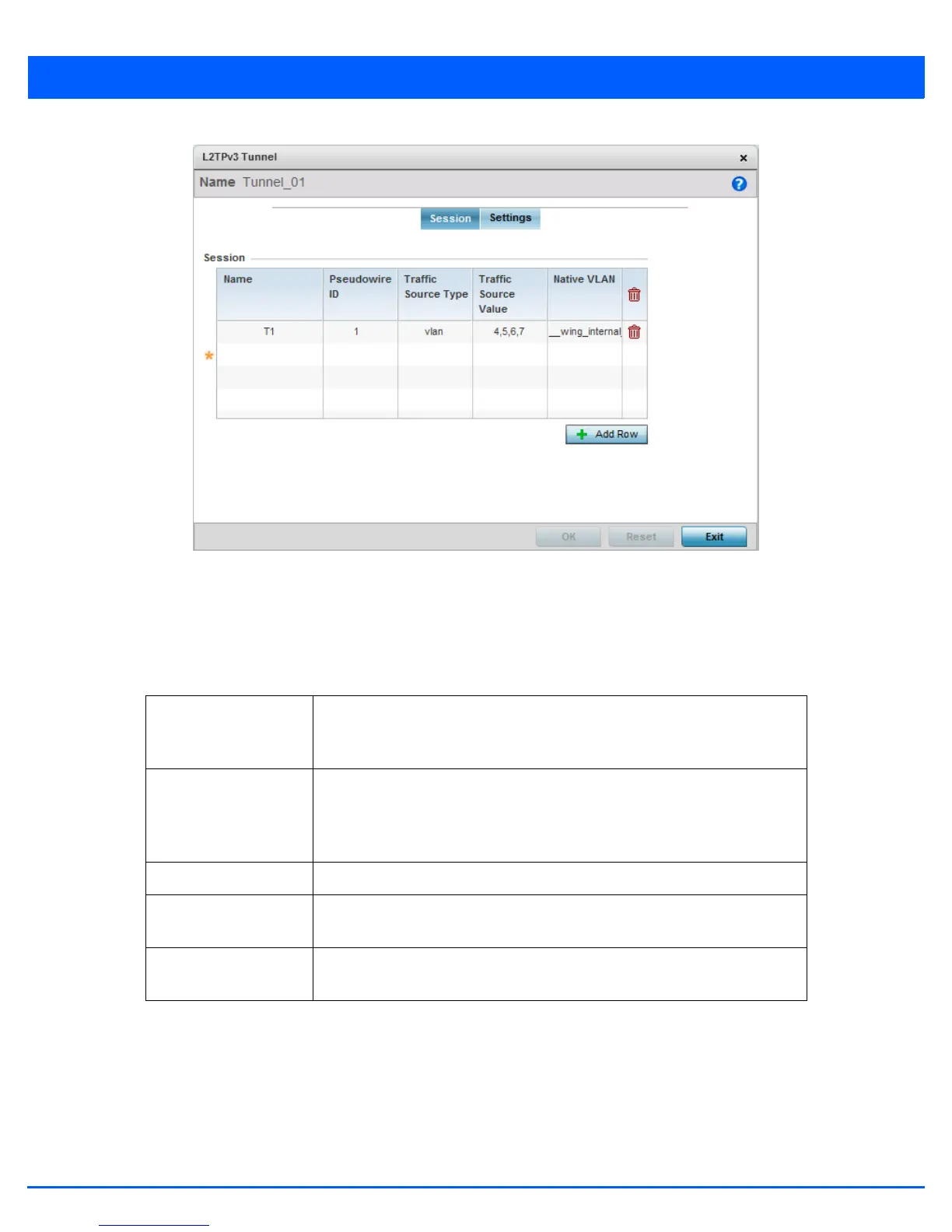

Figure 5-42 Network - L2TPv3 screen - Add L2TPv3 Tunnel Configuration
10. If creating a new tunnel configuration, assign it a 31 character maximum Name.
11. Refer to the Session table to review the configurations of the peers available for tunnel connection.
12. Select + Add Row to populate the table with configurable session parameters for this tunnel configuration.
13. Define the following Session parameters:
14. Select the Settings tab.
Name Enter a 31 character maximum session name. There is no idle timeout for a
tunnel. A tunnel is not usable without a session and a subsequent session
name.The tunnel is closed when the last session tunnel session is closed.
Pseudowire ID Define a psuedowire ID for this session. A pseudowire is an emulation of a
layer 2 point-to-point connection over a packet-switching network (PSN). A
pseudowire was developed out of the necessity to encapsulate and tunnel
layer 2 protocols across a layer 3 network.
Traffic Source Type Lists the type of traffic tunnelled in this session (VLAN etc.).
Traffic Source Value Define a VLAN range to include in the tunnel session. Available VLAN ranges
are from 1 - 4,094.
Native VLAN Select this option to provide a VLAN ID that will not be tagged in tunnel
establishment and packet transfer.
