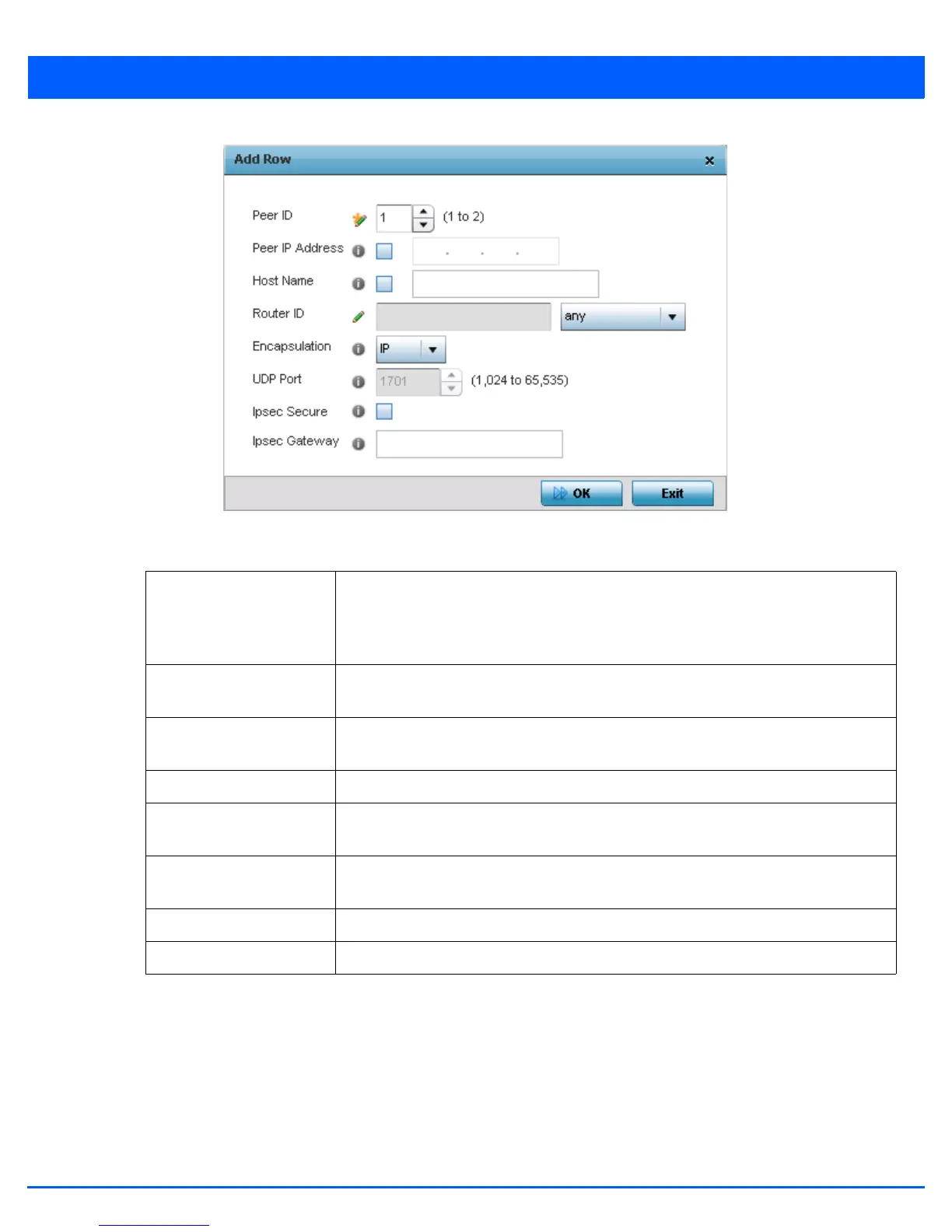

Figure 5-177 Device Overrides - Network - L2TPv3 screen, Add L2TP Peer Configuration
20. Define the following Peer parameters:
21. Select OK to save the peer configuration and overrides.
22. Select OK to save the changes and overrides to the L2TPv3 Tunnel screen. Select Reset to revert the screen to its last saved
configuration.
23. Select the Manual Session tab.
After a successful tunnel connection and establishment, individual sessions can be created. Each session is a single data
stream. After successful session establishment, data corresponding to that session (pseudowire) can be transferred. If a
session is down, the pseudowire associated with it is shut down as well.
Peer ID Define the primary peer ID used to set the primary and secondary peer for tunnel failover.
If the peer is not specified, tunnel establishment does not occur. However, if a peer tries
to establish a tunnel with this access point, it creates the tunnel if the hostname and/or
router ID matches.
Peer IP Address Select this option to enter the numeric IP address used as the tunnel destination peer
address for tunnel establishment.
Host Name Assign the peer a hostname that can be used as matching criteria in the tunnel
establishment process.
Router ID Specify the router ID sent in tunnel establishment messages with this specific peer.
Encapsulation Select either IP or UDP as the peer encapsulation protocol. The default setting is IP. UDP
uses a simple transmission model without implicit handshakes.
UDP Port If UDP encapsulation is selected, use the spinner control to define the UDP encapsulation
port.
IPSec Secure Enables or disable IPSec security for the tunnel.
IPSec Gateway If IPSec Secure is enabled, provide the IPSec gateway device’s IP address.
