Quick Start 3 - 3

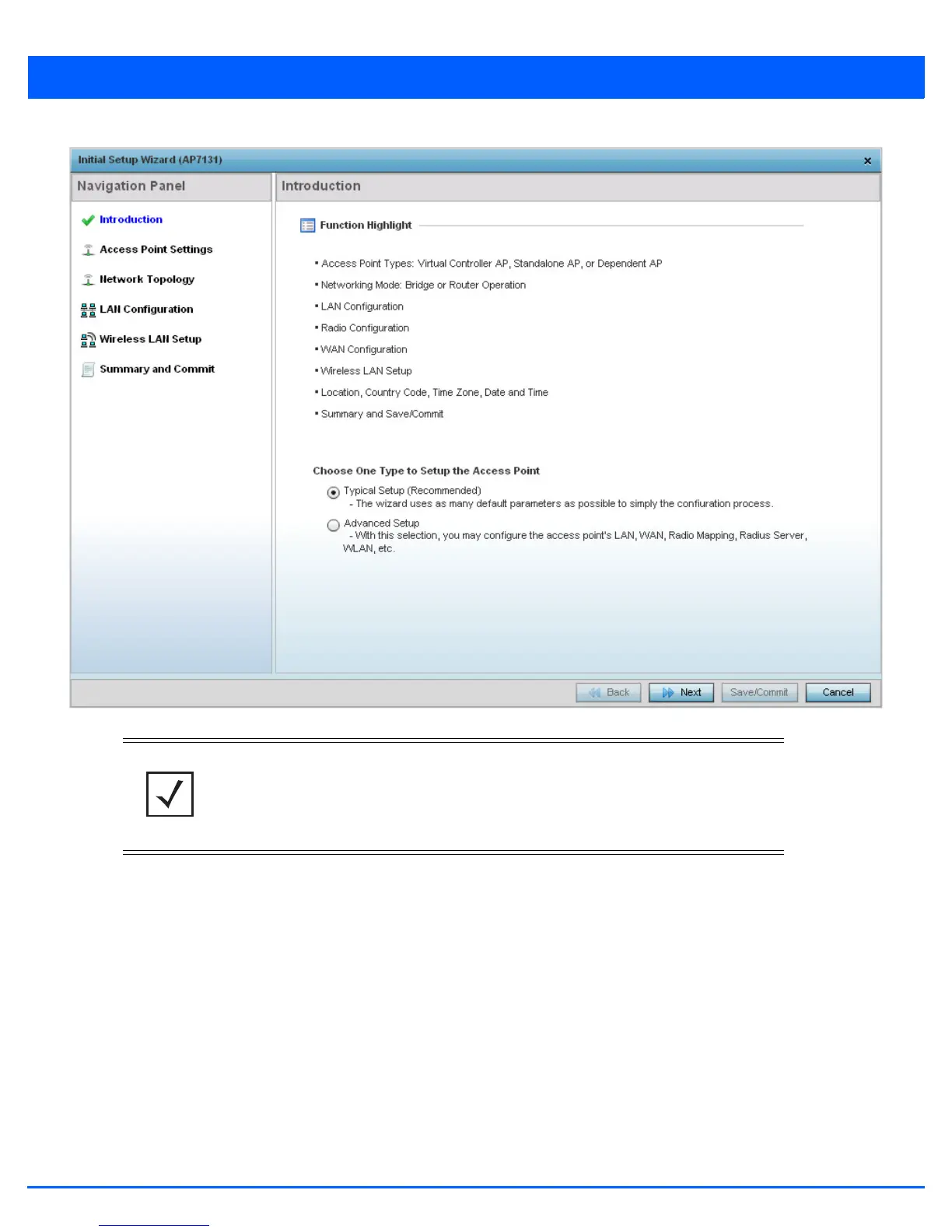

Figure 3-2 Initial Setup Wizard
The Introduction screen displays the various actions that can be performed using the wizard under the Function
Highlight field.
Use the Choose One type to Setup the Access Point field options to select the type of wizard to run. The Typical Setup
is the recommended wizard. This wizard uses the default parameters for most of the configuration parameters and sets up
a working network with the least amount of manual configuration.
The Advanced Setup wizard is for administrators who prefer more control over the different configuration parameters. A
few more configuration screens are available for customization when the Advanced Setup wizard is used.
The first page of the Initial Setup Wizard displays the Navigation Panel and Function Highlights for the configuration
activities comprising the access point's initial setup. This page also displays options to select the typical or advanced mode
for the wizard.
NOTE: The Initial Setup Wizard displays the same pages and content for each access
point model supported. The only difference being the number of radios configurable by
model, as an AP7131 model can support up to three radios, AP6522, AP6532, AP6562,
AP81XX, 82XX and AP71XX models support two radios and AP6511 and AP6521 models
support a single radio.
