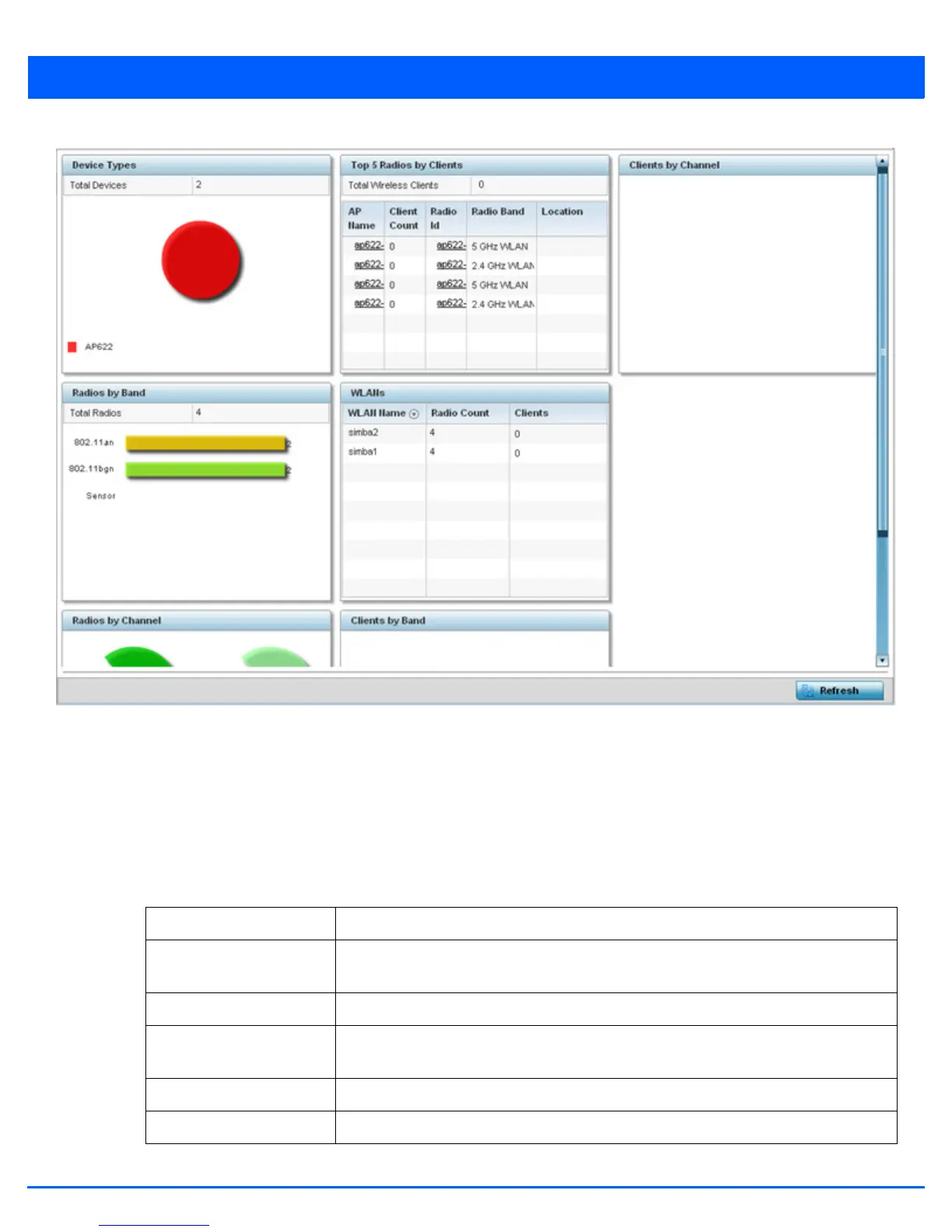

Figure 13-11 RF Domain - Inventory screen
4. The Device Types table displays the total members in the RF Domain. The exploded pie chart depicts the distribution of
RF Domain members by controller and access point model type.
5. The Radios by Band field displays the total number of radios using 802.11an and 802.11bgn bands within the RF Domain.
The number of radios designated as sensors is also represented.
6. The Radios by Channel field displays the radio channels utilized by RF Domain member devices in two separate charts.
One chart displays for 5 GHz channels and the other for 2.4 GHz channels.
7. The Top 5 Radios by Clients table displays the highest 5 performing wireless clients connected to RF Domain members.
Total Wireless Clients Displays the total number of clients connected to RF Domain members.
AP Name Displays the clients connected and reporting access point. The name displays as a link
that can be selected to display access point data in greater detail.
Client Count List the number of connected clients to each listed RF Domain member access point.
Radio Lists each radio’s administrator defined hostname and its radio designation (radio 1, radio
2 etc.).
Radio Band Lists each client’s operational radio band.
Location Displays system assigned deployment location for the client.
