4.7.5. Replacing the CR_ENC assembly
Notes :
¾ Remove following cover before replacing the CR_ENC assembly.
 Side cover L: refer to "Removing side cover L"
Step 1 : Follow step 1 in "Replacing the flushing box assembly" to slide the CR cursor to the left.
Step 2 : Remove the CR_ENC assembly connector from the CR board assembly.
Step 3 : Remove the T fence from the T fence spring, and then from the CR_ENC assembly.
Step 4 : Remove the 2 screws fixing the CR_ENC assembly.

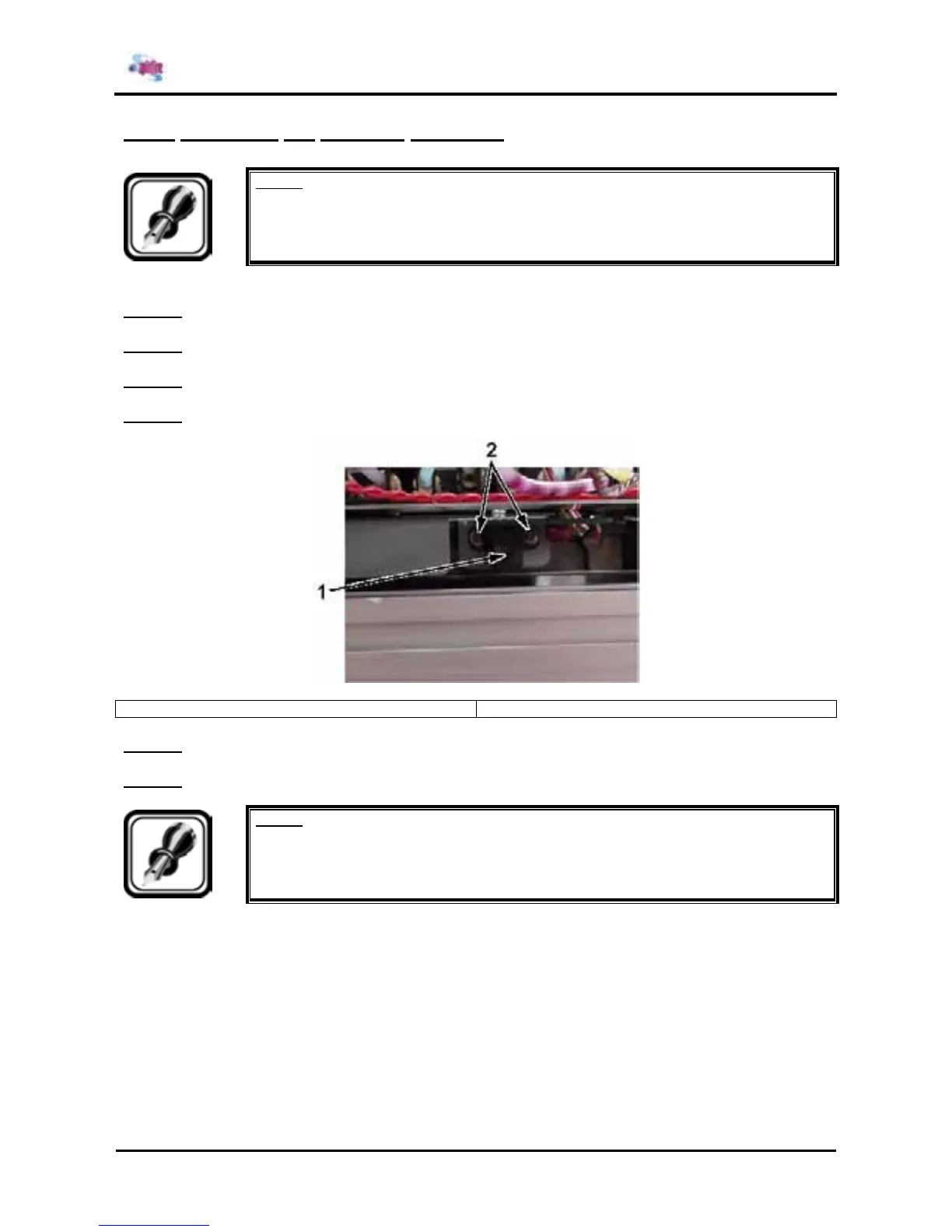

1 = CR_ENC assembly 2 = Screws (M2x12) fixing the CR_ENC assembly
Step 5 : Replace the CR_ENC assembly.
Step 6 : Reinstall all parts in the opposite order of the removal procedure.
Notes :
¾ When removing the T fence from the CR_ENC assembly, be careful not to damage
the T fence.
