MUTOH spitfire 90 - Replacing the Cursor Roller Assembly

Spitfire – Maintenance Manual
113
AP-74096, Rev. 1.0, 09/06/05

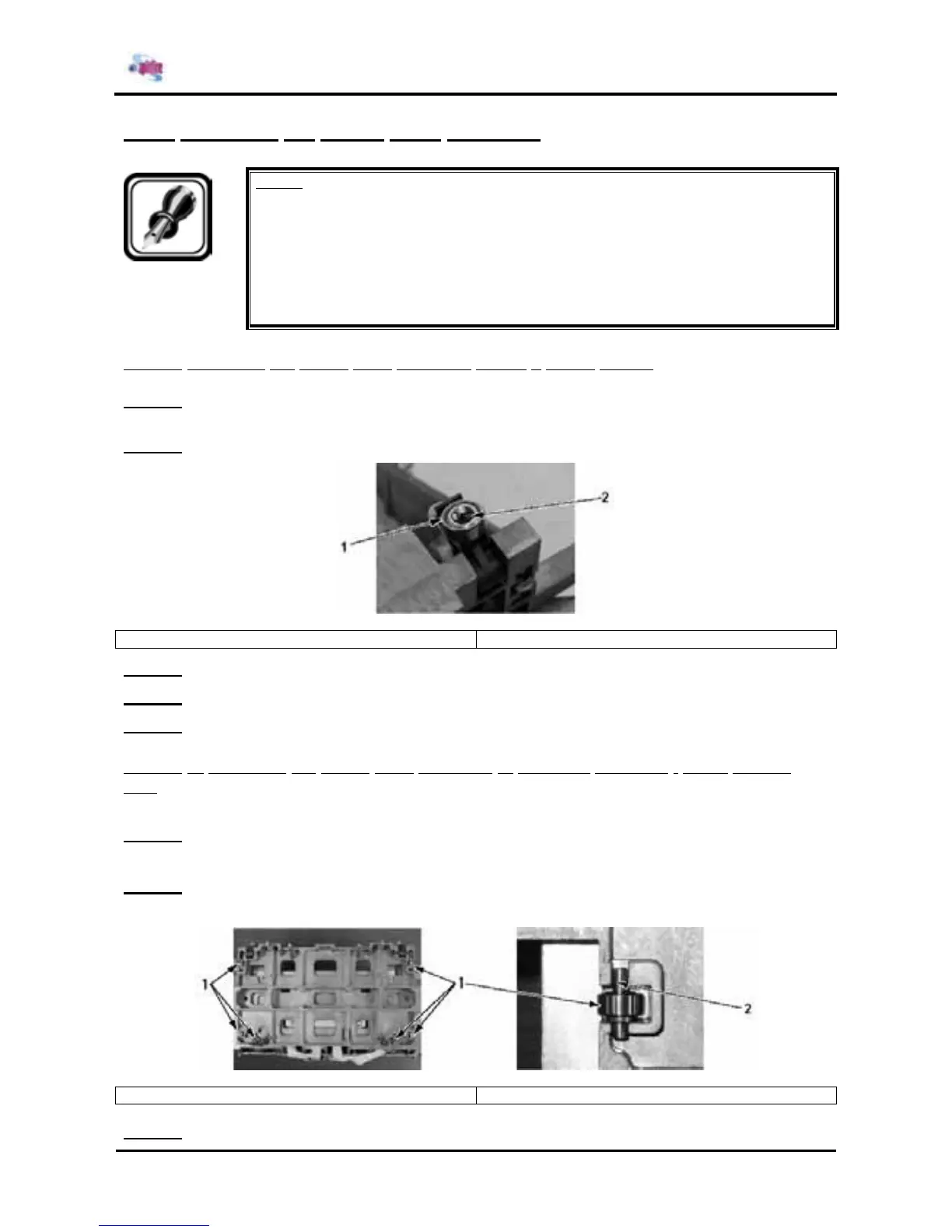

4.7.8. Replacing the cursor roller assembly
Notes :
¾ Remove following cover before replacing the Cursor roller assembly.
 Side cover R: refer to "Removing side cover R"
 Side cover L: refer to "Removing side cover L"
 Front cover: refer to "Removing the front cover"
 Y rail cover: refer to "Removing the Y rail cover"
 Head cover: refer to "Removing the head cover"
4.7.8.1. Replacing the cursor roller assembly (upper 2 cursor rollers)
Step 1 : Follow the instructions in "Replacing the CR cursor assembly " to remove the CR cursor
assembly.
Step 2 : Remove the E ring fixing the cursor roller assembly.
1 = CR cursor assembly 2 = E ring fixing the cursor roller assembly.
Step 3 : Replace the cursor roller assembly.
Step 4 : Reinstall all parts in the opposite order of the removal procedure.
Step 5 : Perform head height adjustment according to "Head height adjustment".
4.7.8.2. A. Replacing the cursor roller assembly (6 high-load bearings) : Large bearing
type
Step 1 : Follow the instructions in "Replacing the CR cursor assembly " to remove the CR cursor
assembly.
Step 2 : Remove the side cursor roller assemblies and B cursor axises together with flat-head driver or
another tool.
1 = CR cursor assembly 2 = B cursor axis
Step 3 : Remove the E ring fixing the cursor roller assembly of downside.
