Spitfire – Maintenance Manual
52
AP-74096, Rev. 1.0, 09/06/05

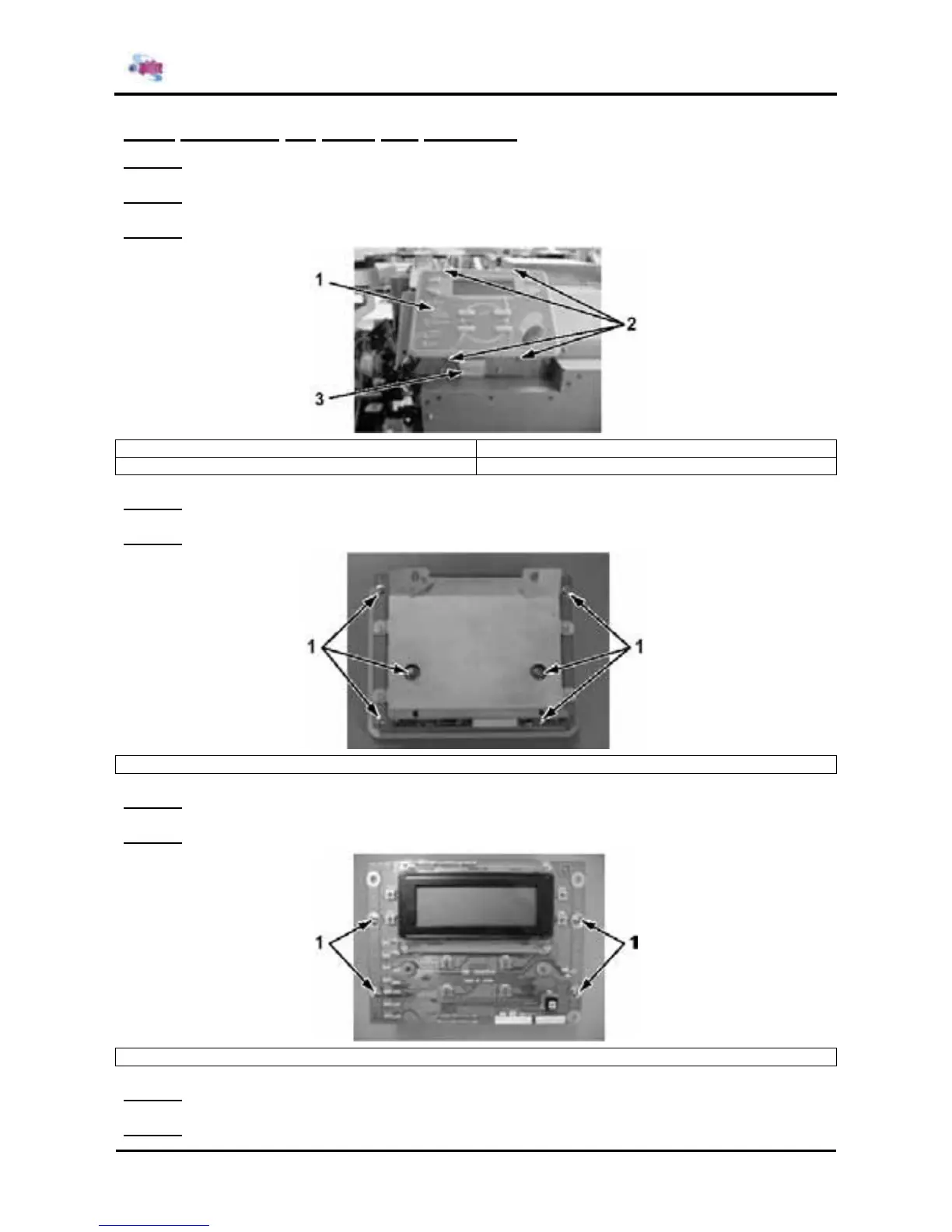

4.2.5. Removing the panel unit assembly
Step 1 : Remove side cover R.
Step 2 : Remove the panel tape power cord.
Step 3 : Remove the 4 screws fixing the panel base.
1 = Panel unit assembly 2 = Screws (M3x6) fixing the panel unit assembly
3 = Tape wire
Step 4 : Remove the panel unit assembly.
Step 5 : Remove the 6 screws fixing the panel board assembly and the panel cover.
1 = Screws (M3x8) fixing the panel cover
Step 6 : Remove the panel cover.
Step 7 : Remove the 4 screws fixing the panel bracket and the panel board assembly.
1 = Screws (M3x8) fixing the panel board assembly
Step 8 : Replace the panel board assembly.
Step 9 : Reinstall all parts in the opposite order of the removal procedure.
