Spitfire – Maintenance Manual
51
AP-74096, Rev. 1.0, 09/06/05

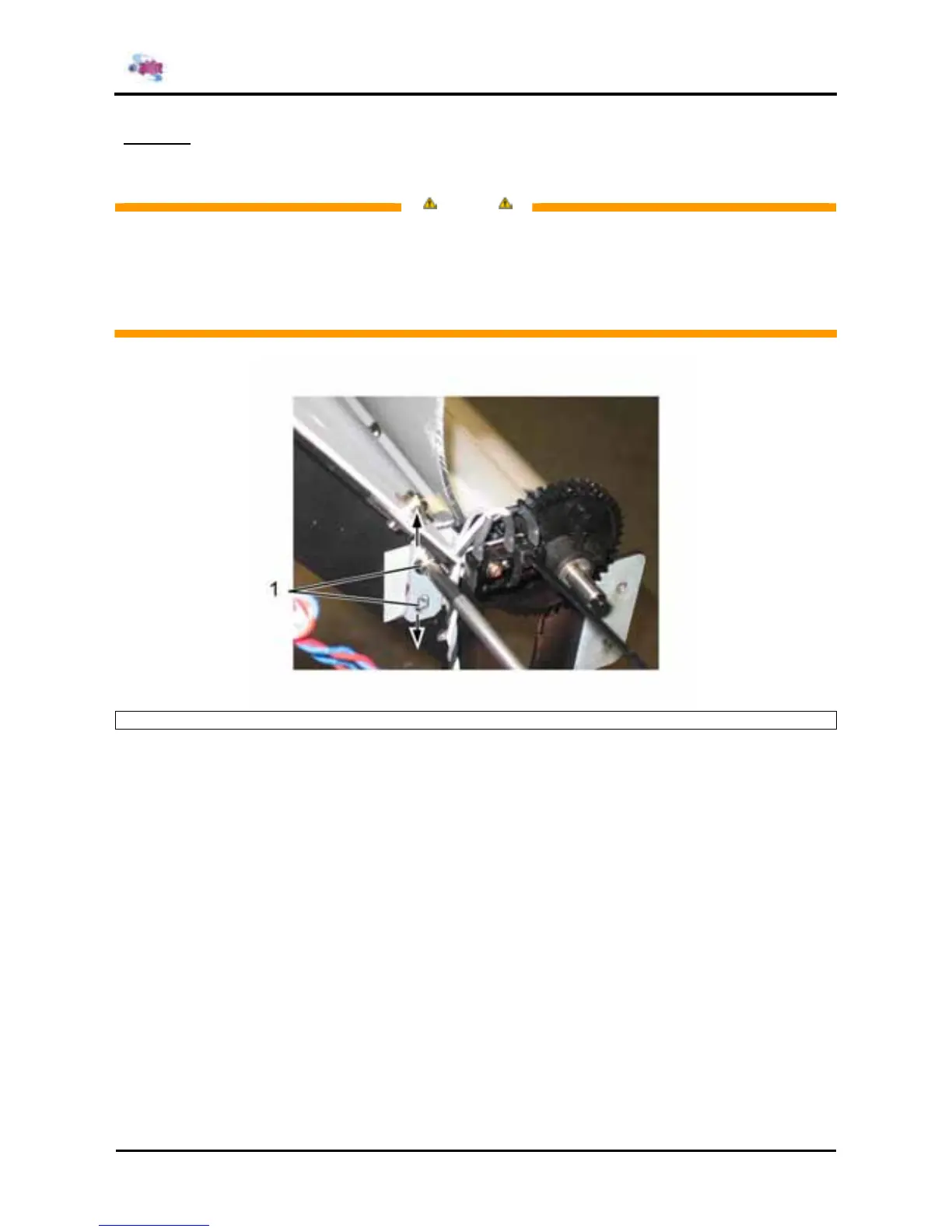

Step 10 : Alignment of the sensor (height adjust)
The sensor assy has to be aligned when (re)assembling it.
Caution
Height adjust of the sensor is necessary ! In order to make the sensor well function and keeping it,
the pressure of the wheel-cam on the lever of the sensor may not be too high. A little margin must be
contained when the front cover is in the most downwards position. In this position make sure the
sensor is switched (!), but that there is still a little margin so the sensor lever can be pushed even
further.
1 = Holes / Screws for fixing and adjusting the sensor assy
