Spitfire – Maintenance Manual
50
AP-74096, Rev. 1.0, 09/06/05

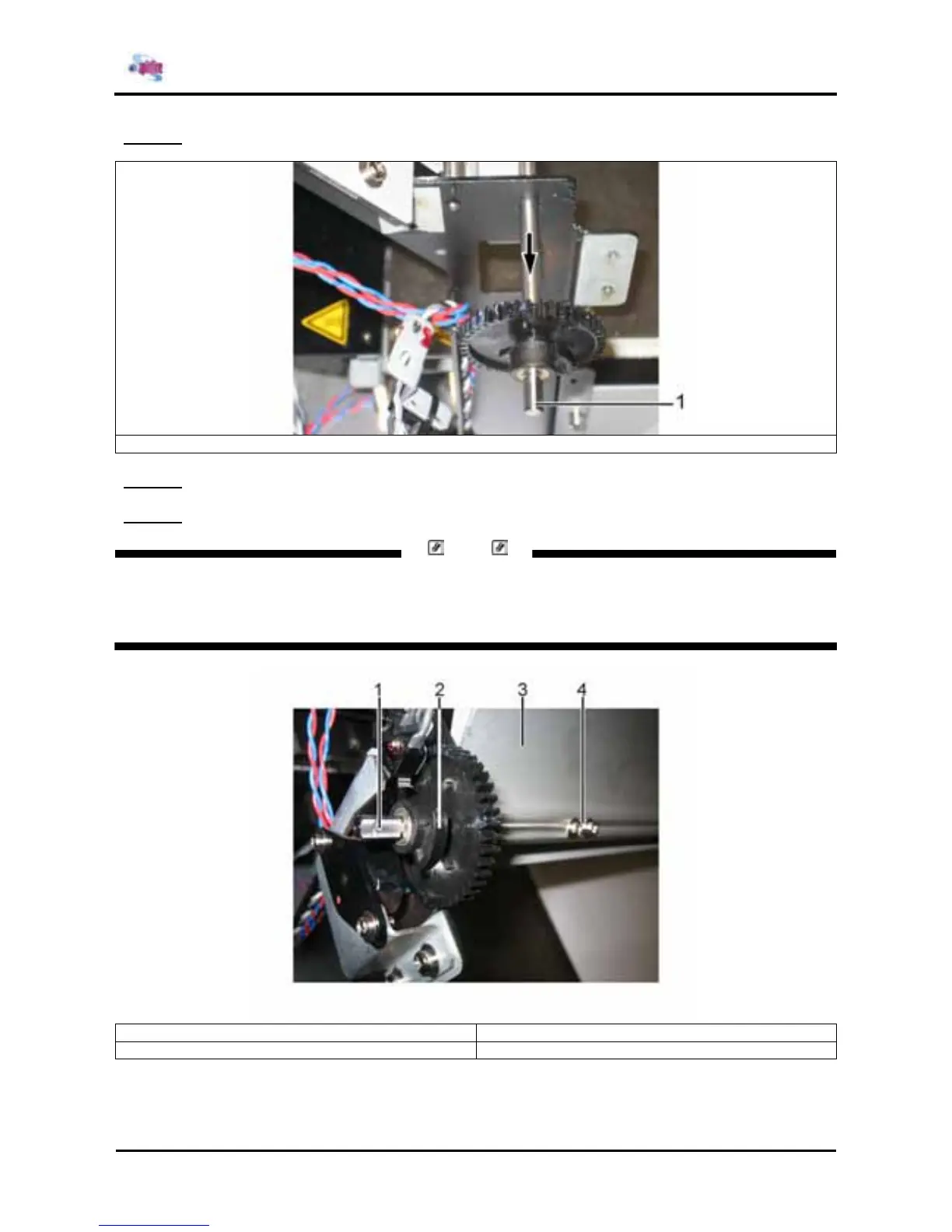

Step 7 : Remove the left cover spindle with the wheel in once.
1 = Spindle left with wheel
Step 8 : Remove the front cover
Step 9 : Reinstall all components in the opposite way
Notes
Make sure the spindle is oriented in the right direction when fixing the front cover to it. The spindle is fixed to
the front cover in the open position. The ridge of the wheel on the spindle must point in the forward direction
(see photo below)
1 = Flat (top) side of the spindle 3 = Front Cover
2 = Ridge on the wheel 4 = Screws for fixing the cover to the spindle (LEFT)
