Spitfire – Maintenance Manual
129
AP-74096, Rev. 1.0, 09/06/05
4.9. REPLACING THE PUMP AREA
4.9.1. Replacing the pump assembly
Notes :
¾ Remove following covers before replacing the parts in the PF motor assembly.
Maintenance cover: refer to "Removing the maintenance cover"

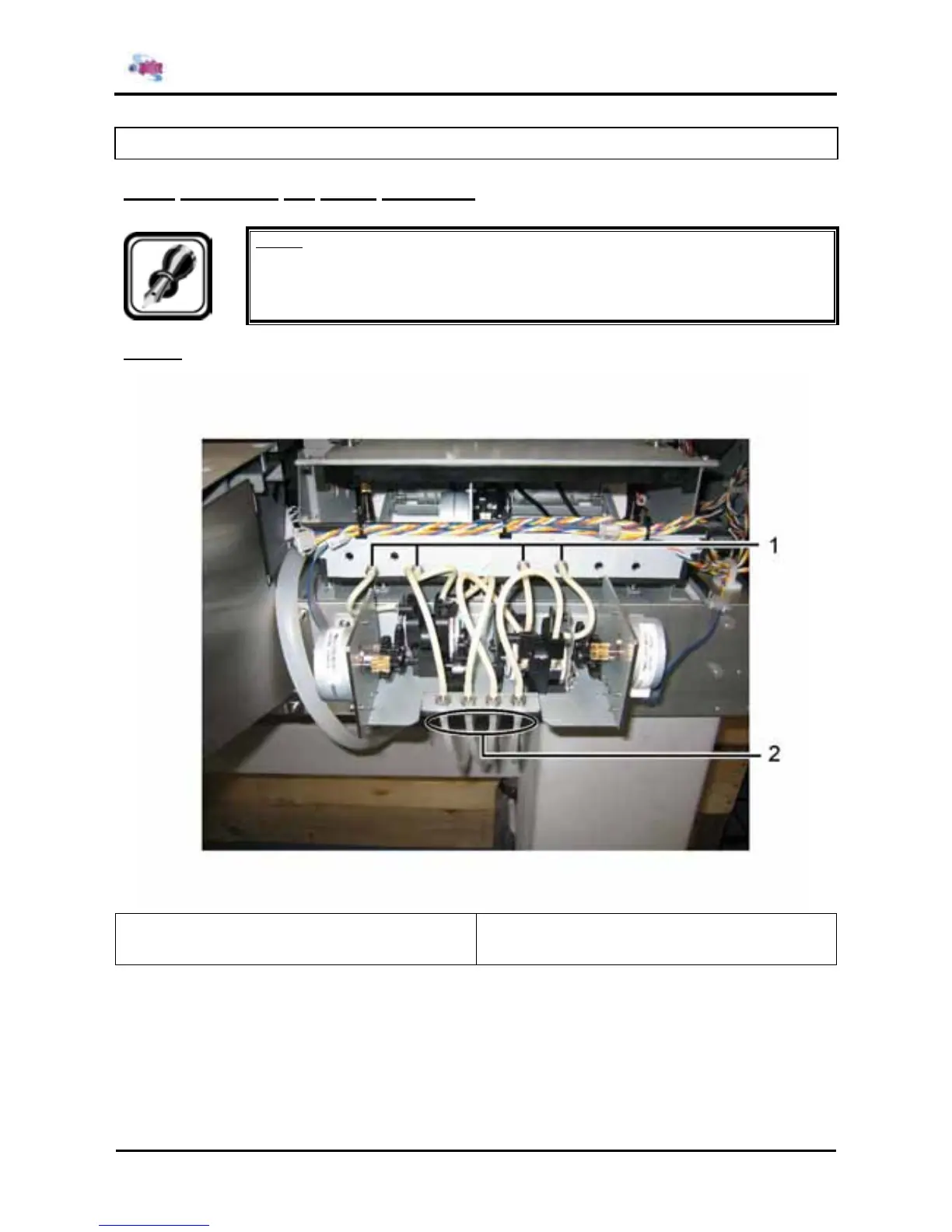

Step 1 : Remove the tubes on the maintenance station and those to the waste bottle.
1 = tube connections on the maintenance station
(Connections of the Tubes of the pump station
connected on the maintenance station)
2 = tube connections on the underside of the pump
station (Connections of the tubes going to the waste
bottle)
To Next Page
