MUTOH spitfire 90 - Replacing the P_REAR_R Sensor Assembly and P_REAR_L Sensor Assembly

Spitfire – Maintenance Manual
80
AP-74096, Rev. 1.0, 09/06/05

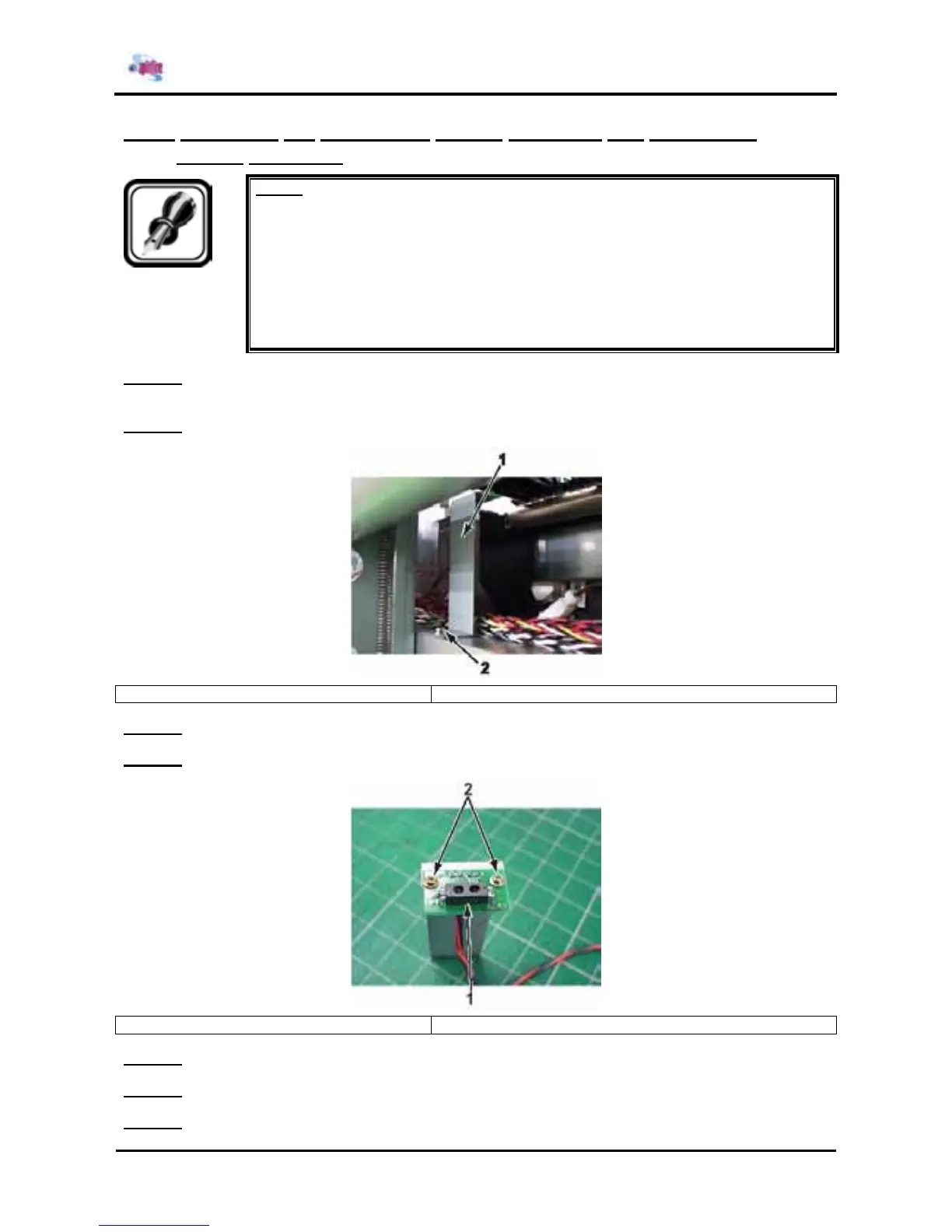

4.5.5. Replacing the P_REAR_R sensor assembly and P_REAR_L
sensor
assembly
Notes :
¾ Remove following covers before replacing the P_REAR_R sensor assembly and
P_REAR_L sensor assembly.
 Side cover R: refer to "Removing side cover R"
 Side cover L: refer to "Removing side cover L"
 Front cover: refer to "Removing the front cover"
 Y rail cover: refer to "Removing the Y rail cover"
 Media guide F: refer to "Removing media guide F"
Step 1 : Remove the connectors for the P_REAR_R sensor assembly and P_REAR_L sensor assembly
from the Mainboard assembly.
Step 2 : Remove the screw fixing the media sensor installation board.
1 = Media sensor installation board 2 = Screw (M3x8) fixing the media sensor installation board
Step 3 : Remove the media sensor installation board.
Step 4 : Remove the 2 screws fixing the P_REAR_R sensor assembly.
1 = P_REAR_R sensor assembly 2 = Screws (M2x5) fixing the P_REAR_R sensor assembly
Step 5 : Replace the P_REAR_R sensor assembly.
Step 6 : Use the same procedure to replace the P_REAR_L sensor assembly.
Step 7 : Reinstall all parts in the opposite order of the removal procedure.
