Spitfire – Maintenance Manual
43
AP-74096, Rev. 1.0, 09/06/05

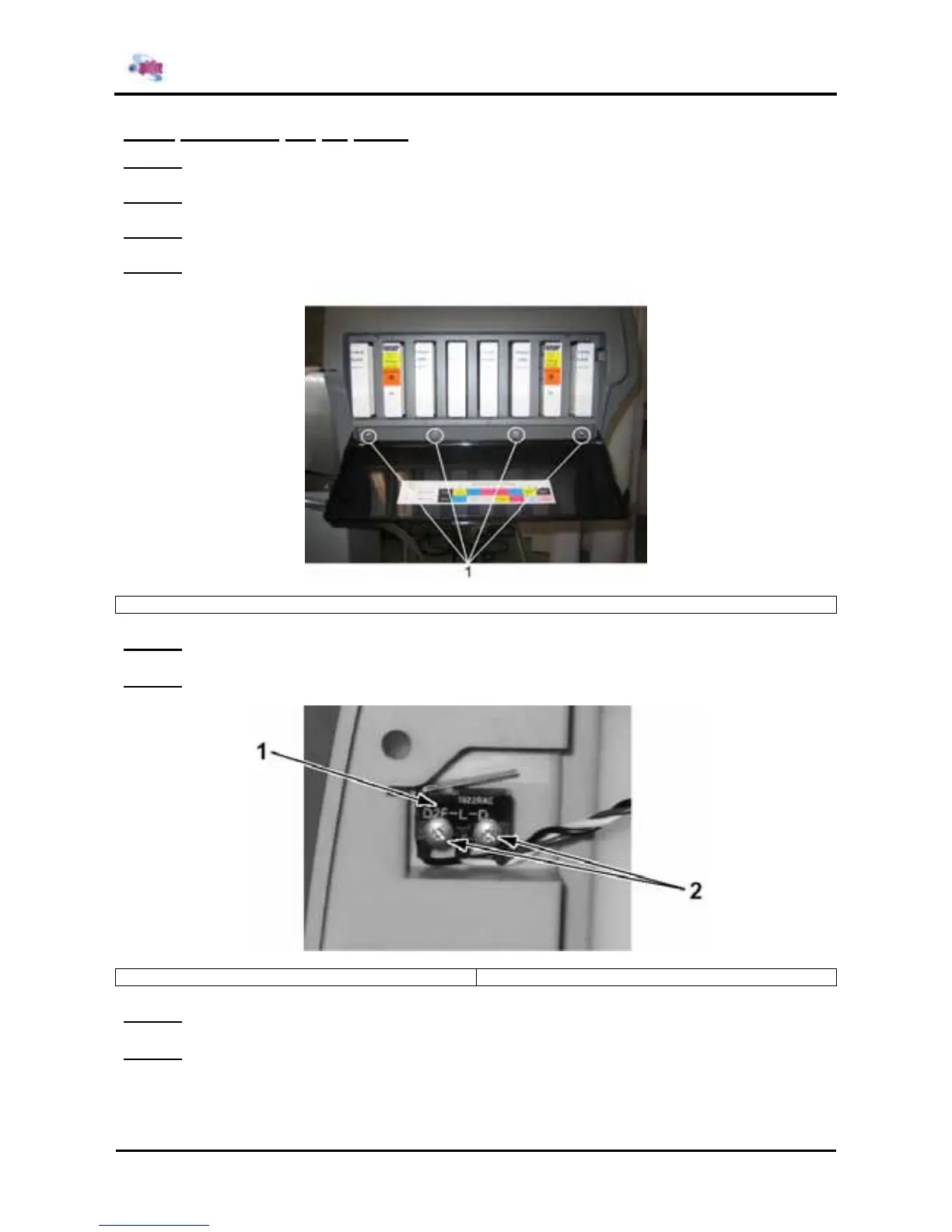

4.2.1. Removing the I/H cover
Step 1 : Remove the ink cartridge.
Step 2 : Open the I/H cover lid.
Step 3 : Remove the 4 screws fixing the I/H cover.
Step 4 : Remove the I/H cover and I/H cover lid.
1 = Screws (M3x12) fixing the I/H cover
Step 5 :
Remove the 2 screws fixing the ink cover sensor.
Step 6 :
Remove the ink cover sensor.
1 = Ink cover sensor 2 = Screws (M2x10) fixing the ink cover sensor
Step 7 :
Replace the parts inside the printer.
Step 8 :
Reinstall all parts in the opposite order of the removal procedure.
