Spitfire – Maintenance Manual
132
AP-74096, Rev. 1.0, 09/06/05
4.9.3. Replacing the pump motor assembly
Caution :
The motor is hot after the product has been operated, so be careful not to burn yourself.
Step 1 : Follow the instructions in "Replacing the pump assembly " to remove the pump assembly.
Step 2 : Remove the 2 screws fixing the pump motor assembly.

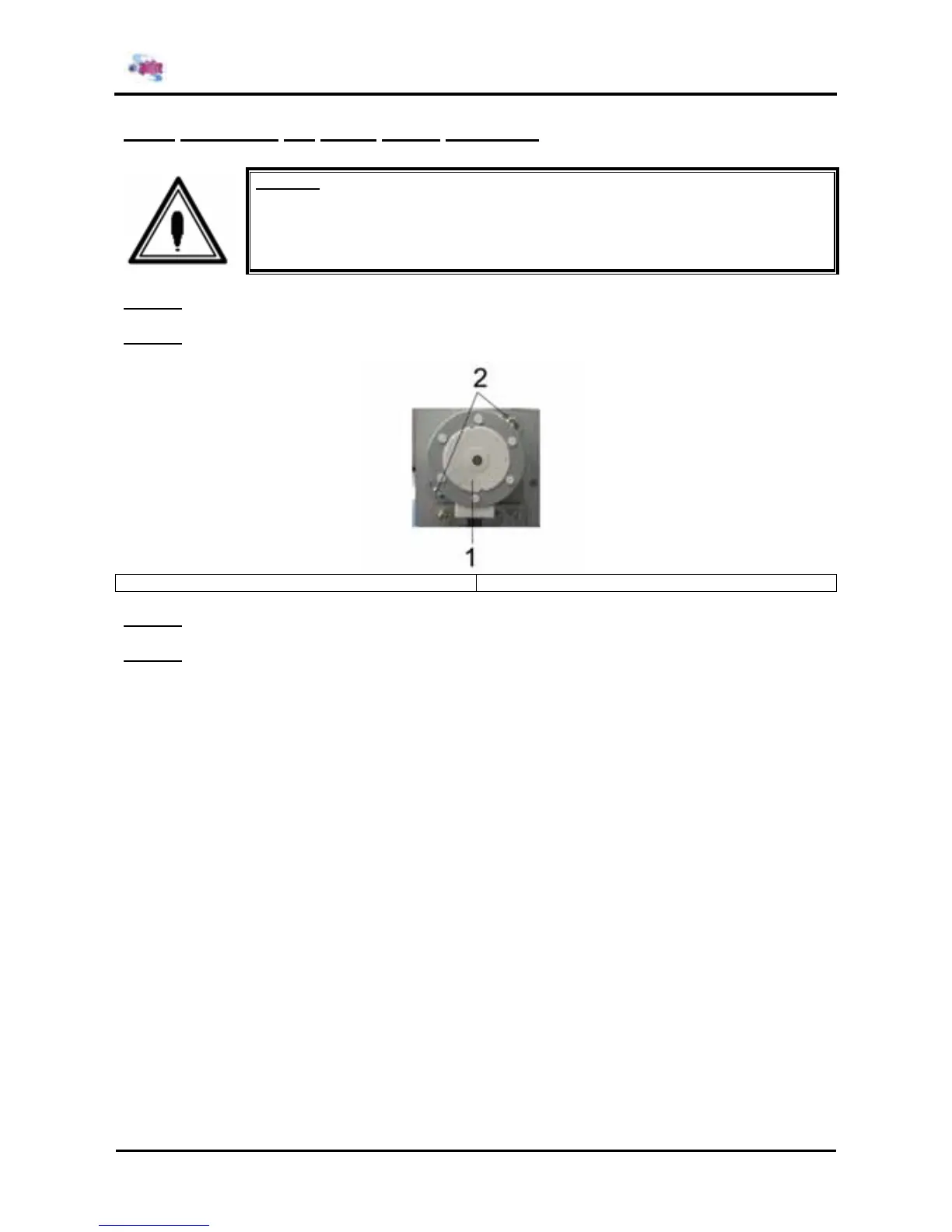

1 = Pump motor assembly 2 = Screws (M3x6) fixing the pump motor assembly
Step 3 : Replace the pump motor assembly.
Step 4 : Reinstall all parts in the opposite order of the removal procedure.
