MUTOH spitfire 90 - Front and Back Head Adjustment

Spitfire – Maintenance Manual
225
AP-74096, Rev. 1.0, 09/06/05
7.7.2. Front and back of head adjustment
To perform a Head Front/Back Adjustment, please follow the steps mentioned below.
Step 1 : In diagnostic mode, go to [Adjust : Head Slant].
Step 2 : Press the [F2] key for F&B (front and back) adjustment.
* HeadSlant *
F1 →
Slant F&B
← F2
F3 →
Check End
← F4

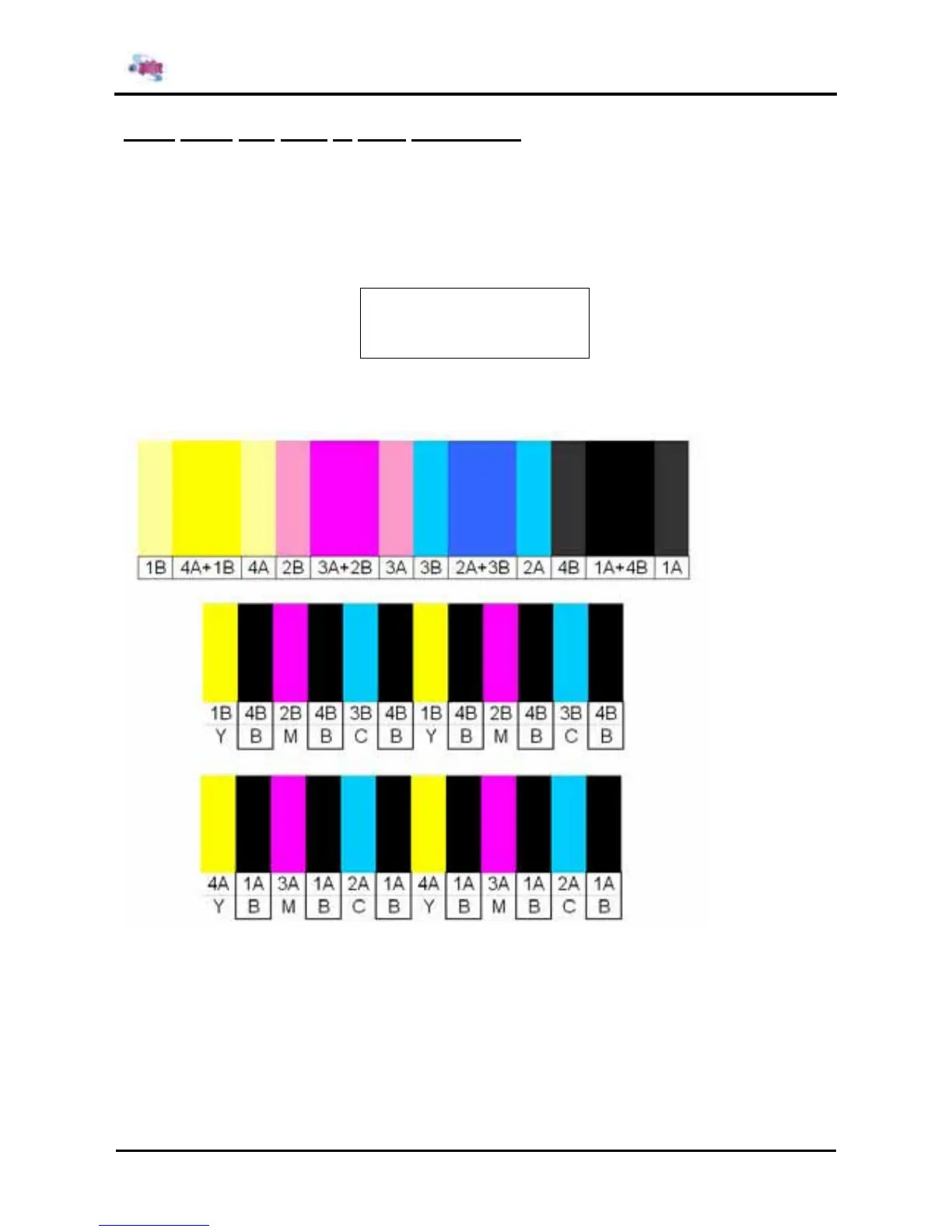

Step 3 : Print out [Front/Back] pattern. First pattern A with 1A as reference is printed, then pattern B with
4B as reference and finally A+B.
A+B
B
4B is the
reference
head
A
1A is the
reference
head
