MUTOH spitfire 90 - Removing the Maintenance Cover

Spitfire – Maintenance Manual
58
AP-74096, Rev. 1.0, 09/06/05
4.2.10. Removing the maintenance cover

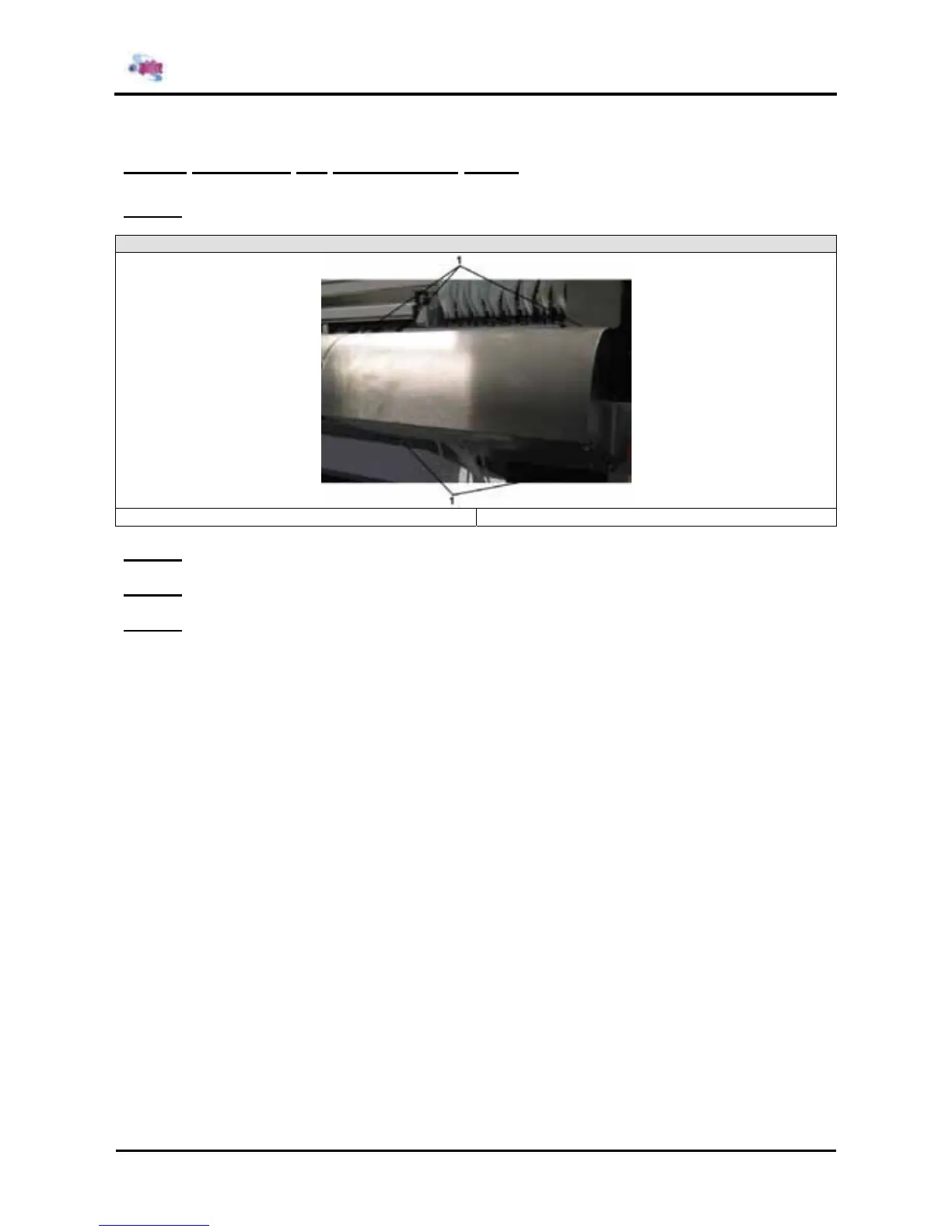

Step 1 : Remove the 6 screws fixing the maintenance cover.
Spitfire
1 = Screws (M3x8) 1 = Screws (M3x8)
Step 2 : Remove the maintenance cover.
Step 3 : Replace the parts inside the printer.
Step 4 : Reinstall all parts in the opposite order of the removal procedure.
