Spitfire – Maintenance Manual
93
AP-74096, Rev. 1.0, 09/06/05

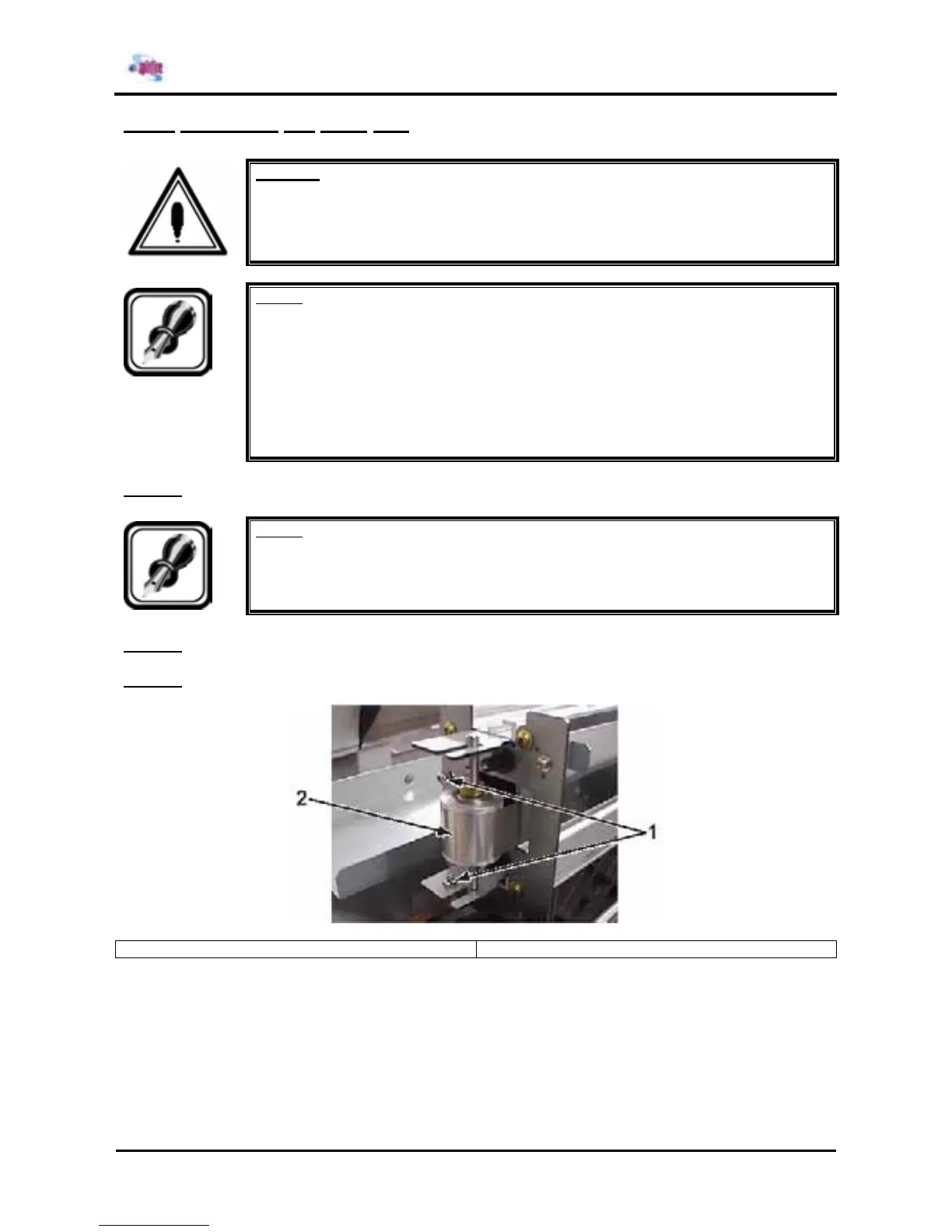

4.6.2. Replacing the steel belt
Caution :
When replacing the steel belt, be careful not to cut your hands by the belt.
Notes :
¾ Do not damage the steel belt.
¾ Remove following covers before replacing the steel belt.
Side cover R: refer to "Removing side cover R"
Side cover L: refer to "Removing side cover L"
Front cover: refer to "Removing the front cover"
Y rail cover: refer to "Removing the Y rail cover"
Step 1 : Unlock the head.
Notes :
¾ Refer to ‘Head Lock Menu’
Step 2 : Move the carriage from the capping position to the left.
Step 3 : Rotate the 2 steel belt adjustment screws counterclockwise to loosen the steel belt.
1 = Steel belt adjustment screws 2 = Steel belt
