Spitfire – Maintenance Manual
103
AP-74096, Rev. 1.0, 09/06/05
4.7. REPLACING THE CURSOR
4.7.1. Replacing the cutter holder, cutter spring, cutter cap, solenoid
assembly
and solenoid spring
(1) Replacing the cutter spring
Step 1 : Open the front cover.
Step 2 : Remove the cutter blade from the cutter holder.
Step 3 : Remove the cutter spring from the cutter holder.

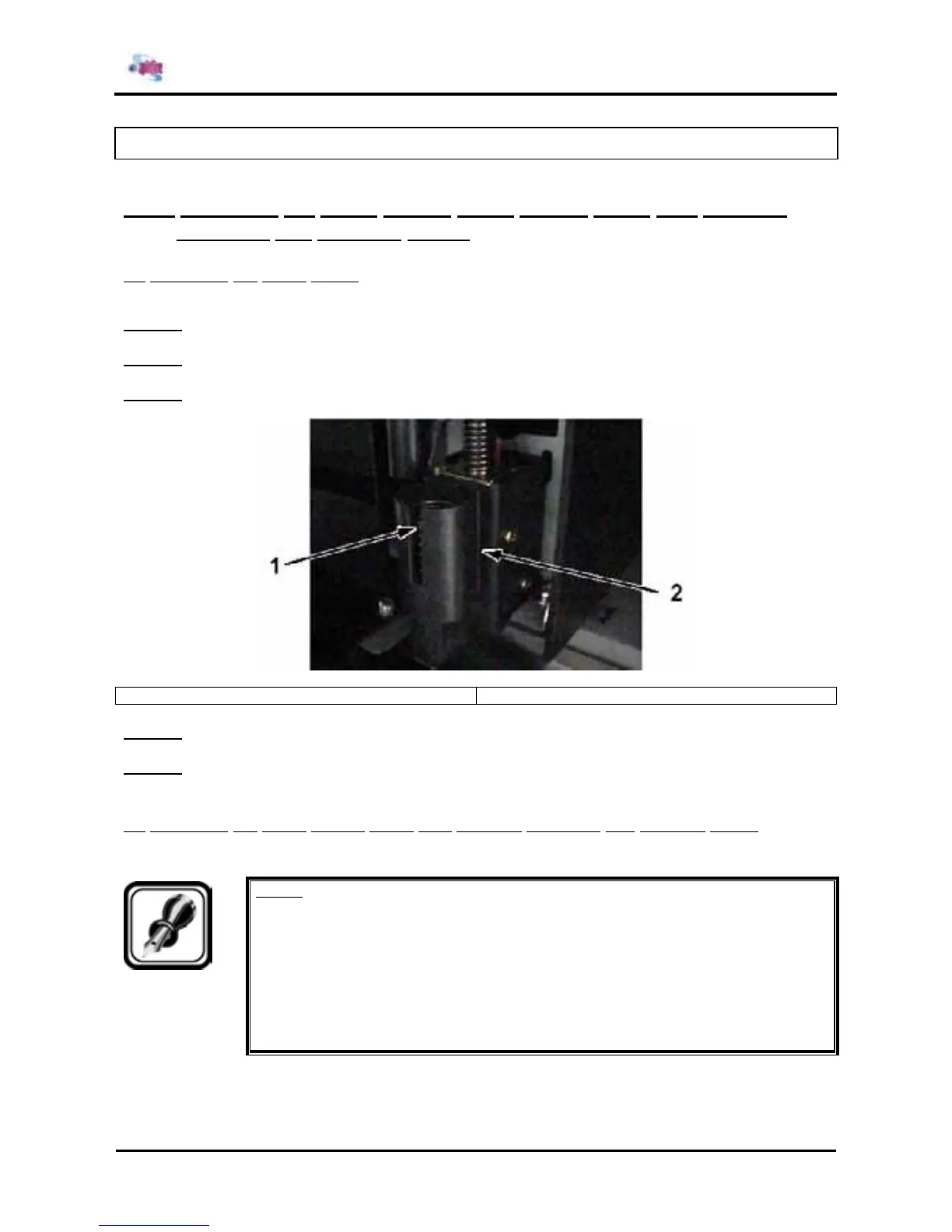

1 = Cutter spring 2 = Cutter holder
Step 4 : Replace the cutter spring.
Step 5 : Reinstall all parts in the opposite order of the removal procedure.
(2) Replacing the cutter holder, cutter cap, solenoid assembly and solenoid spring
Notes :
¾ Remove following covers before replacing the cutter holder, cutter cap, solenoid
assembly, and solenoid spring.
 Side cover R: refer to "Removing side cover R"
 Side cover L: refer to "Removing side cover L"
 Front cover: refer to "Removing the front cover"
 Y rail cover: refer to "Removing the Y rail cover"
 Head cover: refer to "Removing the head cover"
