MUTOH spitfire 90 - Replacing the Suction Fan Assembly

Spitfire – Maintenance Manual
81
AP-74096, Rev. 1.0, 09/06/05
4.5.6. Replacing the suction fan assembly
Notes :
¾ Remove following covers before replacing the suction fan assembly.
 Side cover R: refer to "Removing side cover R"
 Side cover L: refer to "Removing side cover L"
 Front cover: refer to "Removing the front cover"
 Y rail cover: refer to "Removing the Y rail cover"
 Media guide F: refer to "Removing media guide F"
Step 1 : Remove the suction fan assembly connector from the suction fan cable assembly.
Step 2 : When replacing the suction fan cable assembly, first remove the connector from the Mainboard
assembly.
Step 3 : Remove the 2 screws fixing the suction fan assembly.

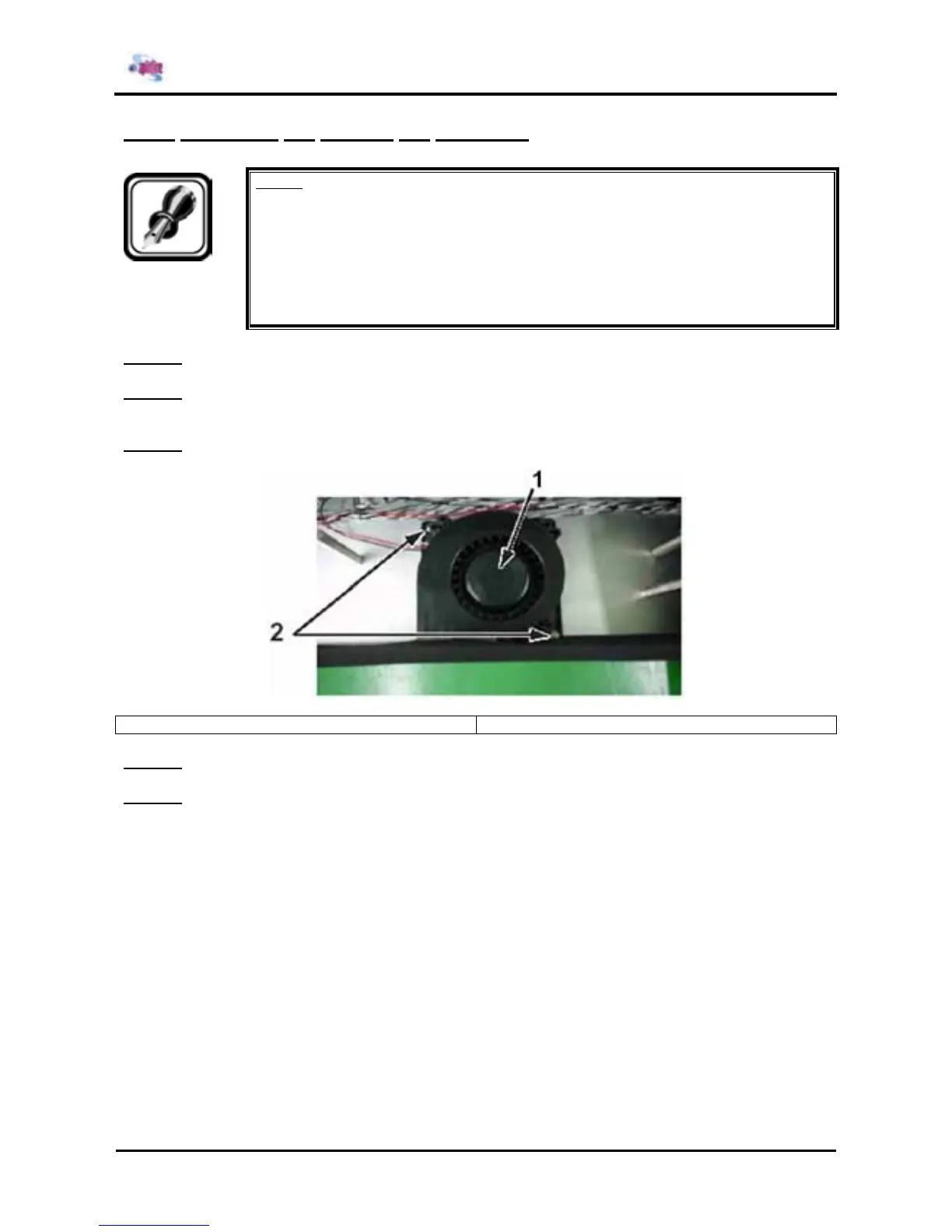

1 = Suction fan assembly 2 = Screws (M3x12) fixing the suction fan assembly
Step 4 : Replace the suction fan assembly.
Step 5 : Reinstall all parts in the opposite order of the removal procedure.
