MUTOH spitfire 90 - Replacing the PF Deceleration Belt

Spitfire – Maintenance Manual
79
AP-74096, Rev. 1.0, 09/06/05

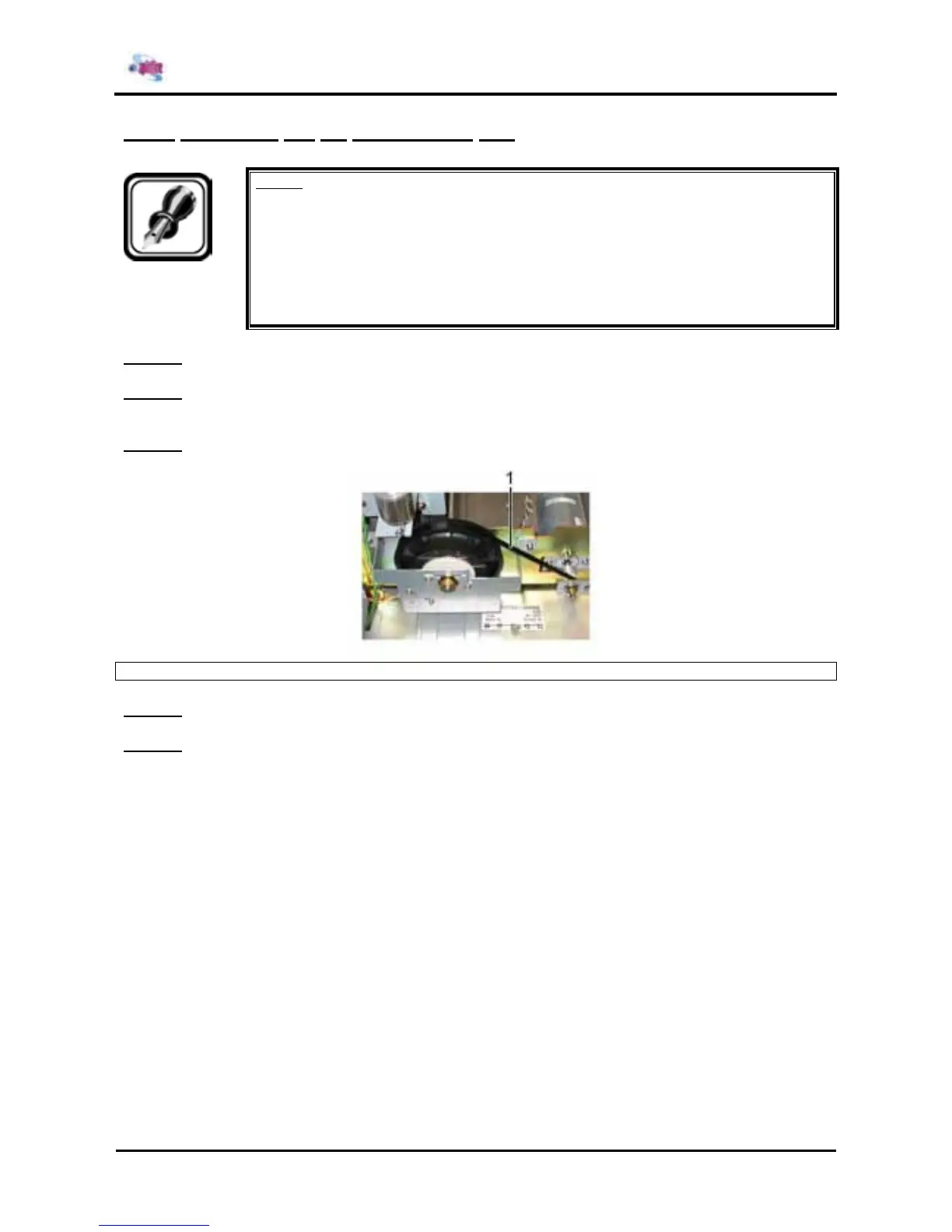

4.5.4. Replacing the PF deceleration belt
Notes :
¾ Remove following covers before replacing the parts in the PF motor assembly.
 Side cover R: refer to "Removing side cover R"
 Side cover L: refer to "Removing side cover L"
 Front cover: refer to "Removing the front cover"
 Y rail cover: refer to "Removing the Y rail cover"
 Media guide F: refer to "Removing media guide F"
Step 1 : Follow the instructions in "Replacing the PF motor assembly" to remove the PF motor.
Step 2 : Follow the instructions in "Replacing the PF_ENC assembly and PF scale assembly" to remove
the PF_ENC assembly and the PF scale assembly.
Step 3 : Replace the PF deceleration belt.
1 = PF deceleration belt
Step 4 :
Reinstall all parts in the opposite order of the removal procedure.
Step 5 : Adjust the tension of the PF deceleration belt according to "PF deceleration belt tension
adjustment".
