MUTOH spitfire 90 - Replacing the Caps

Spitfire – Maintenance Manual
121
AP-74096, Rev. 1.0, 09/06/05
4.8.3. Replacing the caps
Notes

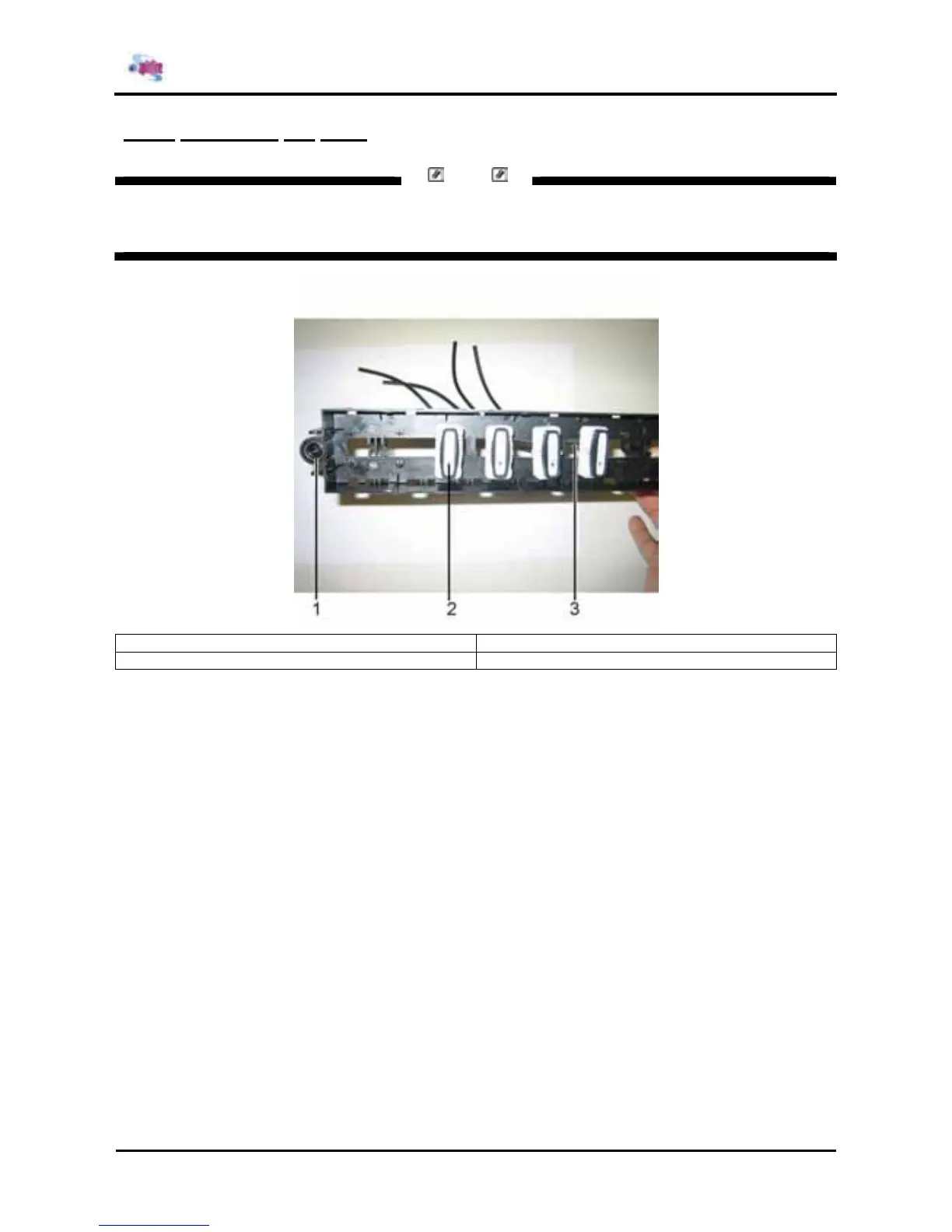

Make sure when mounting the caps that with the bearing at the right side the caps black spot is on the under
side and the tube at the back at the upper side.
1 = bearing 3 = tube at the back of the cap
2 = black spot on cap
