Spitfire – Maintenance Manual
120
AP-74096, Rev. 1.0, 09/06/05

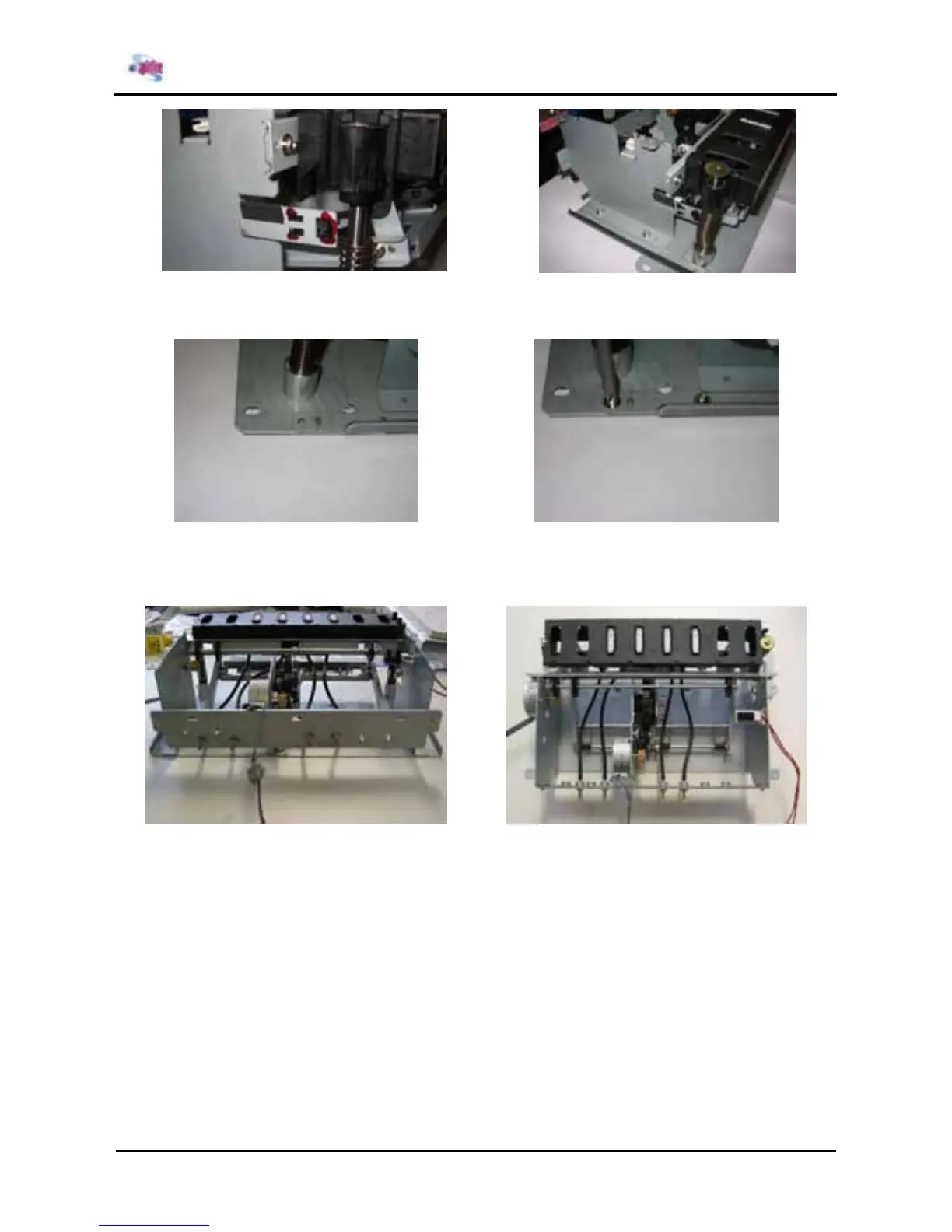

Step 4 : Attach both plates with 4x NS-05030051. Determine the position by using the nipples on
the basic plate.
Step 5 : Adjust the ridge so that you aren’t able anymore to put a sheet of paper between the ridge
Step 6 : Put the 4 black tubes on the nipples as on the pictures below.
