Spitfire – Maintenance Manual
119
AP-74096, Rev. 1.0, 09/06/05

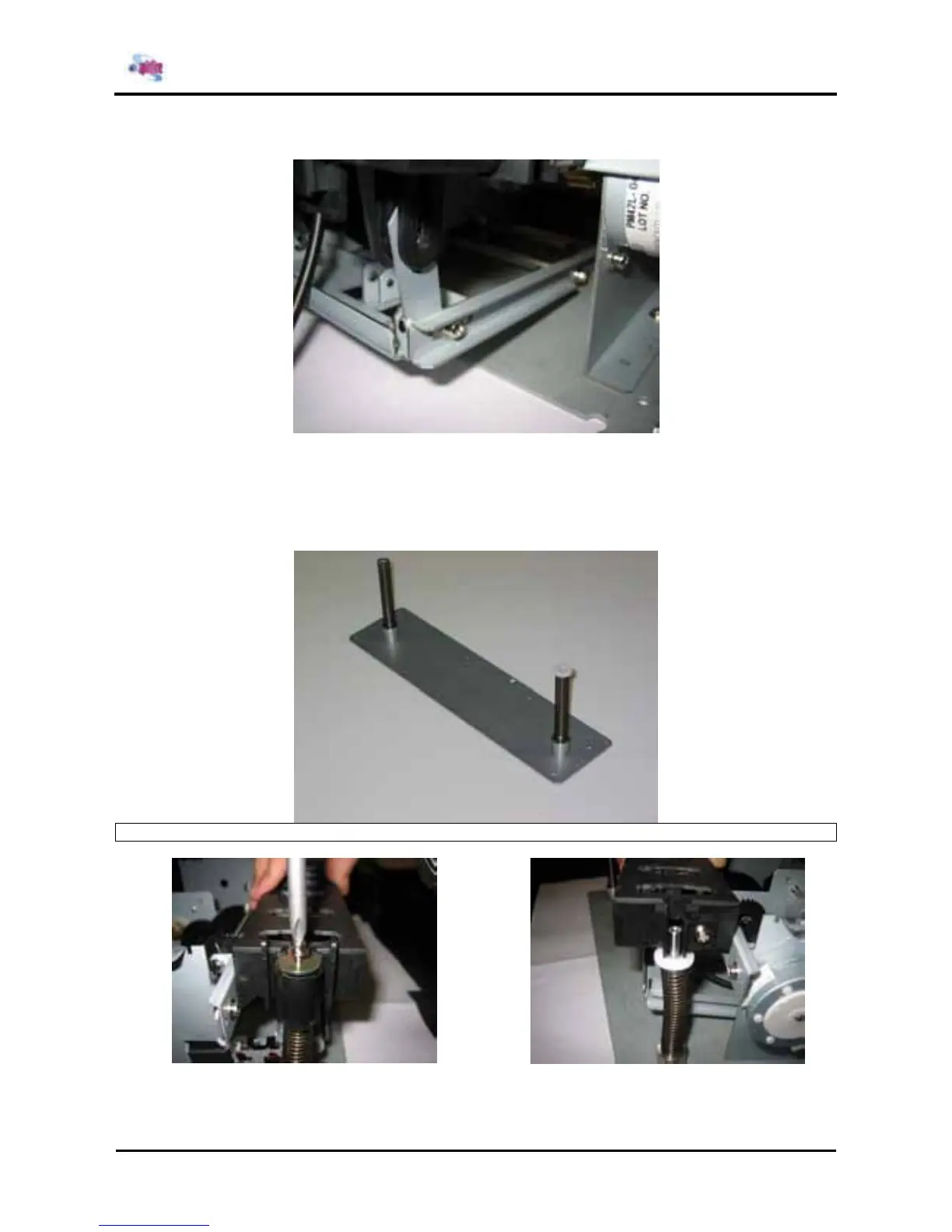

Step 2 : Attach the 2 side supports of the basic plate to the black plastic station
Step 3 : Place the plate with the axes in this position under the basic plate of the capping /
maintenance station and put the cap unit (black plastic part) over the axes. Make sure
that all hooked parts stay hooked. Press the spring and attach two screws (NS-05030061)
to the ends of the axes. At the left side (this means the side of the tin) a round piece is
needed between the screw and the axis.
Plate with Axes
To Next Page
