Spitfire – Maintenance Manual
82
AP-74096, Rev. 1.0, 09/06/05

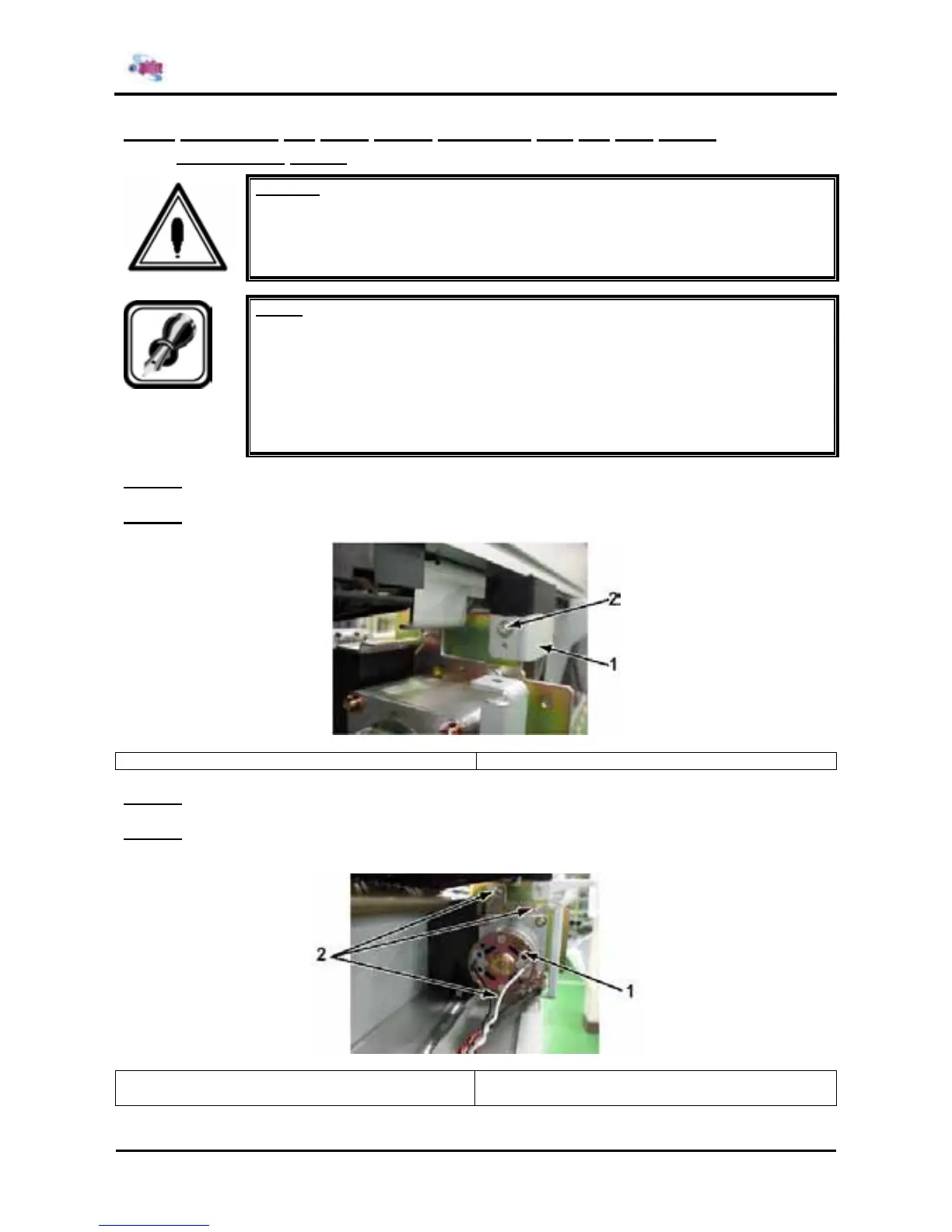

4.5.7. Replacing the lever motor assembly and the arm motor
installation
board
Caution :
The motor is hot after the product has been operated, so be careful not to burn yourself.
Notes :
¾ Remove following covers before replacing the lever motor.
Side cover R: refer to "Removing side cover R"
Side cover L: refer to "Removing side cover L"
Front cover: refer to "Removing the front cover"
Y rail cover: refer to "Removing the Y rail cover"
Media guide F: refer to "Removing media guide F"
Step 1 : Remove the lever motor assembly connector.
Step 2 : Remove the screw fixing the sensor installation board.
1 = Sensor installation board 2 = Screw (M3x8) fixing the sensor installation board
Step 3 : Remove the sensor installation board.
Step 4 : Remove the hexagon socket head screws with spring washers (3) fixing the CR motor assembly
to the arm motor installation board.
1 = Lever motor assembly 2 = Hexagon socket head screws with spring
washers (M4x10)
To Next Page
