Spitfire – Maintenance Manual
83
AP-74096, Rev. 1.0, 09/06/05
Step 5 : Replace the CR motor assembly.
Step 6 : Remove the hexagon socket head screws with spring washers (2) fixing the arm motor
installation board.

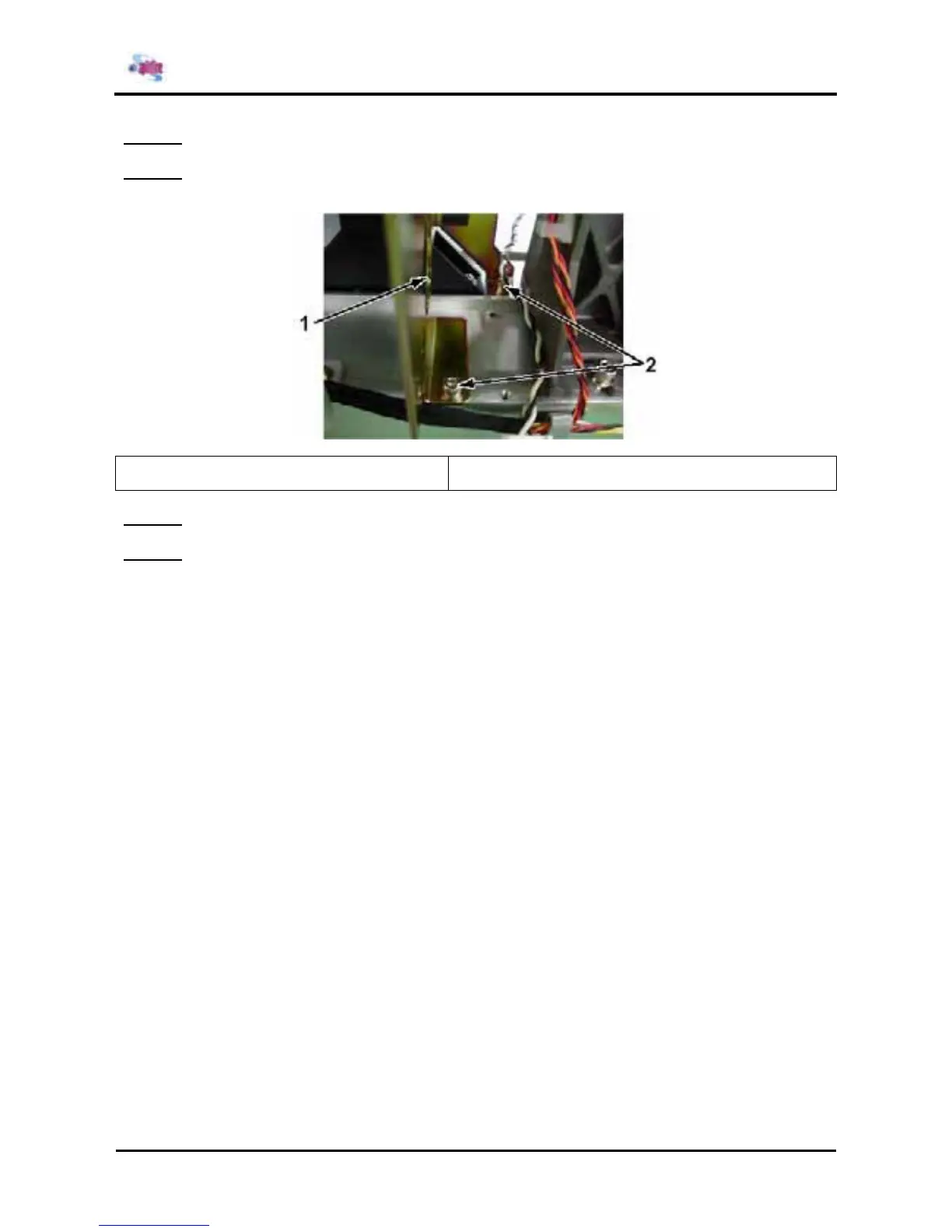

1 = Arm motor installation board 2 = Hexagon socket head screws with spring washers
(M4x10)
Step 7 : Replace the arm motor installation board.
Step 8 : Reinstall all parts in the opposite order of the removal procedure.
