MUTOH spitfire 90 - Replacing the Steel Bearer, Tube Guide, CR Tape Power Cable and Ink Tube

Spitfire – Maintenance Manual
100
AP-74096, Rev. 1.0, 09/06/05
4.6.7. Replacing the steel bearer, tube guide, CR tape power cable and
ink
tube
Notes :
¾ To replace the board and connect or disconnect the FFC type cable, you should
leave the plug disconnected from the power socket for a while. Otherwise, over-
current could be generated and damage board.
¾ Remove following covers before replacing the steel bearer, tube guide, CR tape
power cable, and ink tube.
 Side cover R: refer to "Removing side cover R"
 Side cover L: refer to "Removing side cover L"
 Front cover: refer to "Removing the front cover"
 Y rail cover: refer to "Removing the Y rail cover"

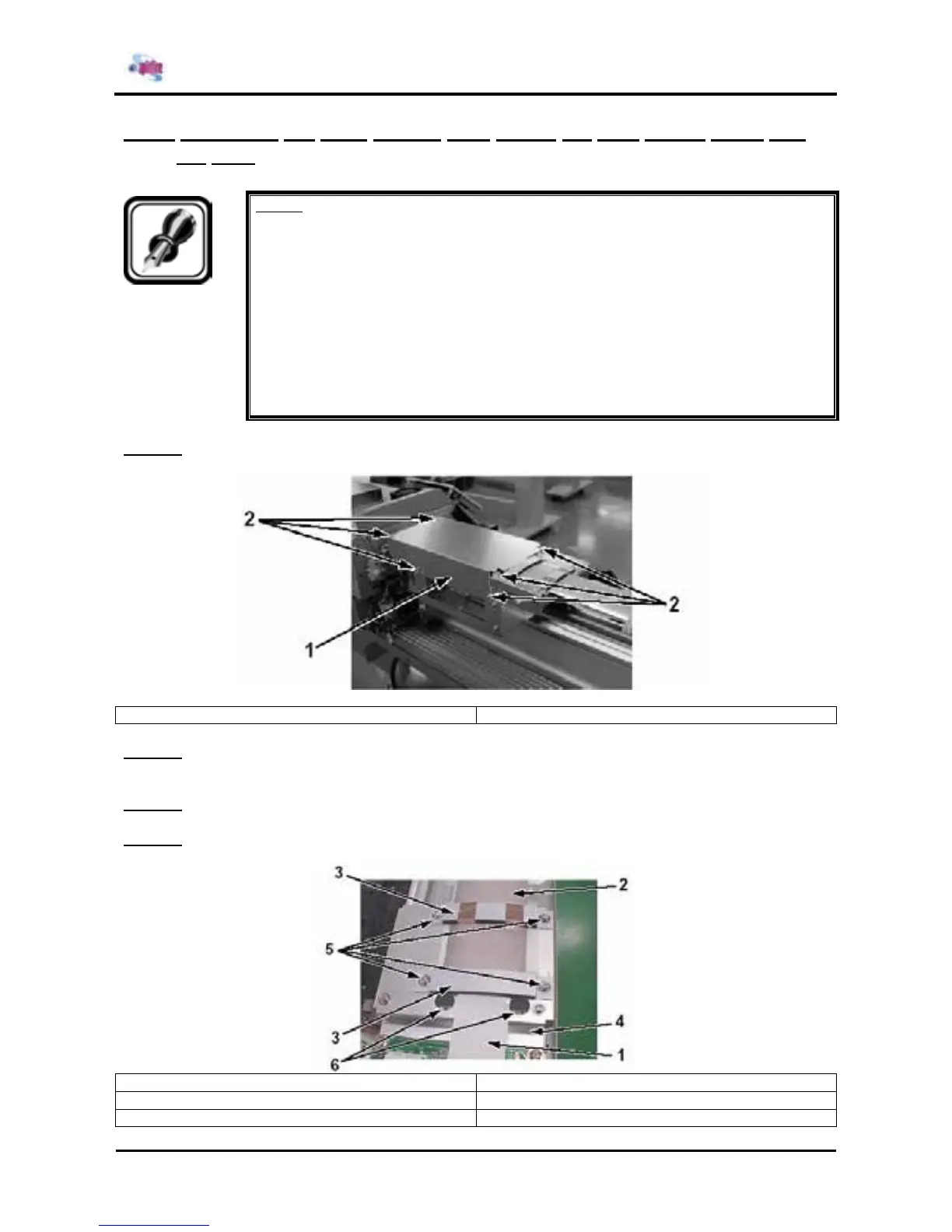

Step 1 : Remove the 8 screws fixing the CR cover.
1 = CR cover 2 = Screws (M3x8) fixing the CR cover
Step 2 : Remove the CR tape power cable connector from the CR board assembly and Mainboard
assembly.
Step 3 : Remove the 2 screws fixing cable push plate.
Step 4 : Remove the 2 screws fixing the tube clamp.
1 = CR tape power cable 2 = Steel bearer
3 = Cable push plate 4 = Screws fixing cable push plate (M3x8)
5 = Screws fixing tube clamp (M3x8)
