MUTOH spitfire 90 - Removing Side Cover R

Spitfire – Maintenance Manual
44
AP-74096, Rev. 1.0, 09/06/05
4.2.2. Removing side cover R

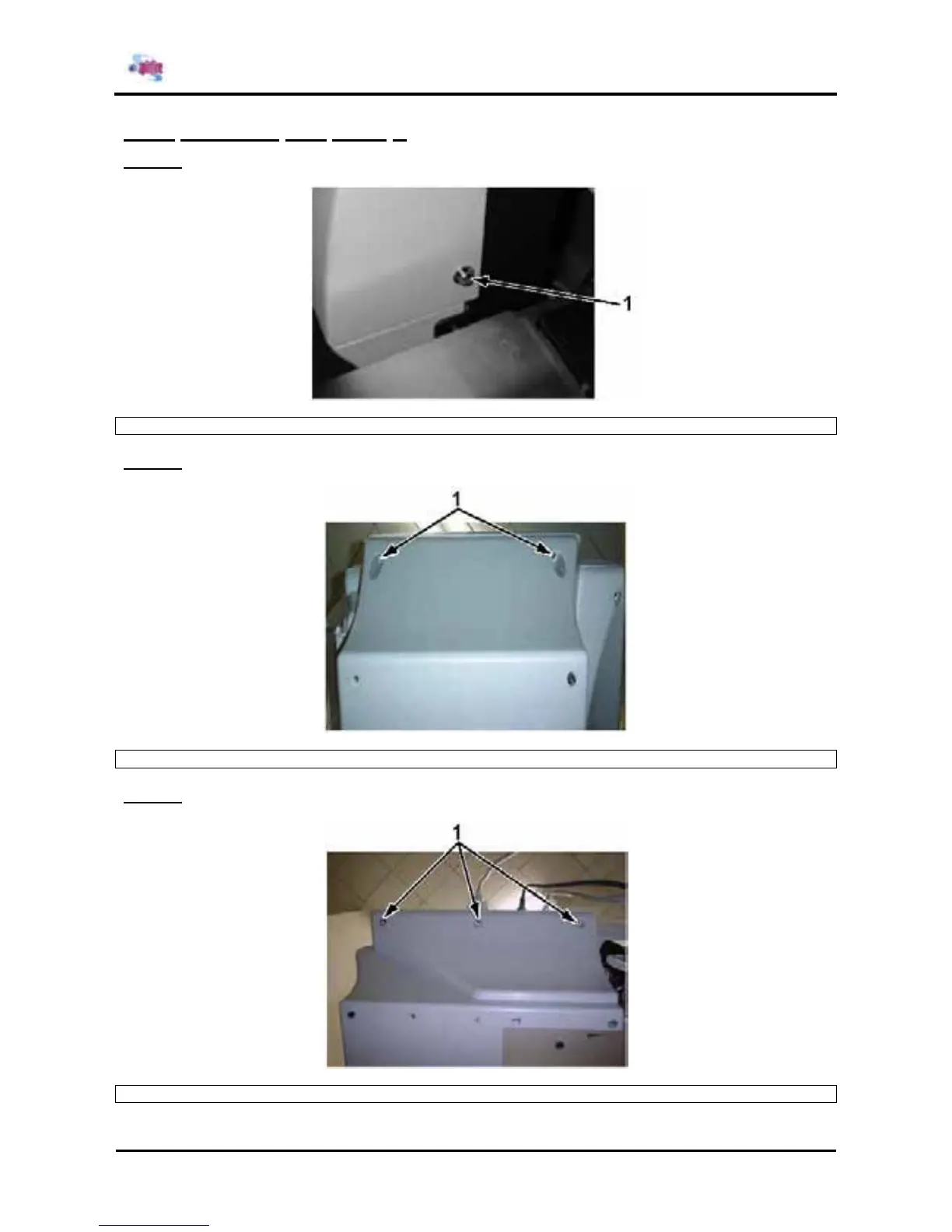

Step 1 : Remove the screw from the upper part of the side cover R.
1 = Screws (M4x12) on the upper part of the side cover R
Step 2 : Remove the 2 screws from the bottom of side cover R.
1 = Screws (M4x16) on the side of the bottom of side cover R
Step 3 : Remove the 3 screws from the back of the bottom of side cover R.
1 = Screws (M4x16) on the back of the bottom of side cover R
