Spitfire – Maintenance Manual
131
AP-74096, Rev. 1.0, 09/06/05
Step 4 : Replace the pump assembly.
Step 5 : Reinstall all parts in the opposite order of the removal procedure.
Notes :
¾ Follow the instructions in "Pump tubing layout for pump assembly" to connect the
tube.

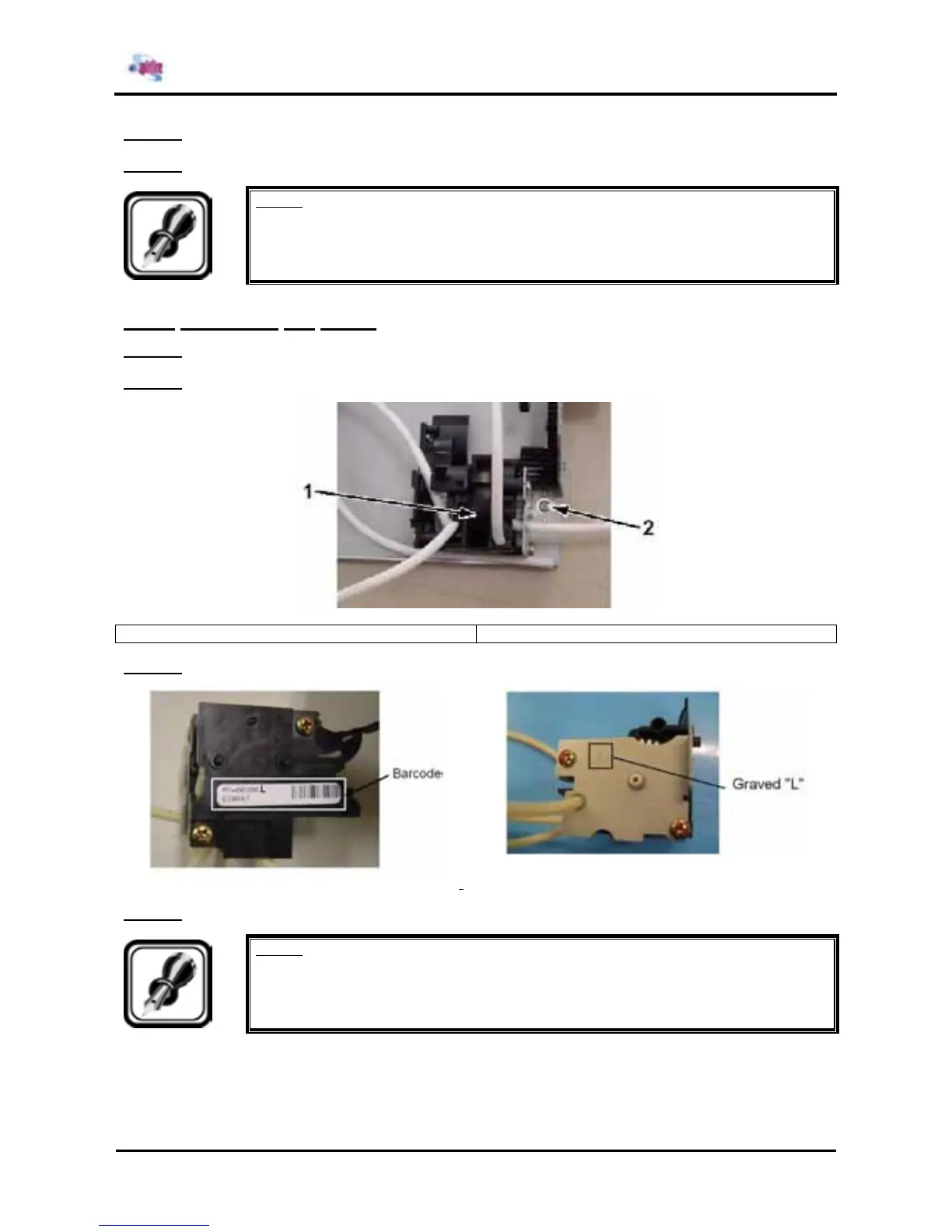

4.9.2. Replacing the pump
Step 1 : Follow the instructions in "Replacing the pump assembly " to remove the pump assembly.
Step 2 : Remove the screw fixing the pump assembly.
1 = Pump assembly 2 = Screws (M3x6) fixing the pump assembly
Step 3 : Replace the pump
Pump
MY-80300L
Step 4 : Reinstall all parts in the opposite order of the removal procedure.
Notes :
¾ Follow the instructions in "Pump tubing layout for pump assembly" to connect the
tube.
