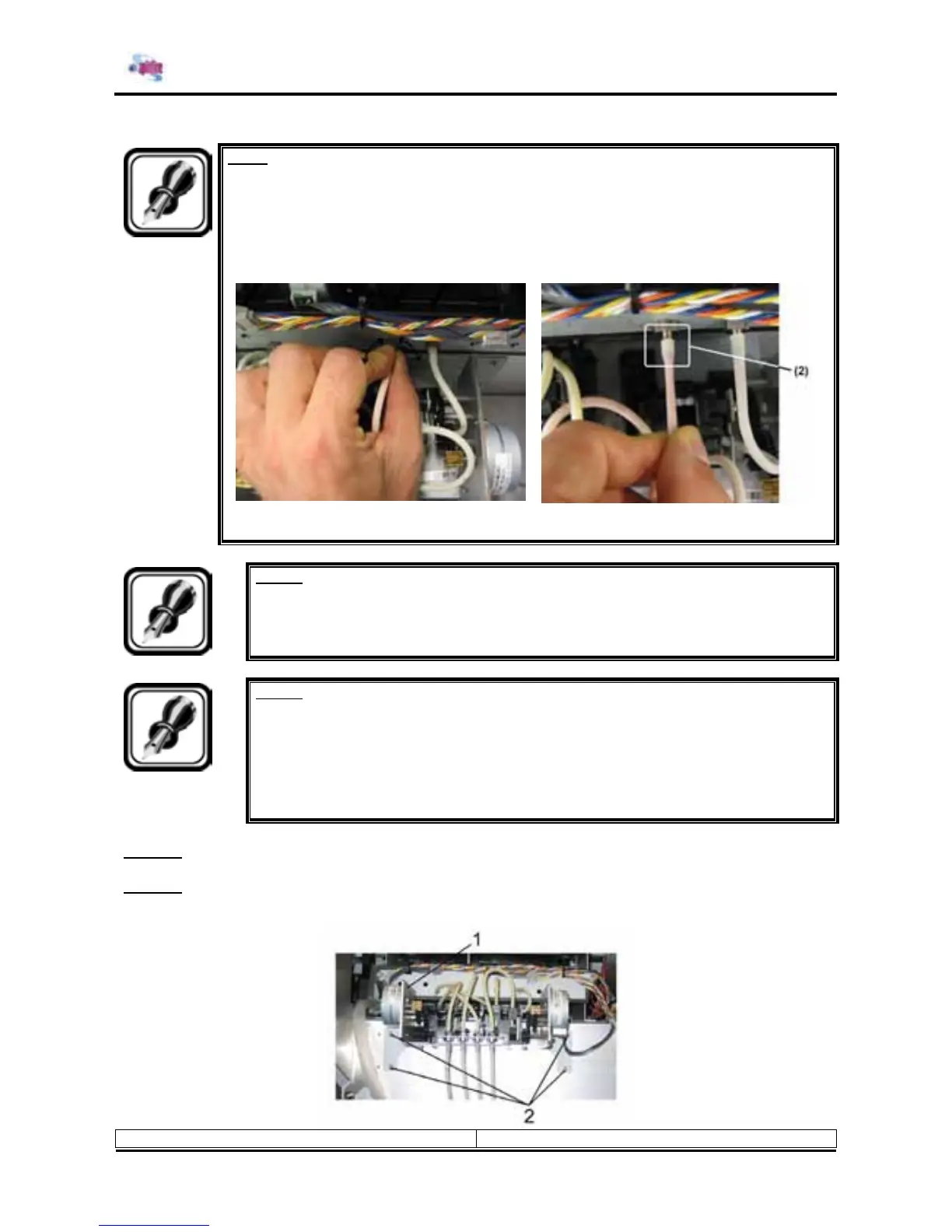

Spitfire – Maintenance Manual
130
AP-74096, Rev. 1.0, 09/06/05
Note :
Concerning the tube connections on the maintenance station :
¾ Be careful when removing the tubing from the nipple. Hold the tubing as close to the
nipple as possible. Turn the tubing left and right until it is coming off. Otherwise the
tubing will stretch and the inner coating layer will be damaged.
(1) Turn the tubing left right and pull gently (2) Stretched and damaged tubing
Notes :
¾ There is some remaining ink in the tubes. Be careful that the ink is not spilled from
the tube onto the printer or items close to the printer.
Notes :
Concerning the tube connections on the underside of the pump assy :
¾ When reconnecting the tubes going to the waste bottle, cut off approximately 5mm
of each tube before putting it on the nipple. This provides a good connection of the
tubes on the nipples.
Step 2 : Disconnect the electrical wires of the pump motors on the connectors.
Step 3 : Remove the 4 screws fixing the pump assembly
1 = Pump assembly 2 = Screws (M3x8) fixing the pump assembly
