MUTOH spitfire 90 - Replacing the T Fence (Timing Fence or Linear Y-Axis Encoder)

Spitfire – Maintenance Manual
96
AP-74096, Rev. 1.0, 09/06/05

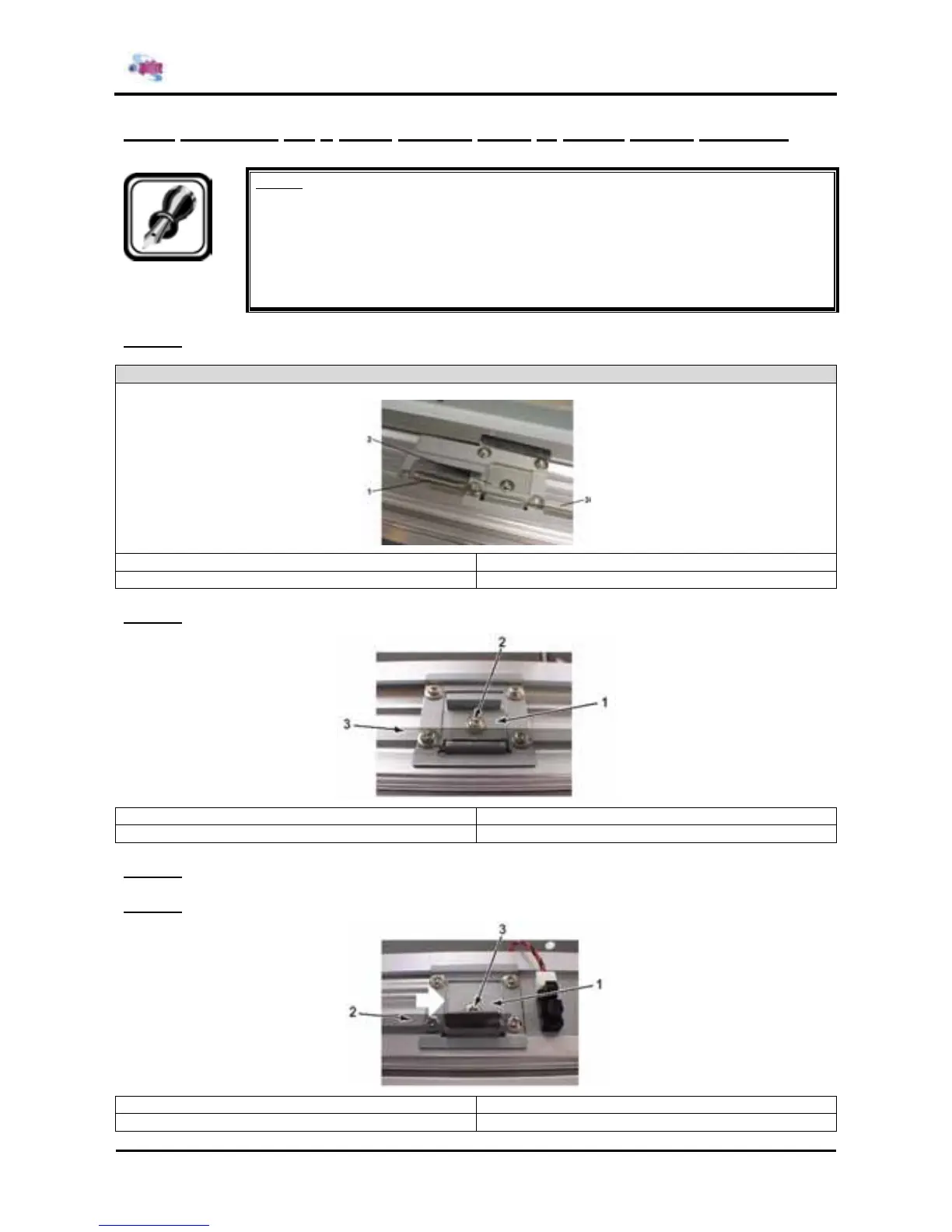

4.6.4. Replacing the T fence (Timing fence or Linear Y-Axis Encoder)
Notes :
¾ Remove following covers before replacing the T fence.
 Side cover R: refer to "Removing side cover R"
 Side cover L: refer to "Removing side cover L"
 Front cover: refer to "Removing the front cover"
 Y rail cover: refer to "Removing the Y rail cover"
Step 1 : Remove the T fence from the T fence spring hook on the side of the L side frame.
Spitfire
1 = T fence spring 2 = T fence spring hook
3 = T fence
Step 2 : Remove the screw fixing the T fence push plate.
1 = T fence push plate 2 = Screw (M3x6) fixing the T fence push plate
3 = T fence
Step 3 : Remove the T fence from the hook.
Step 4 : Remove the screw fixing the T fence stationary plate.
1 = T fence stationary plate 2 = T fence
3 = Screw (M3x6) fixing the T fence stationary plate
