MUTOH spitfire 90 - Replacing the CR Actuator; Replacing the CR Motor Assembly

Spitfire – Maintenance Manual
92
AP-74096, Rev. 1.0, 09/06/05

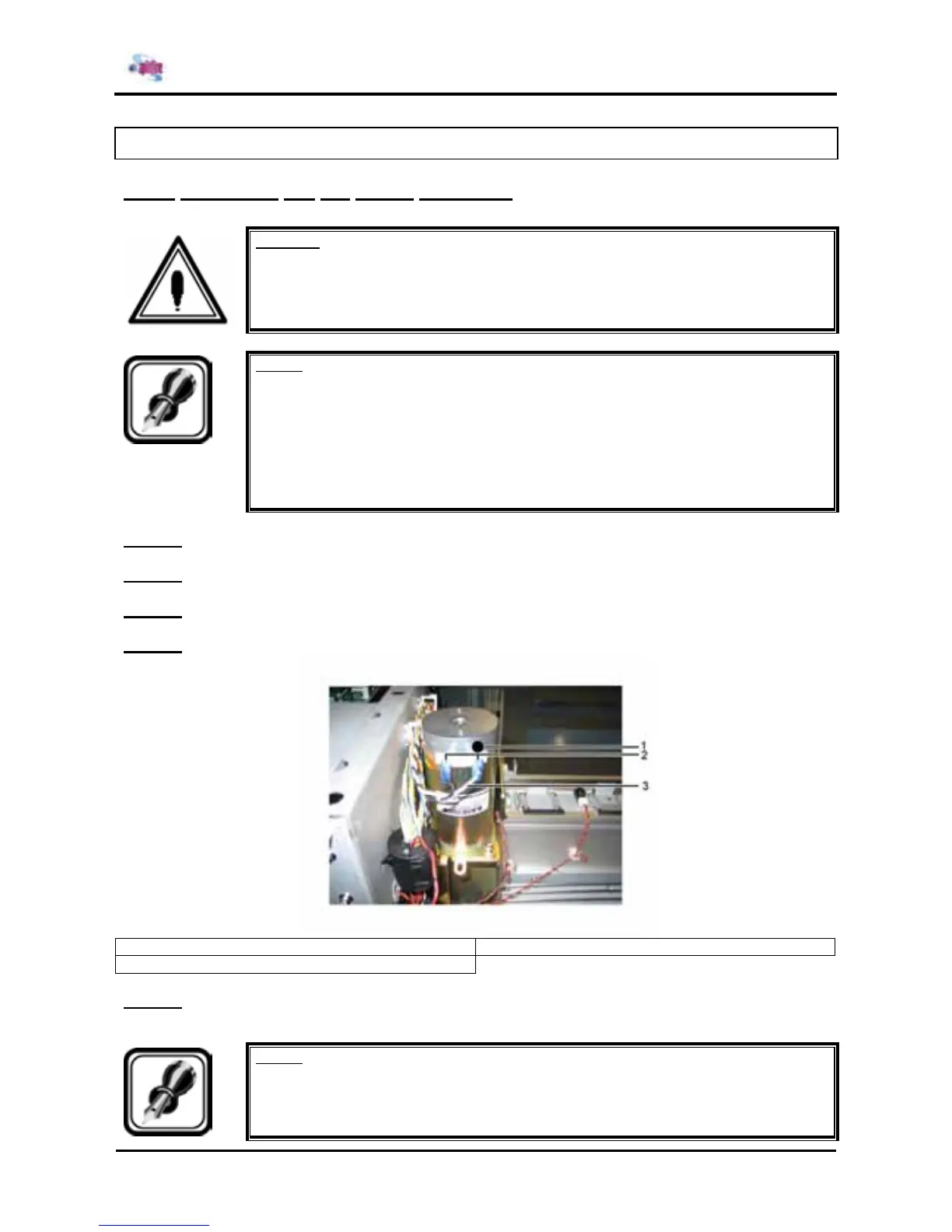

4.6. REPLACING THE CR ACTUATOR
4.6.1. Replacing the CR motor assembly
Caution :
The motor is hot after the product has been operated, so be careful not to burn yourself.
Notes :
¾ Remove following covers before replacing the CR motor assembly.
 Side cover R: refer to "Removing side cover R"
 Side cover L: refer to "Removing side cover L"
 Front cover: refer to "Removing the front cover"
 Y rail cover: refer to "Removing the Y rail cover"
 Media guide F: refer to "Removing media guide F"
Step 1 : Remove the CR motor cable assembly connector from the CR motor assembly.
Step 2 : Remove the 4 hexagon socket head cap screws fixing the CR motor assembly.
Step 3 : Replace the CR motor assembly.
Step 4 : Connect the white wire to the connector indicated whit the red label.
1 = Red label 2 = Connector
3 = White wire
Step 5 : Adjust the tension of the CR deceleration belt according to "CR deceleration belt tension
adjustment".
Notes :
¾ When installing the CR motor cable assembly connector, install the white cable on
the right side as shown in the previous figure.
