Spitfire – Maintenance Manual
76
AP-74096, Rev. 1.0, 09/06/05

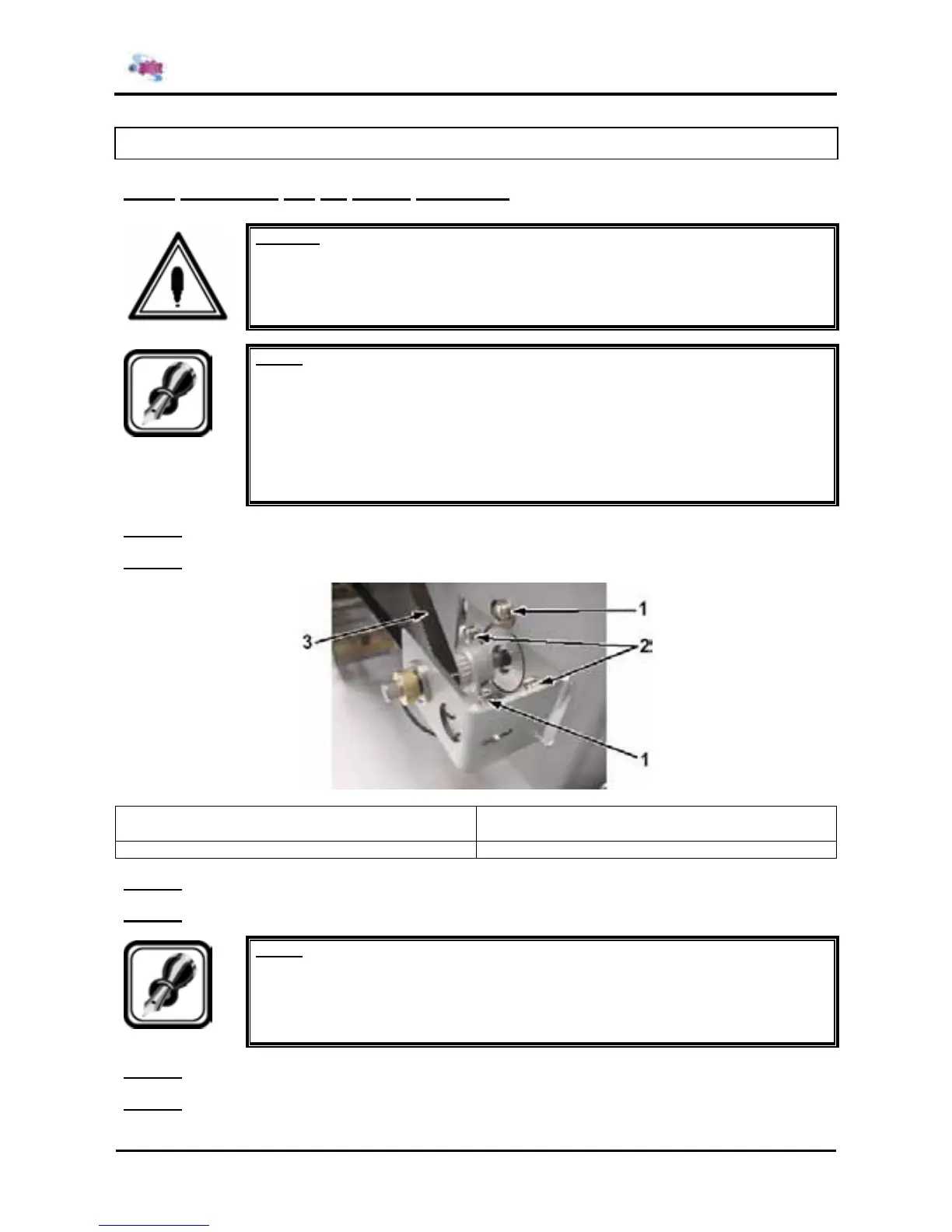

4.5. REPLACING THE PF ACTUATOR
4.5.1. Replacing the PF motor assembly
Caution :
The motor is hot after the product has been operated, so be careful not to burn yourself.
Notes :
¾ Remove following covers before replacing the parts in the PF motor assembly.
 Side cover R: refer to "Removing side cover R"
 Side cover L: refer to "Removing side cover L"
 Front cover: refer to "Removing the front cover"
 Y rail cover: refer to "Removing the Y rail cover"
 Media guide F: refer to "Removing media guide F"
Step 1 : Remove the PF motor assembly connector from the PF motor cable assembly.
Step 2 : Remove the 2 screws fixing the X motor installation board to the side of the L side frame.
1 = Screws (M4x10) fixing the X motor installation
board to the side of the L side frame.
2 = Screws (M4x10) fixing the PF motor assembly to
the X motor installation board.
3 = PF deceleration belt
Step 3 : Remove the 2 screws fixing the PF motor assembly to the X motor installation board.
Step 4 : Replace the PF motor assembly.
Notes :
¾ When installing the PF motor assembly, move the PF deceleration pulley manually
and confirm that the PF deceleration belt is set equally in the center of the PF motor
assembly pulley.
Step 5 : Reinstall all parts in the opposite order of the removal procedure.
Step 6 : Adjust the tension of the PF deceleration belt according to "PF deceleration belt tension
adjustment".
