Spitfire – Maintenance Manual
84
AP-74096, Rev. 1.0, 09/06/05

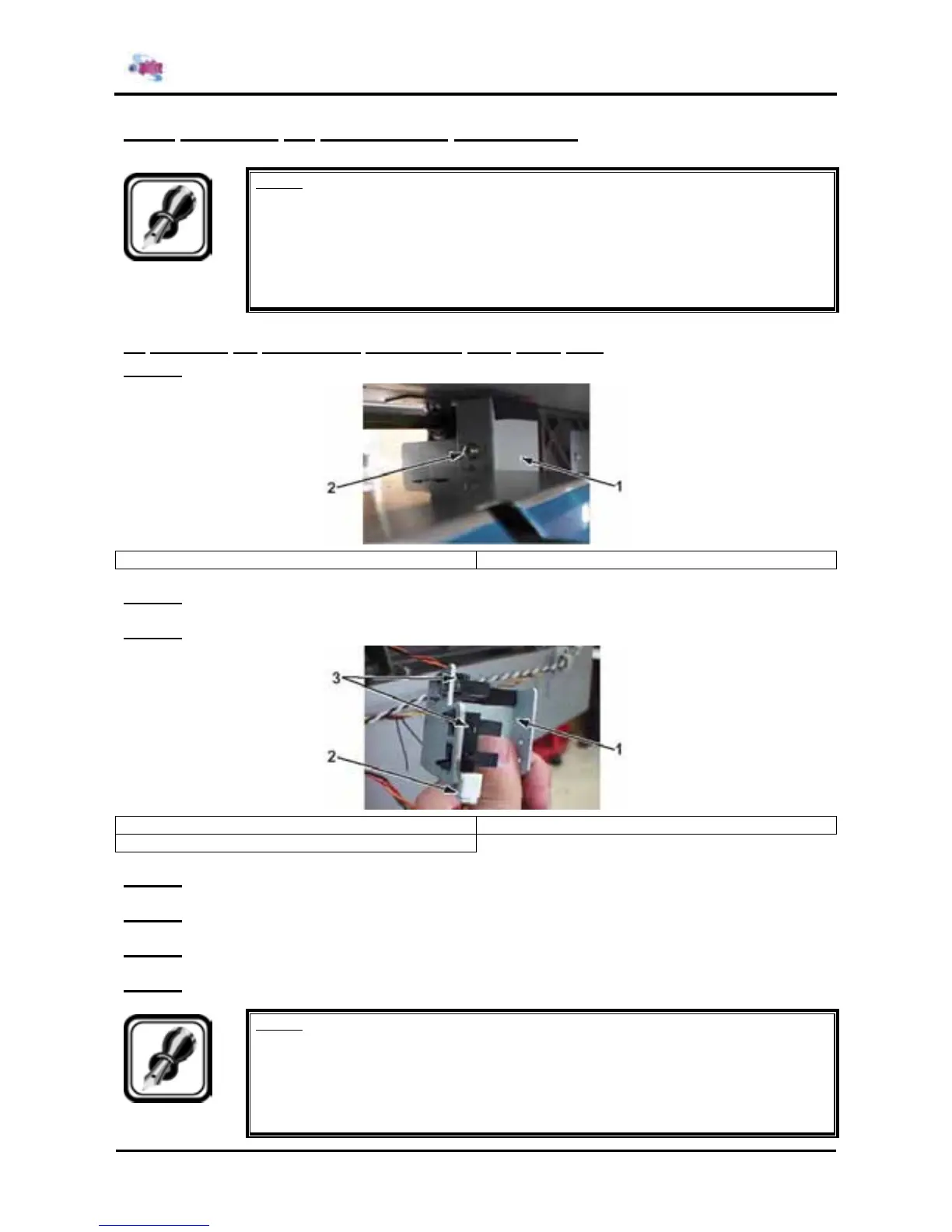

4.5.8. Replacing the transmission photosensor
Notes :
¾ Remove following covers before replacing the transmission photosensor.
Side cover R: refer to "Removing side cover R"
Side cover L: refer to "Removing side cover L"
Front cover: refer to "Removing the front cover"
Y rail cover: refer to "Removing the Y rail cover"
(1) Replacing the transmission photosensor (lever motor side)
Step 1 : Remove the screw fixing the sensor installation board.
1 = Sensor installation board 2 = Screw (M3x8) fixing the sensor installation board
Step 2 : Remove the sensor installation board.
Step 3 : Remove the transmission photosensor from the sensor installation board.
1 = Sensor installation board 2 = Connector
3 = Transmission photosensor
Step 4 : Remove the connector from the transmission photosensor.
Step 5 : Remove the transmission photosensor.
Step 6 : Apply the screw lock to the tab portions of the transmission photosensors to be installed.
Step 7 : Reinstall all parts in the opposite order of the removal procedure.
Notes :
¾ When installing the U/D cable assembly onto the transmission photosensor, be
careful not to confuse the connectors.
Lever up cable assembly (white): front
Lever down cable assembly (blue): rear
