Spitfire – Maintenance Manual
85
AP-74096, Rev. 1.0, 09/06/05

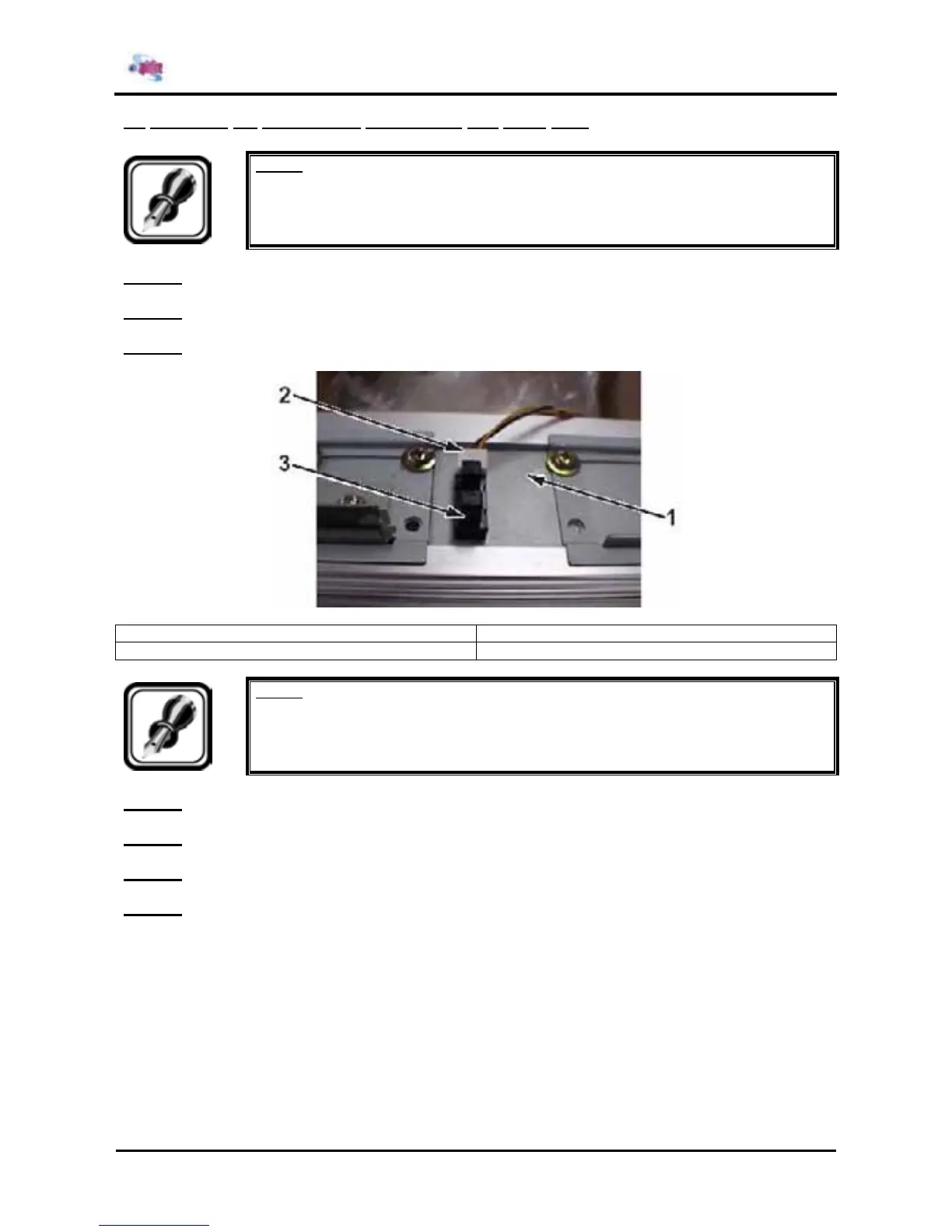

(2) Replacing the transmission photosensor (CR origin side)
Notes :
¾ Refer to ‘Head Lock Menu’
Step 1 : Unlock the head.
Step 2 : Move the carriage from the capping position to the left.
Step 3 : Remove the transmission photosensor from the ORG sensor installation board.
1 = ORG sensor installation board 2 = Connector
3 = Transmission photosensor
Notes :
¾ The ORG sensor installation board has been adjusted at the origin in factory. Do
not loosen the fixed screws.
Step 4 : Remove the connector from the transmission photosensor.
Step 5 : Remove the transmission photosensor.
Step 6 : Apply the screw lock to the tab portions of the transmission photosensors to be installed.
Step 7 : Reinstall all parts in the opposite order of the removal procedure.
